Professional Audio

SION 302 USB

50SIO009
Bluetooth
USB/SD

DJ mixer 3 channels.

SION 302 USB is a mixer in small format with all the controls and functions that every DJ need. It has an MP3 player with USB, SD and Bluetooth inputs.

It has 3 channels and the possibility to connect up to 8 sources (3 lines, 3 phonos, microphone and MP3 player). It has balanced output (Master), and Rec and Booth outputs.

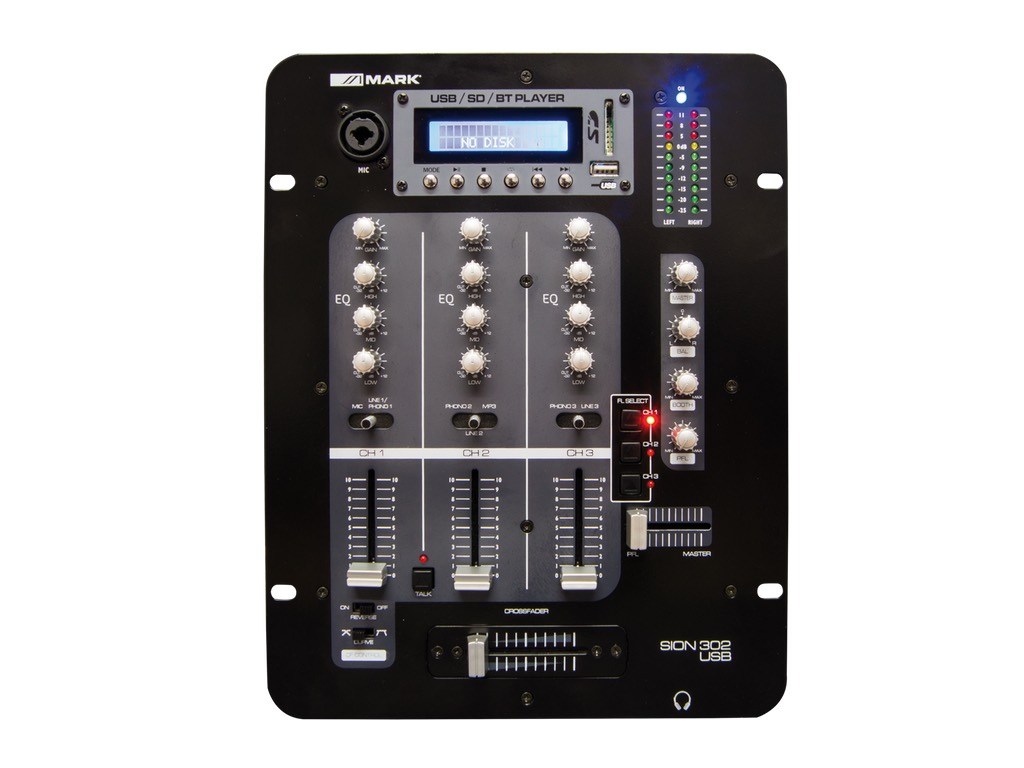

The front panel has a 20 LED vumeter, 3-band equalizer, curve crossfader control and knobs to control the balance of the master level, master level and booth level, as well as fine level adjustment of headphones.

Frequency response:  20Hz - 20kHz   -/+2dB
Distortion:  <0.02dB
S/N:              >85dB
Headphone impedance: 16 Ohm
Inputs:        Input 1: Line and Phono (1xRCA)
                    Input 2: Line and Phono (2xRCA)
                    Input 3: Line and Phono (2xRCA)
                    XLR 3 for microphone
                    MP3 player (USB, SD, Bluetooth)

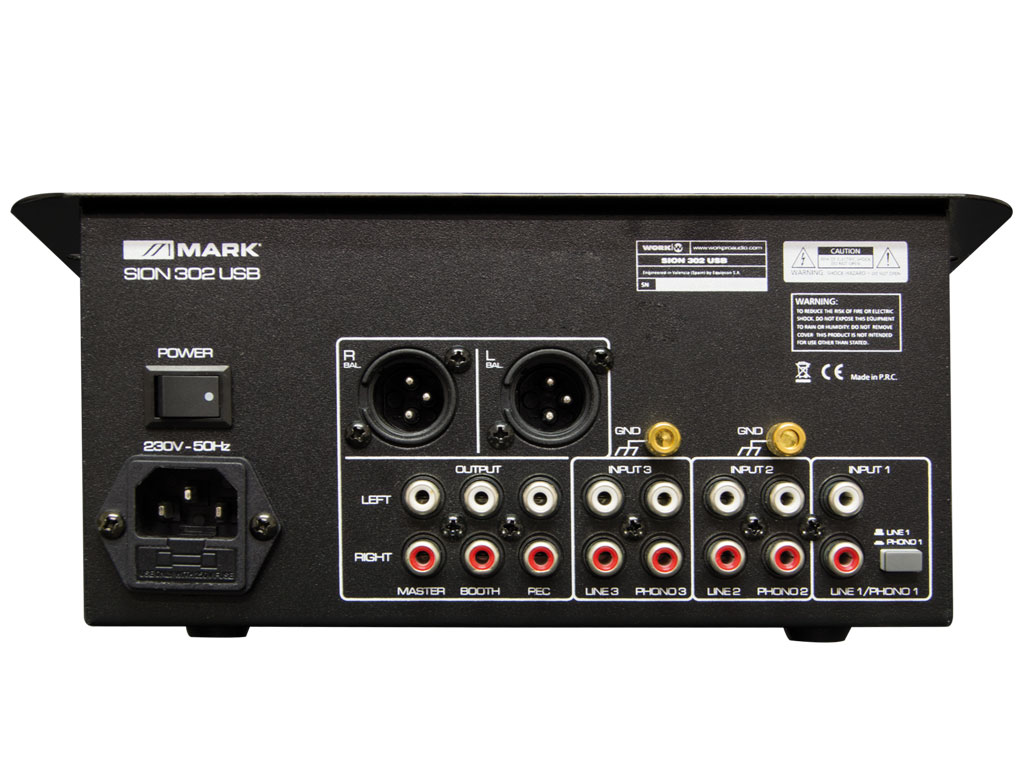

Outputs:    Rec, Booth and Master (3xRCA)
                    Balanced output (2xXLR)(Master)
Power:        14.5 W
Dimensions (WxHxD): 245 x 100 x 315 mm
Weight:     3 kg






Length(m)Width(m)Height(m)Weight(kg)
Product0.320.250.103.00
Box0.280.360.173.58
Master Carton0.380.580.3715.36
Dj mixer with USB, Bluetooth and SD card slot, LCD Display and mp3 controls buttons.
Super smooth dual rail "ultraglide" crossfader with up to 500.000 life cycle, for channels 2 and 3.
Three dual input stereo channels with gain and 3 band EQ (max. att -32dB).
One microphone input (XLR 3).
Manual talkover function.
Crossfader reverse and curve function.
PFL function with master/pfl mix option.
Peak-hold level meter with dedicated PFL vumeter.
Master, Booth, Record and XLR balanced output.
Gold-plated RCA sockets for excellent audio quality.
Super-rugged construction ensures long life.

  Manual
Download
