To be discontinued

SIDIUS LED 3610 Z

28LED361

Moving head. 36 LEDs RGBW (4 in 1) 10W each one. 14 DMX channles. Beam angle 15º - 60º

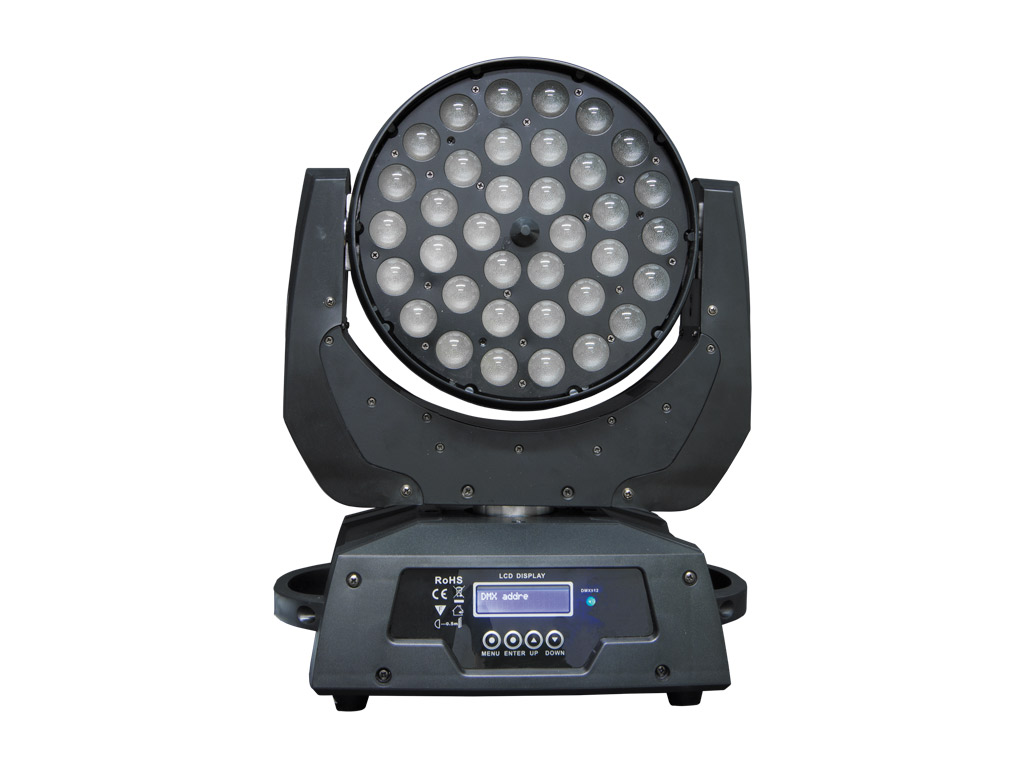

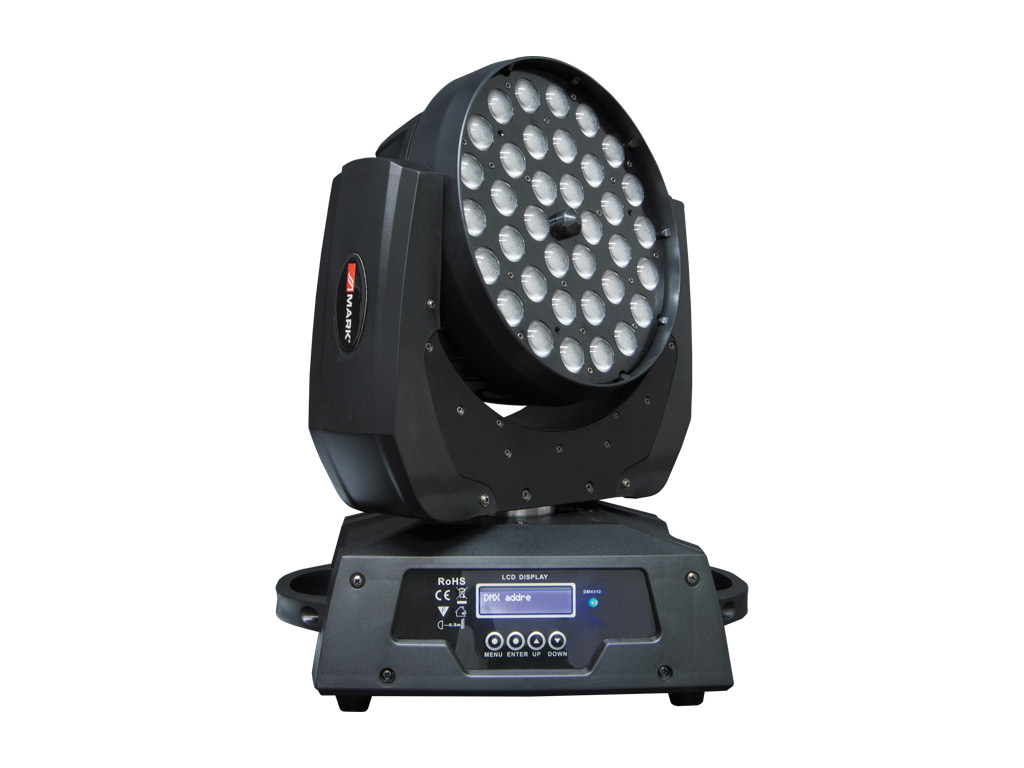

SIDIUS LED 3610 Z is a moving head that includes 36x10W RGBW 4 in 1 LEDs. This brilliant LED allows to obtain a rich colour spectrum mixing the R, G, B, W.

Its high quality motors offer smooth movements in 8 and 16bit with a wide displacement. The configuration interface has a display with all information and buttons to navigate through menus, selecting parameters such as: Pan/Tilt reverse, pan angle, manual operation or reset function.

The device includes DMX mode (14 channels) with basic movements, basic colour dimmer (with mixing function), focus and strobe function.

Power Supply
100-240 V 50/60 Hz
Consumption
380 W
Light source
36x10W RGBW 4 in1 LEDs
Beam Angle
15º - 60º
Dimmer
0-100 Linear Adjustment
Pan
540º or 630º (selectable)  8-16 bit
Tilt
270º  8-16 bit
DMX Channels
14 channels
Modes
DMX 512 /Audio/Auto/Manual/Master-Slave
Input connections
3 pin XLR
Output connections
3 pin XLR
IP range
20
Dimensions (WxHxD)
229 x 330 x 437 mm
Weight
11 Kg

  • Moving head which includes 36x10W RGBW 4in1 LEDs.
  • LCD Display and interface for setting functions.
  • Pan angle selectable (540º or 630º).
  • Focus function.
  • 14 DMX channels.
  • Manual operation.
  • Pan/Tilt Reverse.
  • 2 fixation ways: rigging or flat surface.
  • Rack not included.
  Manual
Download
