SCANPLAYER II DMX

55SCA001
DMX

DMX controller.

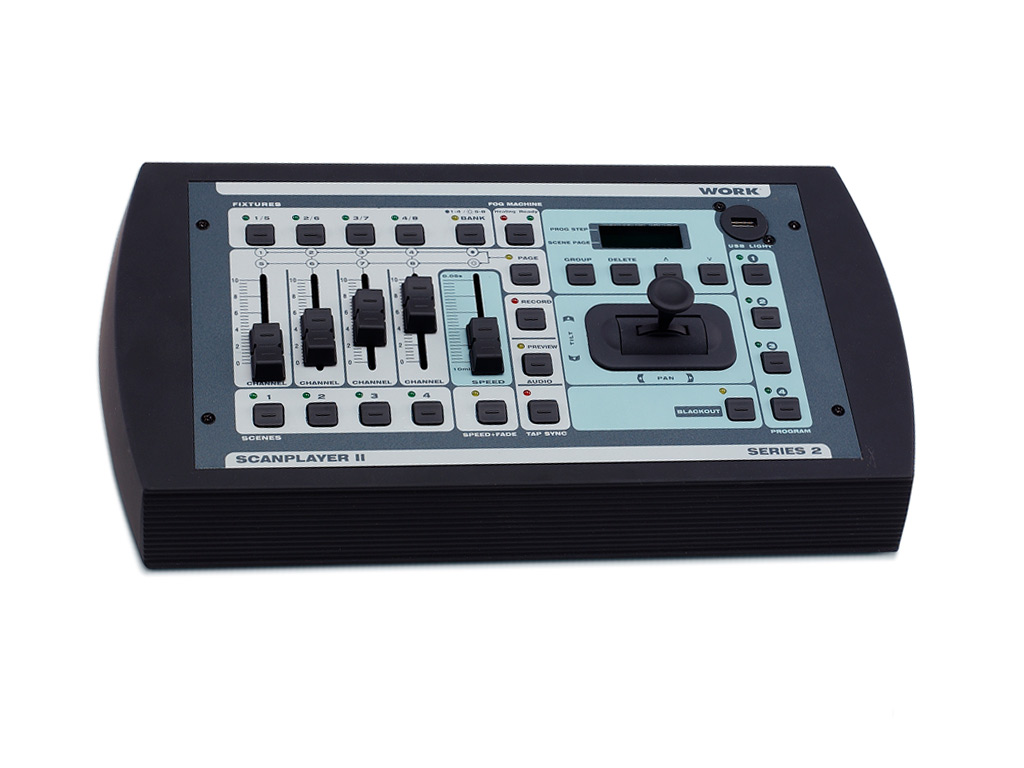

SCANPLAYER II DMX is a compact lighting console for intelligent lighting featuring 64 DMX channels (up to 8 robots of 8 channels each).

Thanks to the ergonomic joystick, channels are patched to a unique control for maximum convenience. Up to 96 scenes and 4 programs can be programmed to patch connected robots and use parameters such as fade time, speed o Tap Sync (chase is executed using manual pulse). Any data can be transferred or uploaded by the console, using the RS 232 port communication or the slot for a 32 MB compact flash card.


64 DMX control channels (8 robots of 8 channels).
96 programming scenes.
16/8 bits resolution for PAN/TILT.
Slot for a 32 MB compact flash card.

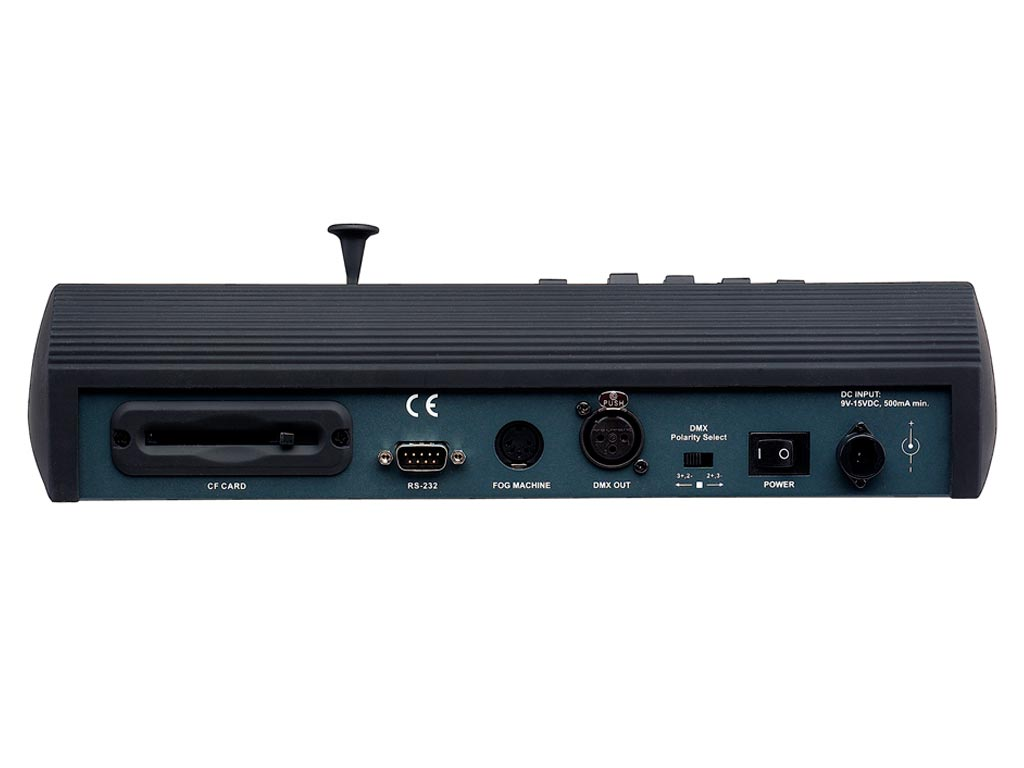

RS 232 port communication.
Blackout function.
Memory against current failures.
Rubber shock protection.
Main supply: 9-15 V DC, 500 mA. (power supply unit included)
Dimensions (W x H x D): 360 x 193 x 74 mm.
Weight: 2.2 kg.
  Manual
Download
