Audio Installation

SC 30 AH

82MEG039
IP66

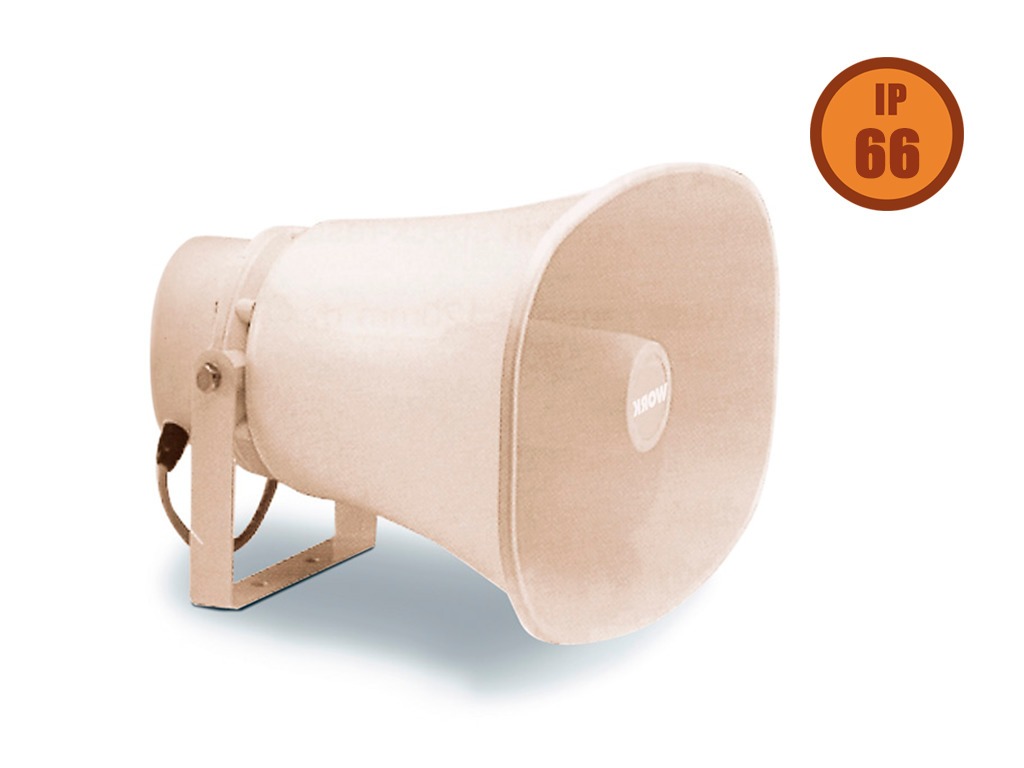

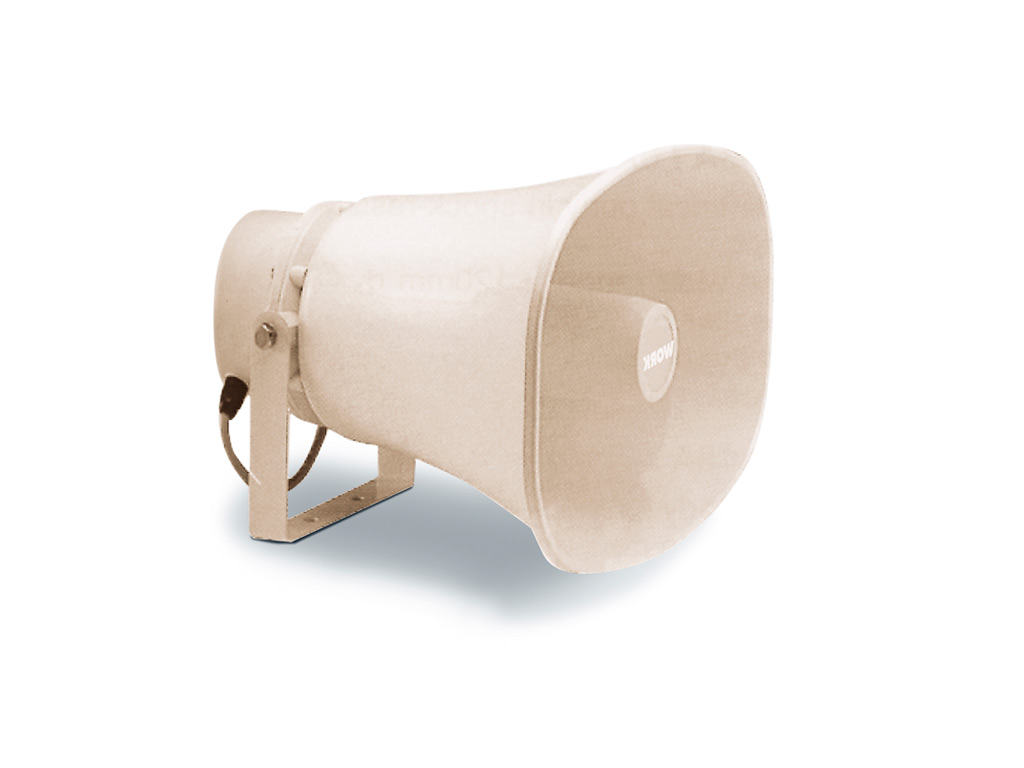

Horn speaker. 30W with 100V line tranformer



Type: Horn speaker.
Power taps (100 V line): 30 W (333 ohm) / 15 W (666 ohm) / 7.5 W (1k3 ohm) / 3 W (3k3 ohm) / 1 W (10 kohm).
Power taps (70 V line): 15 W (326 ohm) / 7,5 W (653 ohm) / 3,75 W (1k3 ohm) / 1,5 W (3k2 ohm) / 0,5 W (9k8 ohm).
Power taps (25 V line): 30 W (83 ohm).
Frequency response: 250 Hz - 16 kHz.
Sensitivity (1W/1m): 93 dB.
Max. SPL.: 107 dB.
IP range: IP 66.
RAL colour code: RAL 1002.
Material (housing): ABS plastic.
Dimensions: Ø 287 x 257,5 mm.
Weight: 2 kg.
