Audio Installation

SC 10 AH

82MEG037
IP66
L100V
L70V

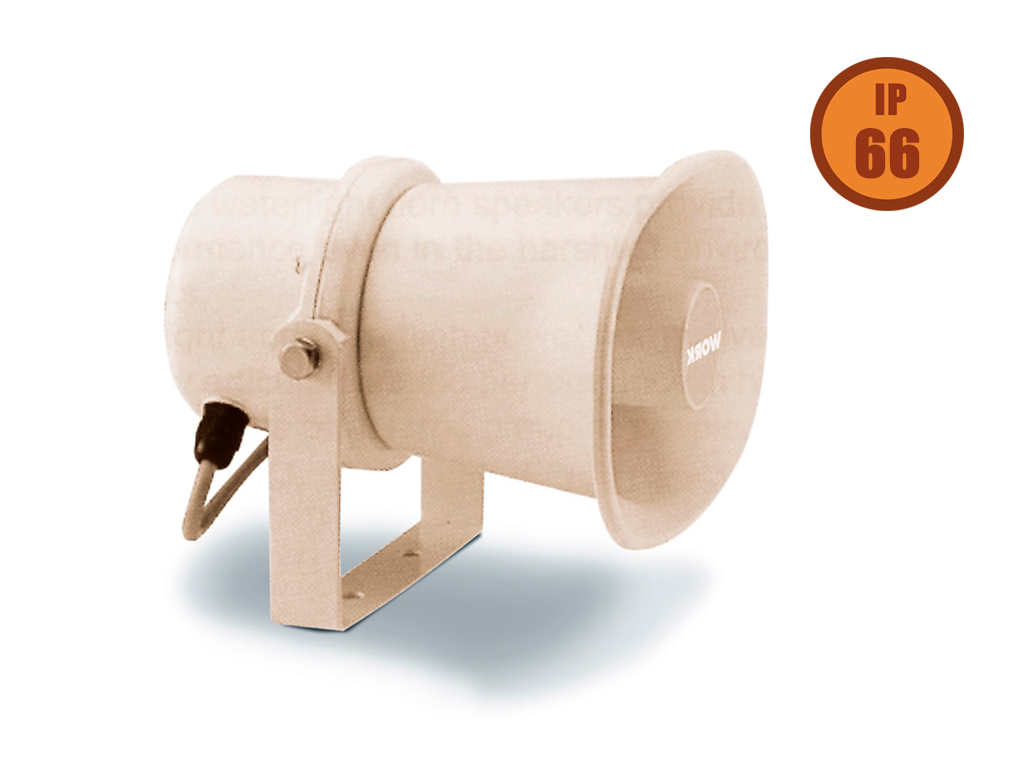

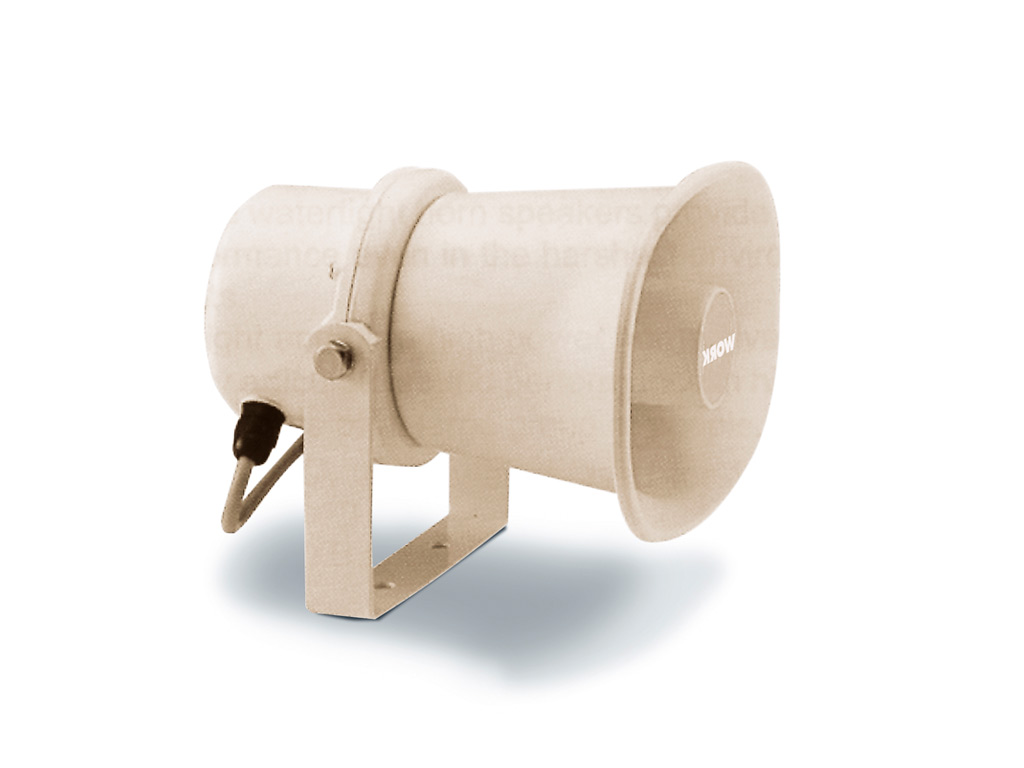

Horn Speaker. 10W with 100V line transformer



Type: Horn speaker.
Power taps (100 V line): 10 W (1 kohm) / 5 W (2 kohm) / 3 W (3k3 ohm) / 1 W (10 kohm).
Power taps (70 V line): 5 W (980 ohm) / 2.5 W (1k9 ohm) / 1.5 W (3k2 ohm) / 0.5 W (9k8 ohm).
Power taps (25 V line): 10 W (250 ohm).
Frequency response: 315 Hz - 12k5 Hz.
Sensitivity (1W/1m): 93 dB.
Max. SPL.: 103 dB.
IP range: IP 66.
RAL colour code: RAL 1002.
Material (housing): ABS plastic.
Dimensions: Ø 176 x 179 mm.
Weight: 1 kg.
