Racks
Cable and Accessories

RMI 12 PRO

64RMI012
12 HU

Metallic rack for installation. 12 HU 19''

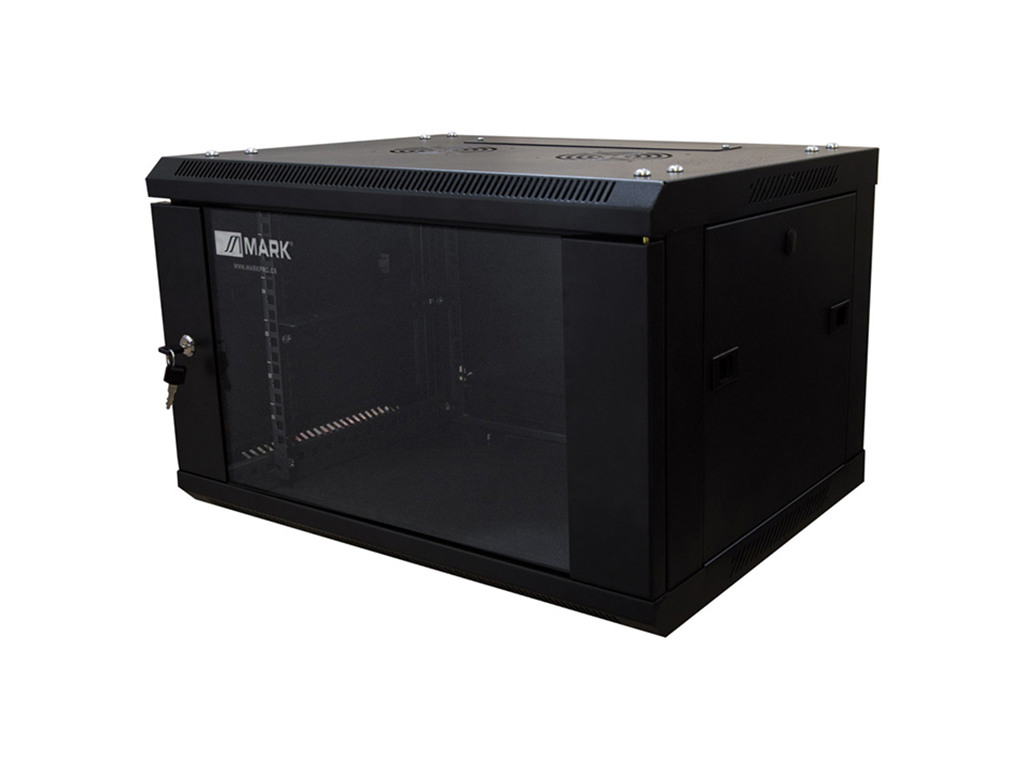

RMI 12 PRO is a 12U wall mount rack 19''. Its wide range of  features with outstanding value, its static load capacity of 60kg and its cold-rolled steel structure make it suitable for professional use.

Name
 Quantity
 Materials
Top cover
 1
 1.0mm cold-rolled steel
Bottom plate
 1
 1.0mm cold-rolled steel
Frames
 2
 1.0mm cold-rolled steel

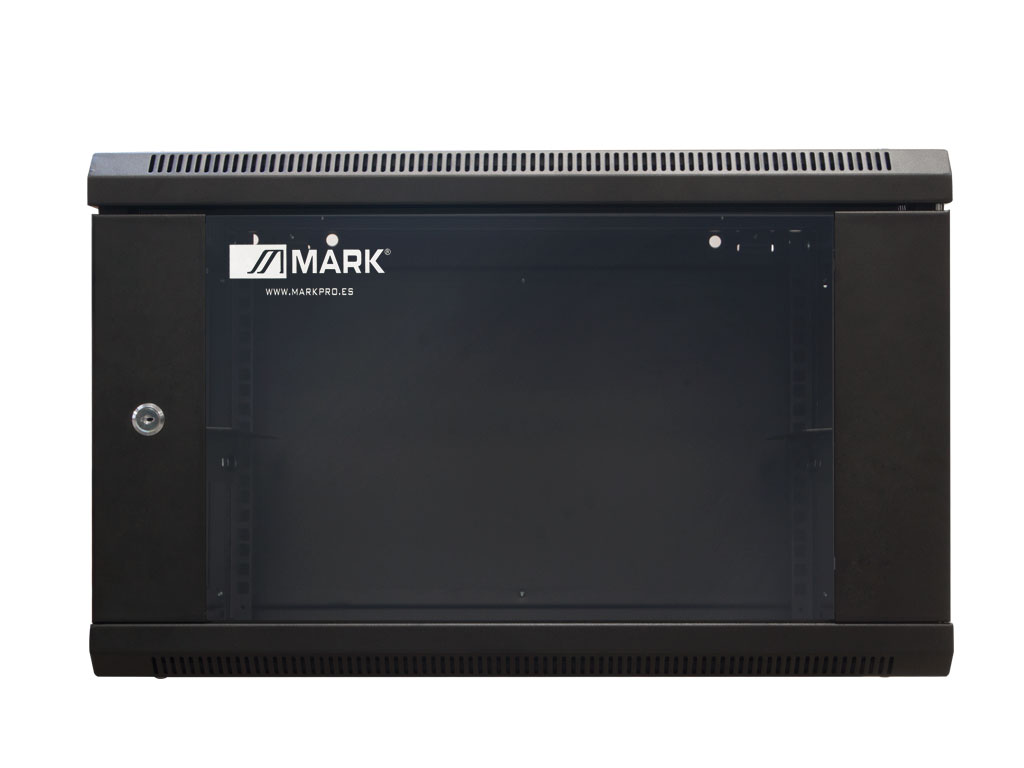

Front door
 1
 5mm tempered glass
1.2mm cold-rolled steel

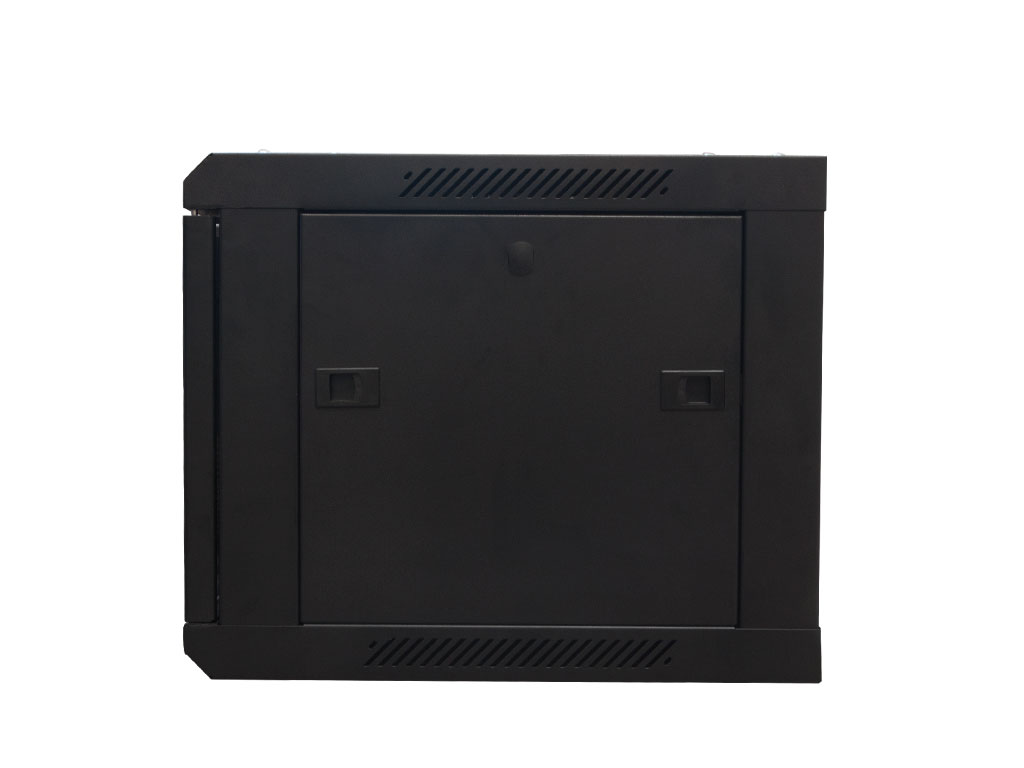

Side panels
 2
 1.2mm cold-rolled steel
Horizontal brackets
 4
 1.2mm cold-rolled steel
L-shaped panels
 2
 1.2mm cold-rolled steel

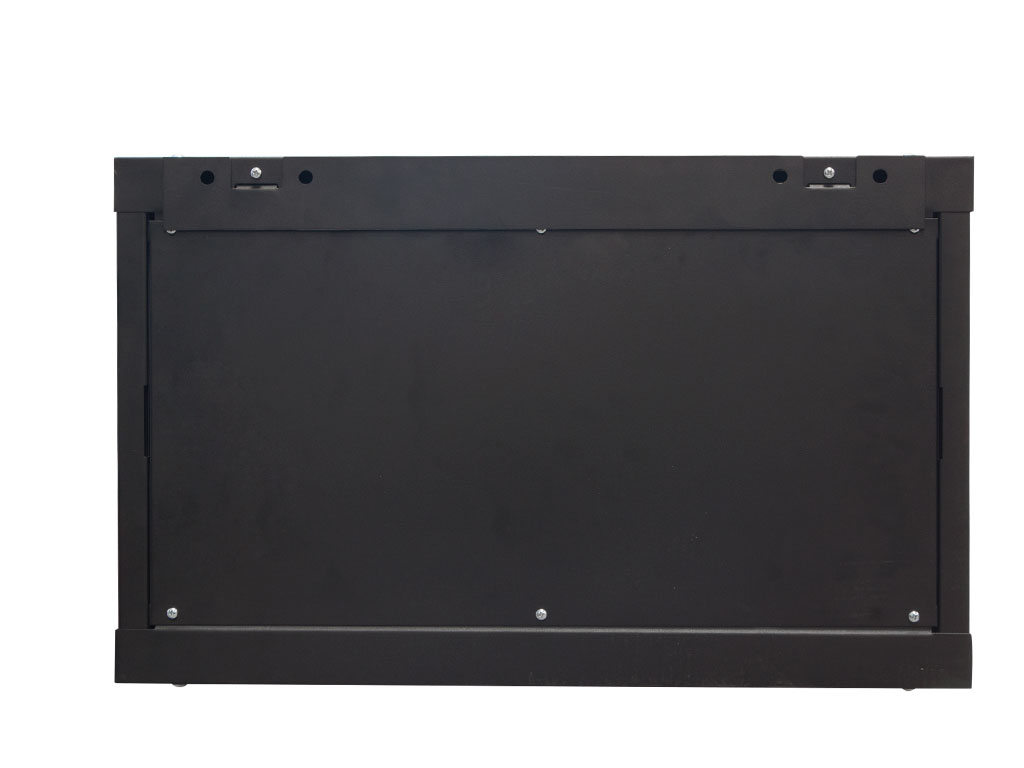

Back panels
 1
 1.0mm cold-rolled steel
Wall hanging panels
 1
 1.2mm cold-rolled steel
Profile rails
 4
 1.5mm cold-rolled steel
Cage nuts
 20


Features
 RMI 12 PRO
Dimensions (W x D x H)
 600 x 450 x 636 (mm)
Capacity
 12U 19''
Top cover perforated for
 2 fans (not included)
Weight
 21 kg
Static load capacity
 60 kg
Colour
 Black (RAL 9005)
Length(m)Width(m)Height(m)Weight(kg)
Product0.450.600.6421.00
Box0.660.620.0721.83
- 12U wall mount rack 19''.
- Usable depth (from front rack frame to back panel) 330 mm.
- Perforated top cover for 2 fans.
- Made of cold-rolled steel 1.2 mm., black colour (RAL 9005).
- Side panels with optional locks to avoid unauthorized access.
- Removable side panels and front door.
- Top/bottom cable entry openings which can be closed.
- Wall hanging panels available.
- Front door made of 5mm tempered glass and 1.2mm cold-rolled steel frame.
- Doors can be opened from left or right.
- Grounding screw inside.
- Cage nuts included.
- Supplied disassembled in flat-pack.
  Datasheet		Download

So far, there are no questions related to this product.

Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
