Audio Installation

RCS 001

82MEG096
8Ohm
L100V

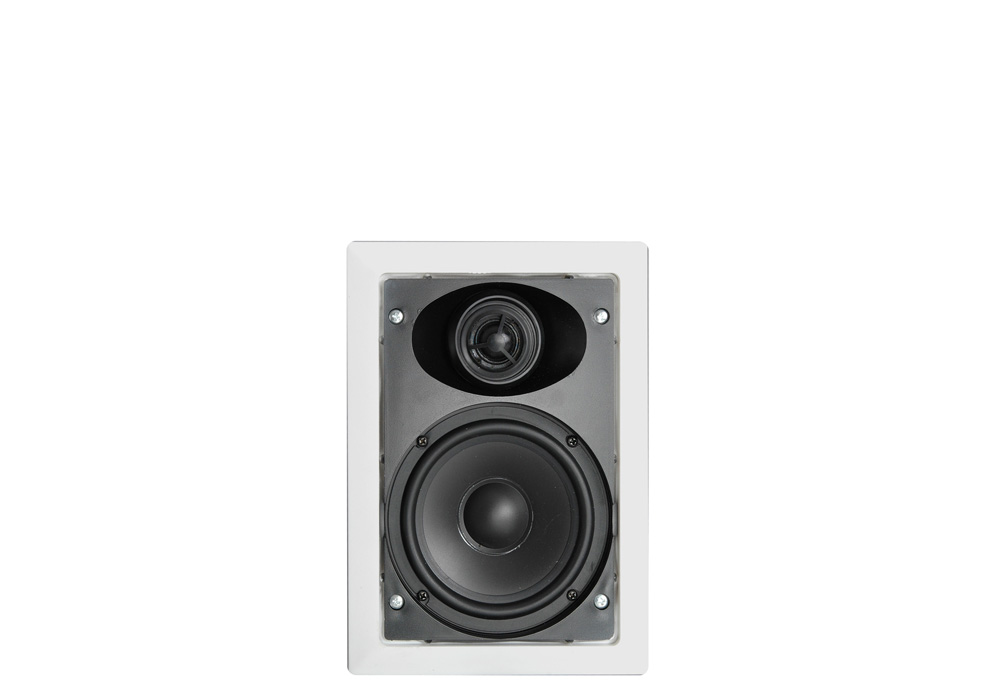

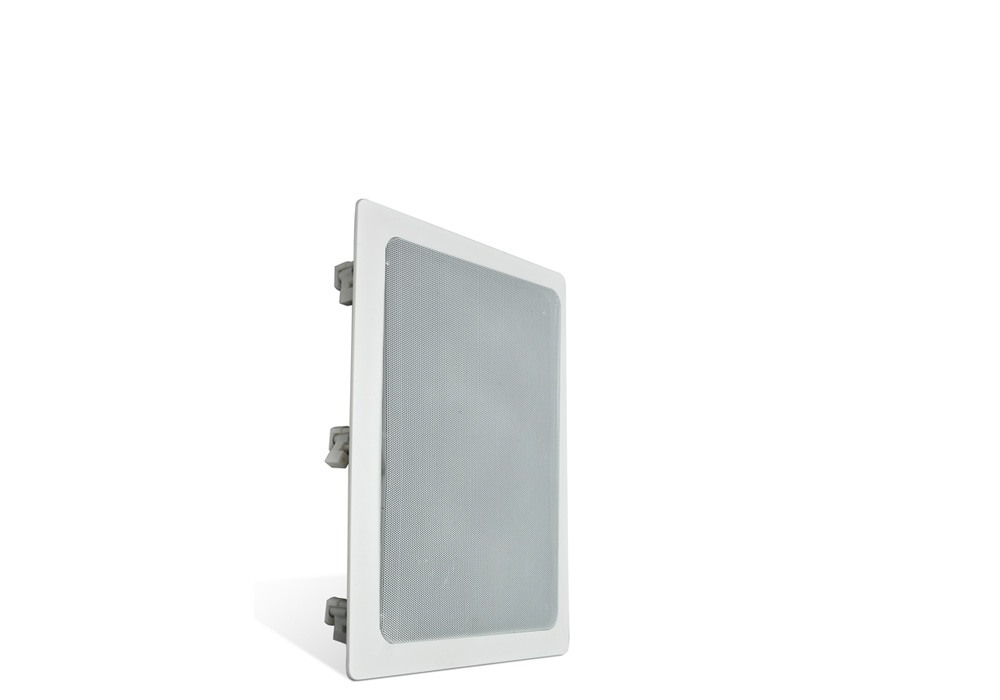

Ceiling speaker

RCS 001 is a ceiling loudspeaker composed of a 5.25" woofer and a 1" tweeter, which can work in low impedance installations supporting a power of 30 W @ 8 Ohm, and in 70/100 volt line installations, having for this, a select number of powers (12/8/4 W). Unlike other ceiling speakers, RCS 001 is square in shape, offering an alternative to installers and designers. This full-range ceiling speaker is made of ABS plastic and features a metal grill.

Features

  • Low impedance and 70/100 V line.
  • Square format.
  • Rotatable tweeter.
Type2 way. Passive
Low Impedance Power30 W @ 8 Ohm
L100V Power12 W (833 ohm) / 8 W (1k25 ohm) /4 W (2k5 ohm)
L70V Power6 W (817 ohm) / 4 W (1k22 ohm) /2 W (2k45 ohm)
LF TransducerWoofer 5.25"
HF TransducerTweeter 1"
Frequency Range50 Hz - 20 KHz
Sensitivity88 dB
Max SPL98 dB
MaterialEnclosure: ABS plastic; Grille: Metal
ColourWhite (RAL 9003)
Mounting dimensions211 x 144 mm
Dimensions260 x 190 x 59 mm
Weight1.3 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.260.290.031.30
Box0.170.120.211.38
Master Carton0.510.450.2911.96
  Manual
Download
  Datasheet
Download
  Software
Download
