100v Amplifiers
Audio Installation

PA 90/2 USB

82MEG902
8Ohm
12Vdc
L100V
USB/SD

Amplifier with MP3 player

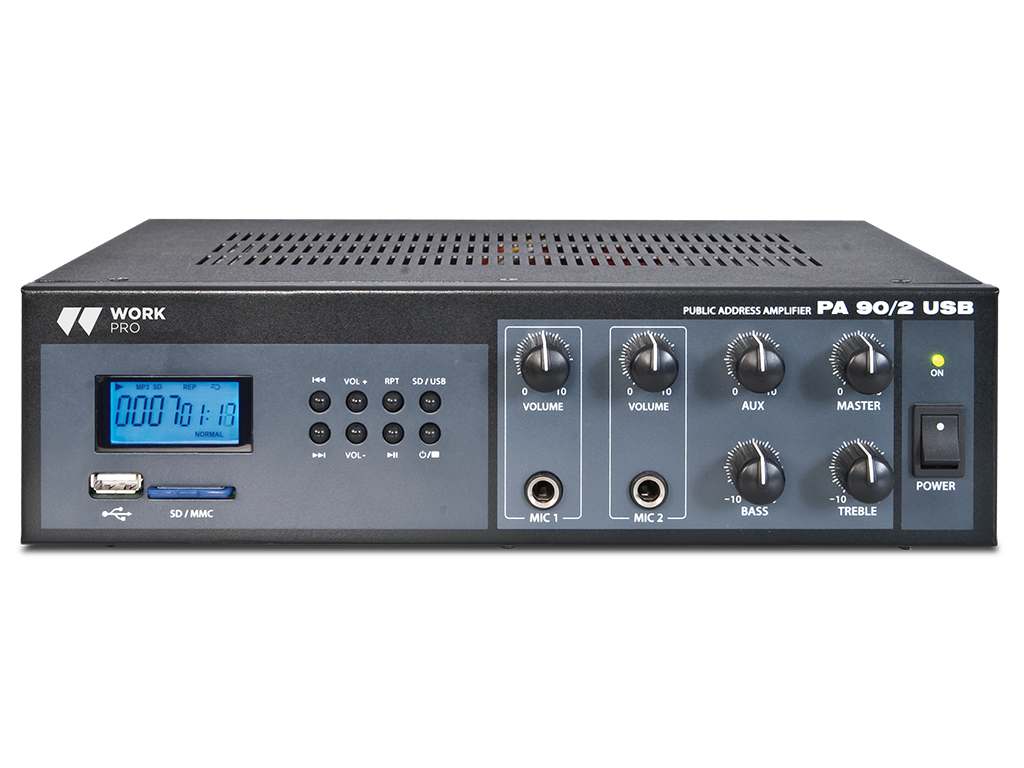

This amplifier / mixer has been designed for small PA applications such as warehouses and parking garages. It incorporates USB / SD / MP3 player input to connect storage devices with up to 32 GB of memory. The player includes all common functions (play / rewind / forward, volume, etc.). It has two microphone inputs (Mic 1 with priority) and an Aux input for connecting a CD or radio player. Thanks to the pre-amplified output with all the mixed signal, it can be connected to additional amplifiers in the installation. It can work at low impedance and 70/100 V line. It is also possible to connect it to the DC 12V emergency input and use it as a car PA system.

Features

  • For low impedance installations and 25/70/100 V line.
  • Microphone and Aux inputs.
  • Integrated MP3 / WMA player (USB / SD)
  • 115/220 V AC and 12 V DC power supply.
TypeLow impedance (4 Ohm), Line 25/70/100 V
Power30 W
Input SensitivityMic: 50 dBv @ 1 KHz. Aux: -6 dBv @ 1 KHz
Input ImpedanceMic: 250 Ohm, Aux: 47 KOhm

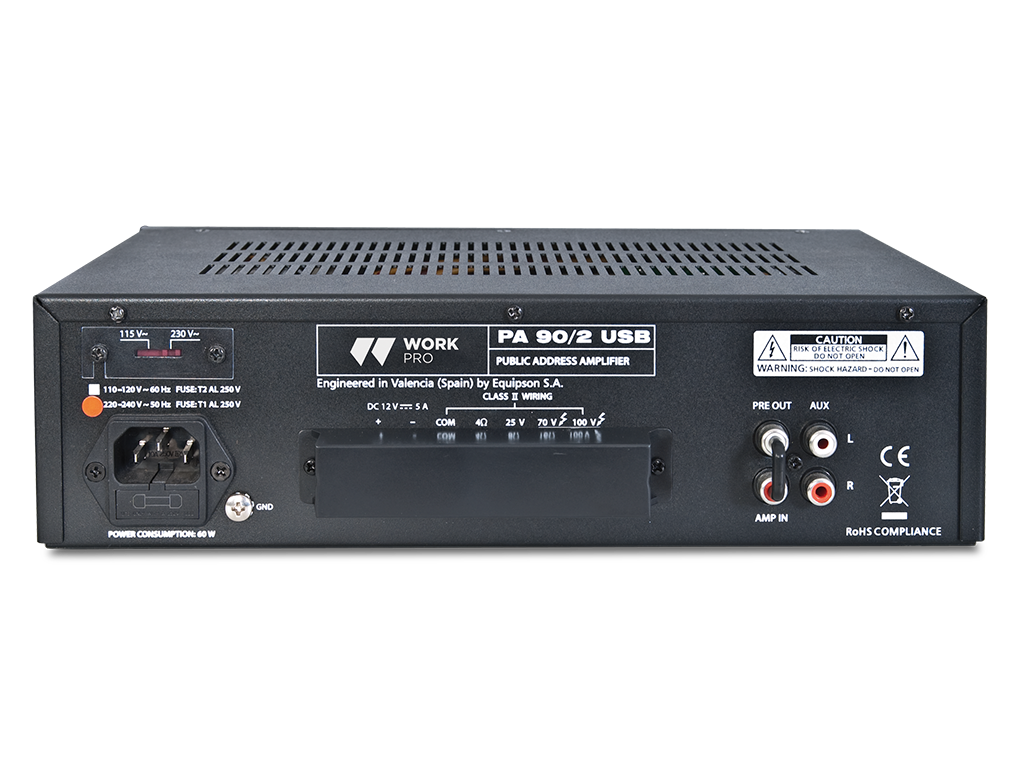

Connectors2 x jack 1/4" (MIC), 2 x RCA (AUX IN), IEC (power), 1 x RCA (Pre Out), Terminals (Speakers)
ControlsPower switch, Voltage selector, MP3 player control, 2 x Micro gain, AUX gain, Tone controls
Frequency Response80 Hz - 18 KHz
THD+N< 5% a 1 kHz (a 15 W)
S/N Ratio> 65 dB (MIC), > 75 dB (AUX)
Other functionsMP3 / WMA player. USB / SD reader, MIC 1 Priority
Power supplyAC 110/230 V - 50/60 Hz, DC 12V - 2.5A
ConsumptionAC: 60 W, DC: 45 W
Dimensions280 x 190 x 75 mm
Weight4.5 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.190.280.084.50
Box0.350.260.165.06
Master Carton0.360.280.3410.66

  Manual		Download
