PA 4120 L
82MEG422
4x120W 70/100V

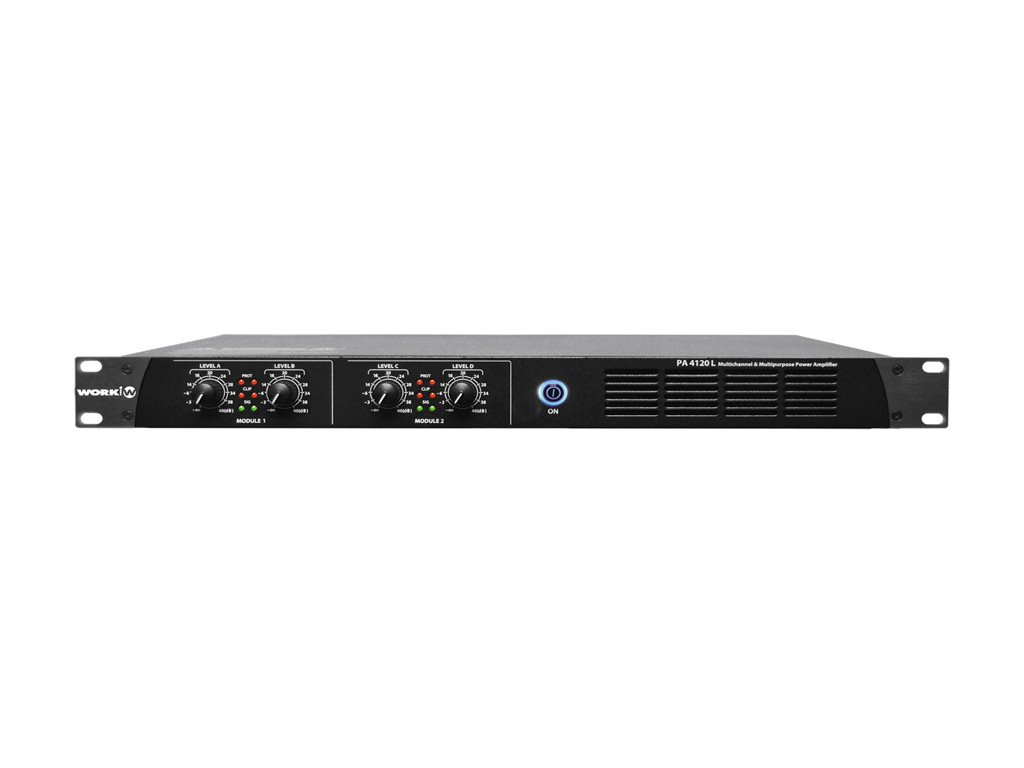

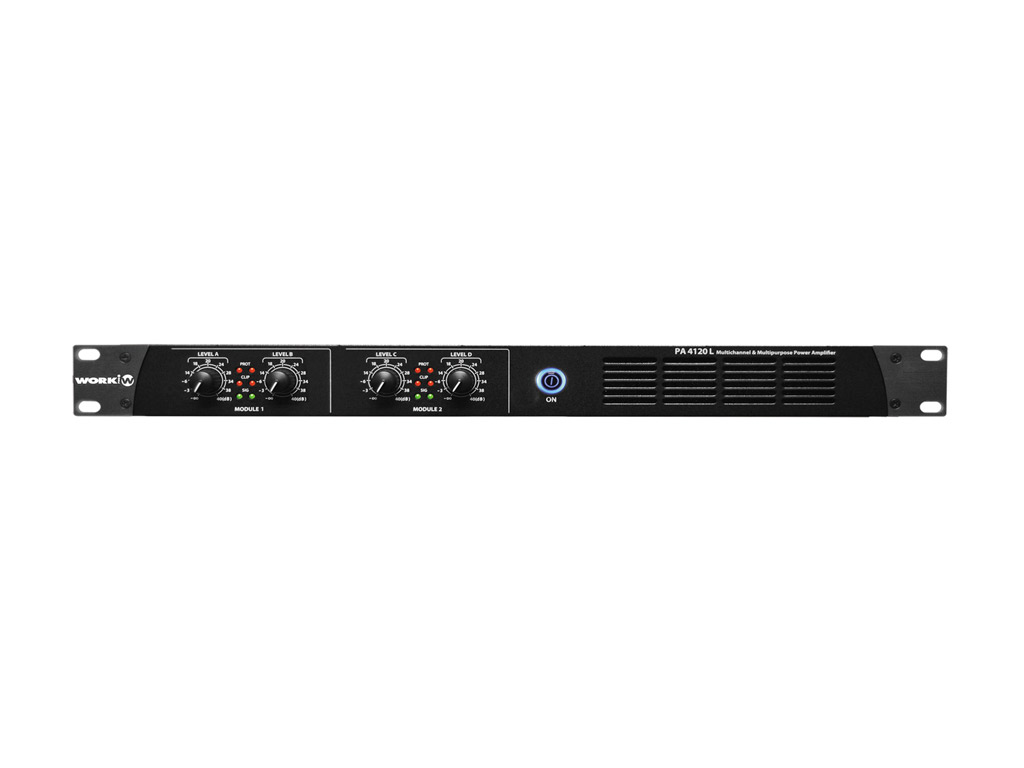

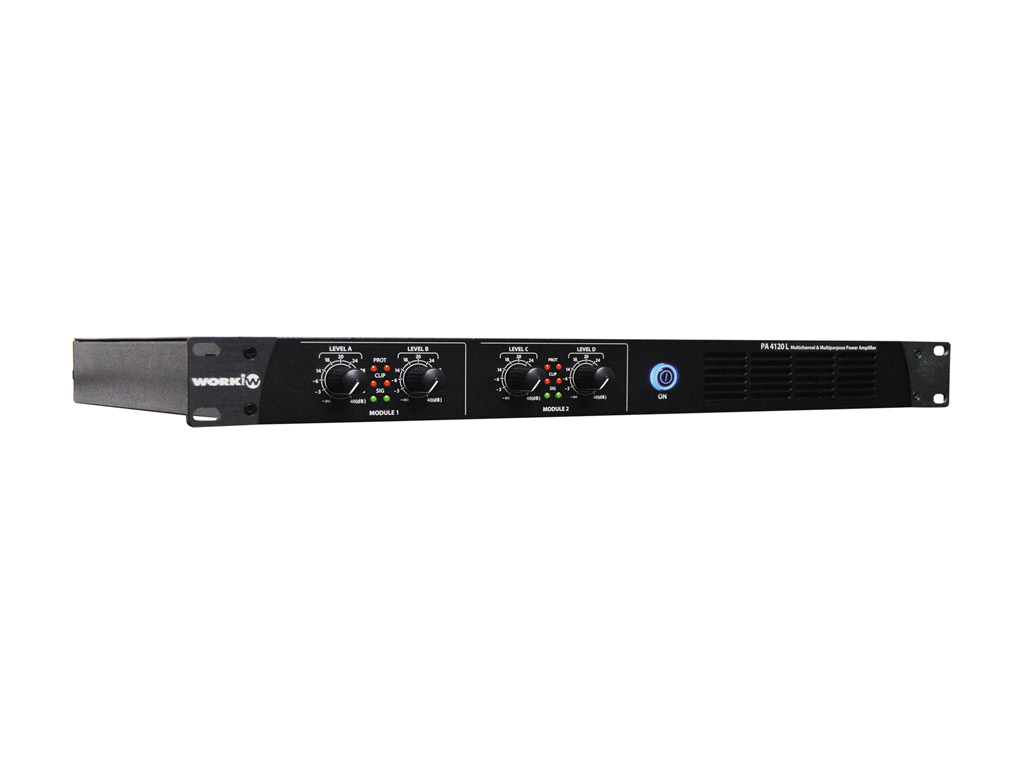

PA 4120 L is a 4-channel of 120W each, class-D installation amplifier. It is suitable for both 70/100V line installations (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip and protection).

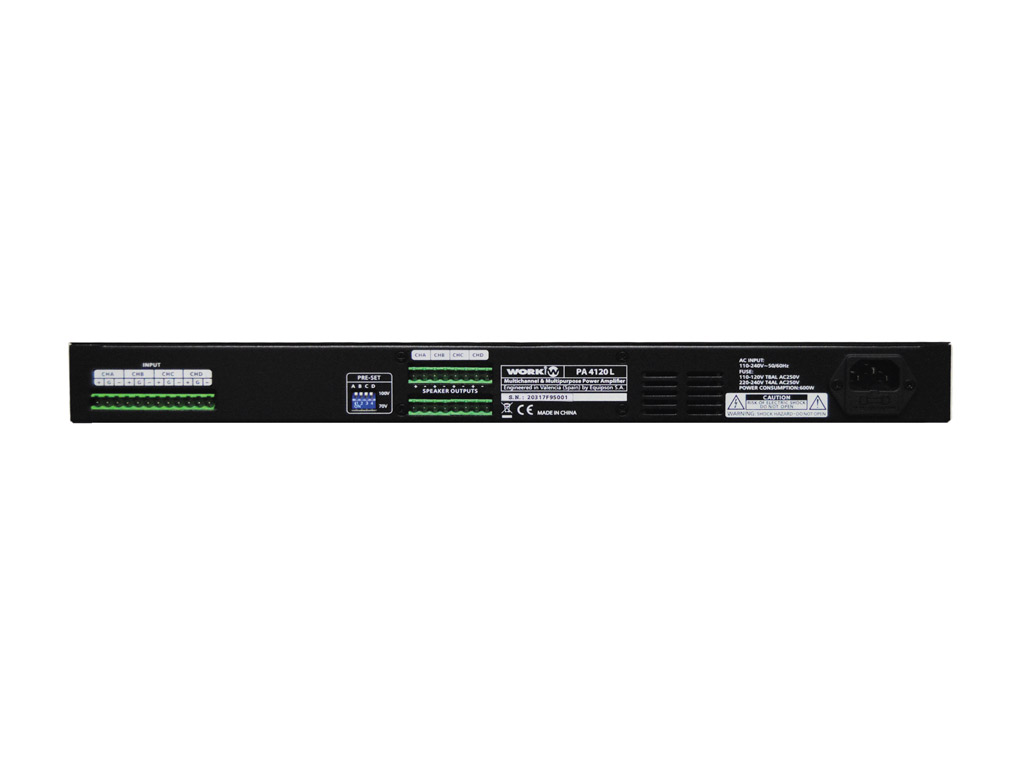

The PA 4120 L amplifier has several protections such as short circuit, thermal, ultrasonic and RF. The input and output connections are made through Euroblocks, and it is 1HU for 19'' standard racks.
|
|
PA 4120
L |
|
Output Power (100V line) |
4x 120W |
|
Output Power (70V line) |
4x 120W |
|
Input sensitivity |
1V (±0.1V) |
|
Input Impedance |
20kOhm (balanced) 10kOhm (unbalanced) |
|
Frequency response |
100 Hz - 15 kHz |
|
Voltage gain (100V) |
40 dB |
|
THD+N |
<0.1% |
|
S/N rate |
>95 dB |
|
Crosstalk |
>70dB |
|
Damping factor |
>200 |
|
Power output circuitry |
Switching power, Class-D |
|
Power supply |
AC 110-240V, 50/60 Hz |
|
Protections |
Short circuit, open circuit, thermal,
ultrasonic and RF |
|
Connectors |
INPUT & OUTPUT: Euroblock |
|
Dimensions (WxHxD) |
483x44x272 (mm) |
|
Weight |
4.7 kg |
- 4-channel installation amplifier.
- 70/100V line operation.
- Power output (70/100V): 4x120W
- Volume control on each channel.
- 1 HU rack 19'' size.
- Switching power, class-D amplifier.
Manual | PA 4120 L - MANUAL v1.0 |  | Download |
