Audio Installation

PA 2120 L

82MEG212
L100V

2x120W 70/100V

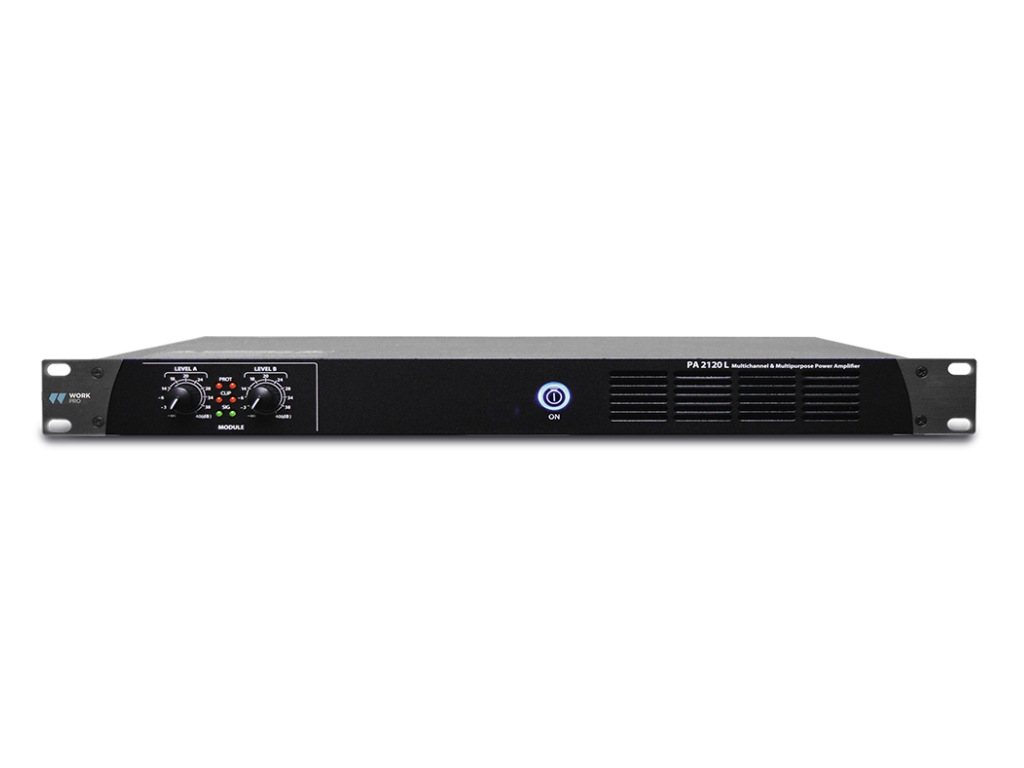

PA 2120 L is a 2-channel of 120W each, class-D installation amplifier. It is suitable for both 70/100V line installations (selectable through dip-switches). Each channel has its own volume control and LED indicators (signal, clip and protection).

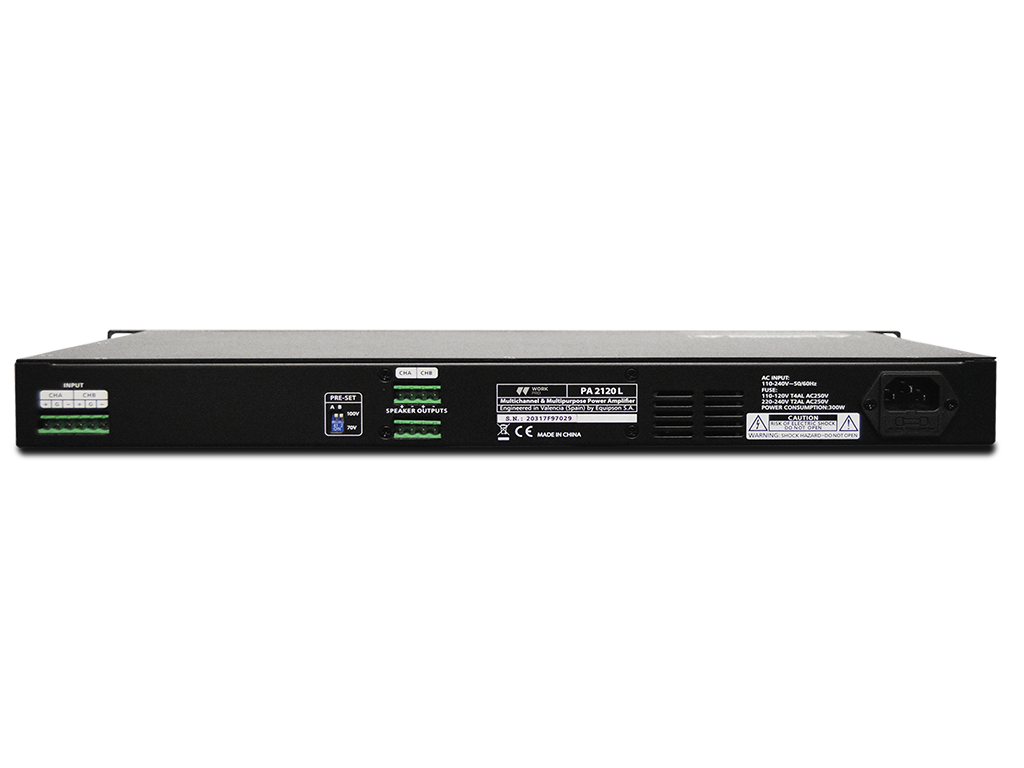

The PA 2120 L amplifier has several protections such as short circuit, thermal, ultrasonic and RF. The input and output connections are made through Euroblocks, and it is 1HU for 19'' standard racks.


PA 2120 L
Output Power (100V line)
2x 120W
Output Power (70V line)
2x 120W
Input sensitivity
1V (±0.1V)
Input Impedance
20kOhm (balanced) 10kOhm (unbalanced)
Frequency response
100 Hz - 15 kHz
Voltage gain (100V)
40 dB
THD+N
<0.1%
S/N rate
>95 dB
Crosstalk
>70dB
Damping factor
>200
Power output circuitry
Switching power, Class-D
Power supply
AC 110-240V, 50/60 Hz
Protections
Short circuit, open circuit, thermal, ultrasonic and RF
Connectors
INPUT & OUTPUT: Euroblock
Dimensions (WxHxD)
483x44x272 (mm)
Weight
4 kg

Length(m)Width(m)Height(m)Weight(kg)
Product0.270.480.044.00
Box0.340.540.115.14
Master Carton0.390.560.4721.54
  • 2-channel installation amplifier.
  • 70/100V line operation.
  • Power output (70/100V): 2x 120W.
  • Volume control on each channel.
  • 1 HU rack 19'' size.
  • Switching power, class-D amplifier.
