Audio Installation

NGS 80 LX

50EBJ021
8Ohm
LED
IP56

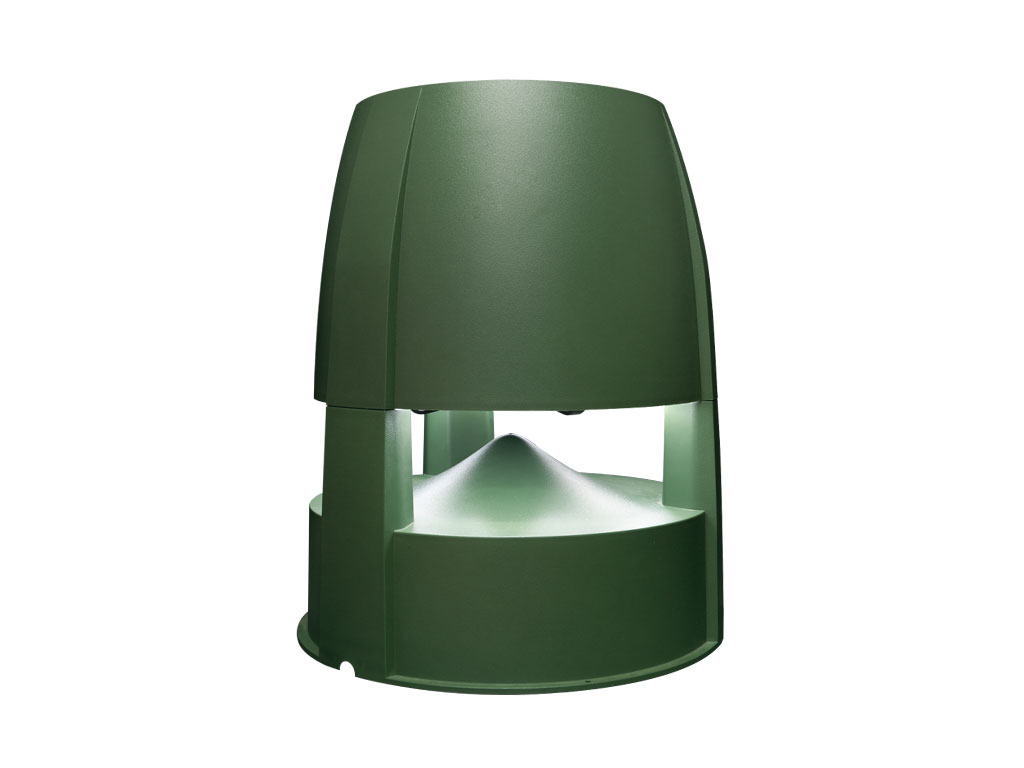

Speaker with led light for garden.

NGS 80 LX is an acoustic enclosure with built-in led light, designed for installation in gardens. It has an 8 "woofer and a 1.4" tweeter. It can work both in low impedance installations and in 70/100 volt line installations, with a power of 120W @ 8Ohm and 60/40/20 W on 100 v line (selectable). It incorporates 9W and 3000K led lighting powered at 12v DC (power supply not included). It is made of ABS plastic and is designed to offer omni-directional coverage.

Features

  • ABS plastic.
  • Low impedance and 70/100 V line.
  • Suitable for outdoor installations.
  • 9W and 3000K LED light.
Type2 way. passive
LF TransducerWoofer 8"
HF TransducerTweeter 1.4"
Low Impedance Power60 Wrms @ 8 Ohm
L100V Power60 W / 40 W / 20 W
L70V Power40 W / 20 W / 10 W
Nominal Impedance8 Ohm
Sensitivity (1W @ 1m)85 dB
SPL Max112 dB
Frequency Range53Hz/90 Hz - 22 KHz
Coverage360º
HPF filter recommendedButterworth 24 dB/Oct, 50Hz
Light sourceLed 9W (12 Vdc power supply NOT included)
Color temperature3000 K
Enclosure materialABS plastic
ColourGreen
IP ProtectionIP56
Dimensions 340 x 340 x 400 mm
Weight4.4 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.340.340.404.40
Box0.360.360.445.80
  Manual
Download
  Quick Guide
Download
