Audio Installation
NGS 8 S
50EBJ018
8Ohm
IP65

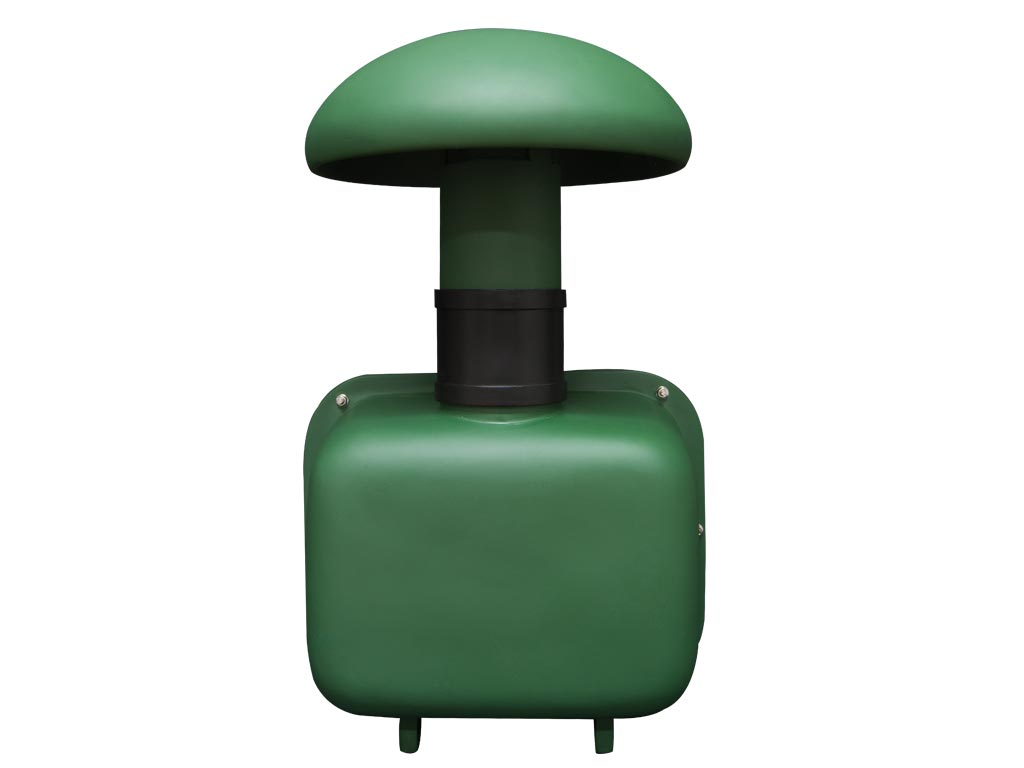

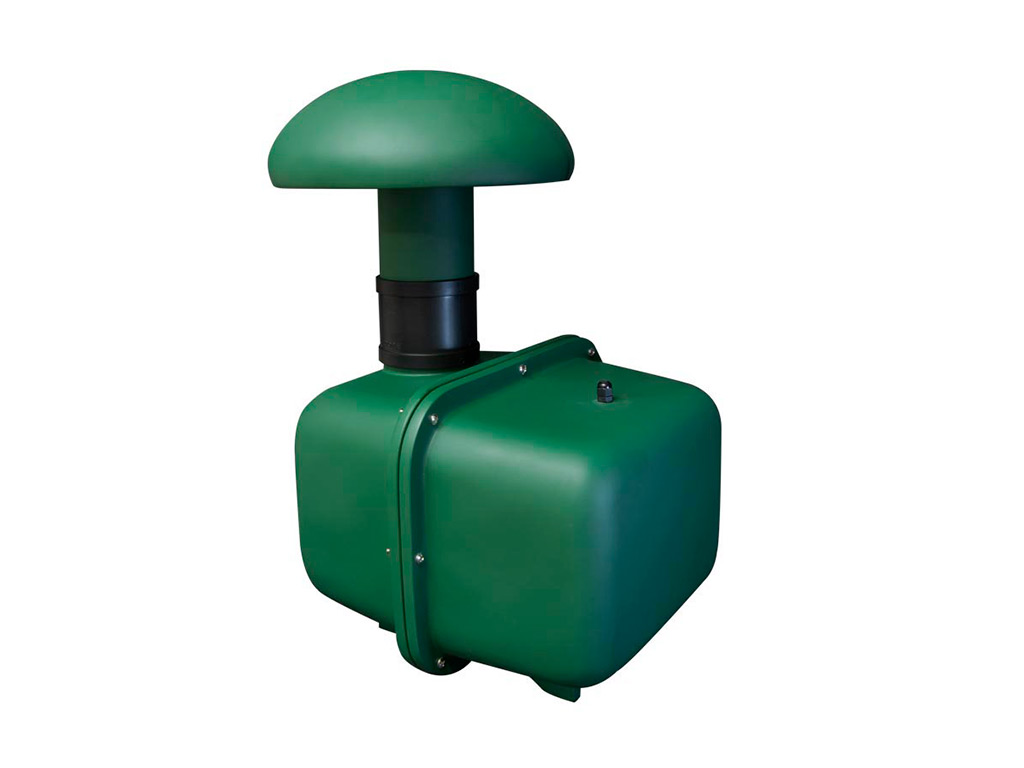

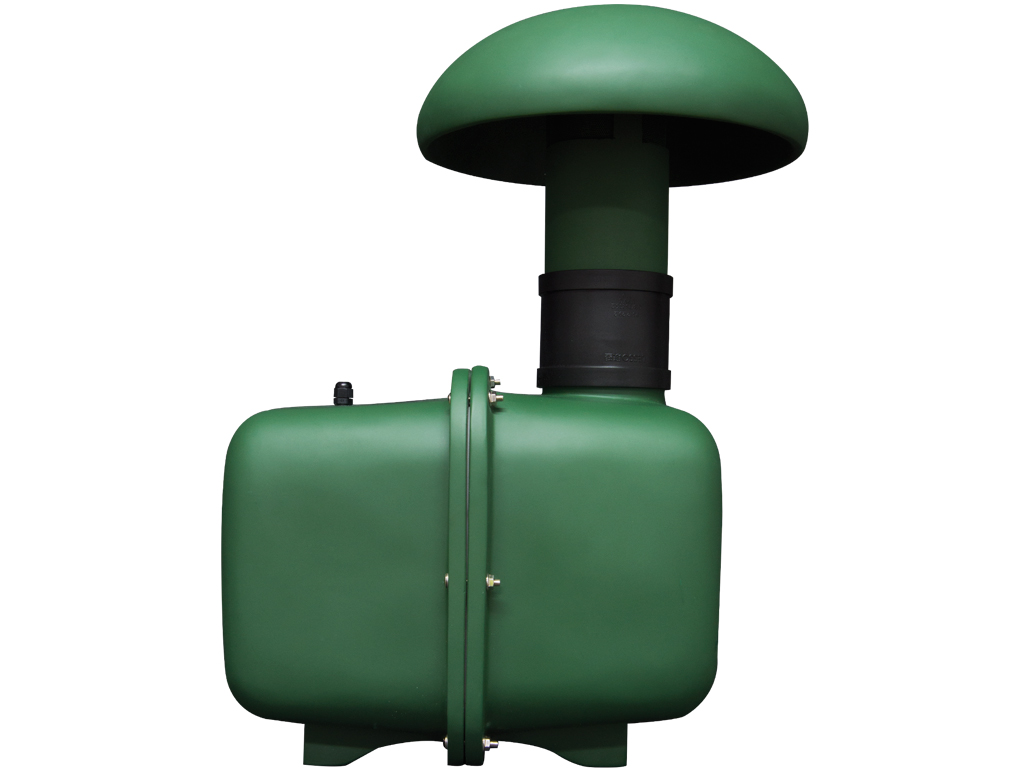

Mushroom-shaped outdoor subwoofer.
The NGS 8 S WORK PRO outdoor subwoofer has been designed for outdoor music applications delivering a deep and rich bass thanks to its enclosure is hidden under the ground.
The high protection rating IP65 makes it suitable for deployment in rough environments, and is the ideal complement to extend the very low frequencies of mid-high speakers outdoors. Once installed, only the top tube is visible.
|
Frequency Range (-6dB) |
40 Hz - 70 Hz |
|
Frequency Range (-10dB) |
35 Hz - 130 Hz |
|
Sensitivity |
87 dB SPL |
|
Peak SPL |
113 dB SPL |
|
Coverage |
Omnidirectional |
|
Nominal Impedance |
8 Ohm |
|
Program Power |
200W |
|
RMS Power |
100W |
|
Speaker Component |
8'' reinforced woofer |
|
Recommended High Pass Filter |
Butterworth 24 dB/Oct, 20 Hz |
|
Recommended Low Pass Filter |
Butterworth 24 dB/Oct, 120 Hz |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.40 | 0.50 | 0.71 | 10.00 |
| Box | 40.00 | 50.00 | 72.00 | 11.00 |
- Finish: Fiberglass Reinforced Plastic
- Connection: Terminals
- IP range protection: IP65
- Speaker Component: 8" woofer
- Dimensions (WxHxD): 395x712x500 mm
- Weight: 10 Kg
Manual | NGS 8 S - User Manual V.10 |  | Download |
