Audio Installation

NEO 5A BT

50EBS13650EBS137
AMP
BT

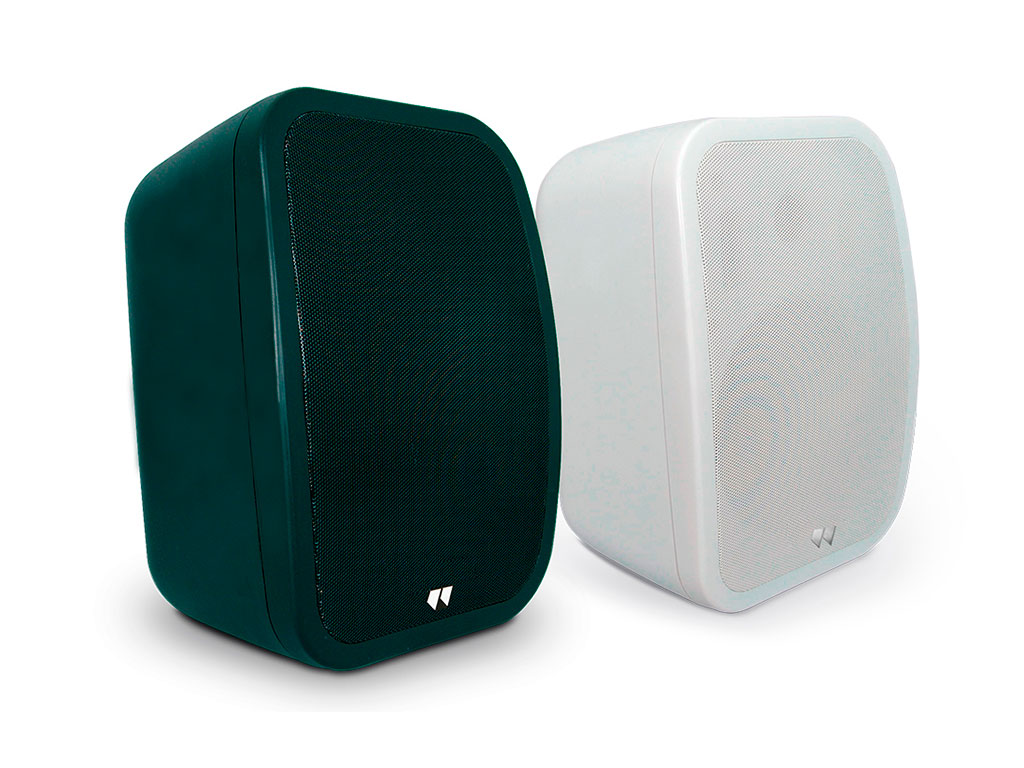

Active + passive loudspeaker 2 x 25 W RMS.

The powerful, elegant and high quality performance installation loudspeakers of the NEO Series, now include the convenience of Bluetooth Control. The new self-powered two way loudspeakers  R   offers a 30 metres indoor line of sight (LOS), offering a free control of the audio system. With this new feature, the audio input possibilities have been duplicated: users can choose conventional audio input signal through input connectors as well as Bluetooth control, using an external device to send audio files through this protocol.

Designed for fixed installations, this loudspeaker incorporates a Class D amplifier with volume and two tone controls for minimal weight and heat. They are provided in pairs (active + passive) and in black or white finish for a best adaptation to different types of projects.

Sold in pairs (active + passive)

Features

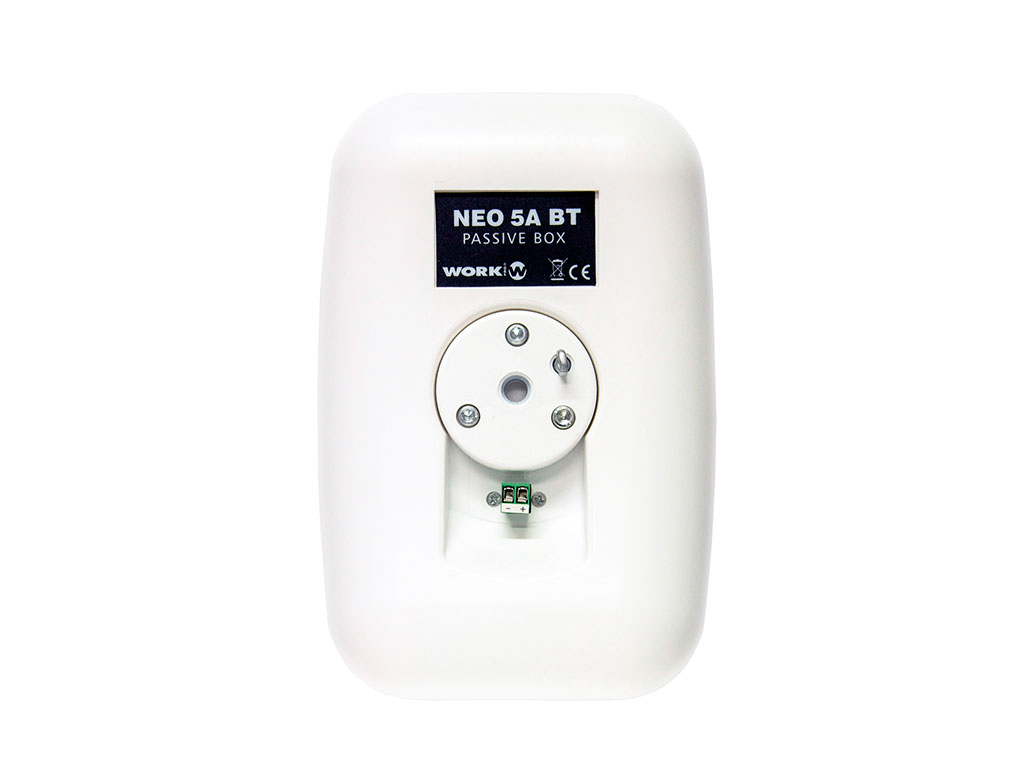

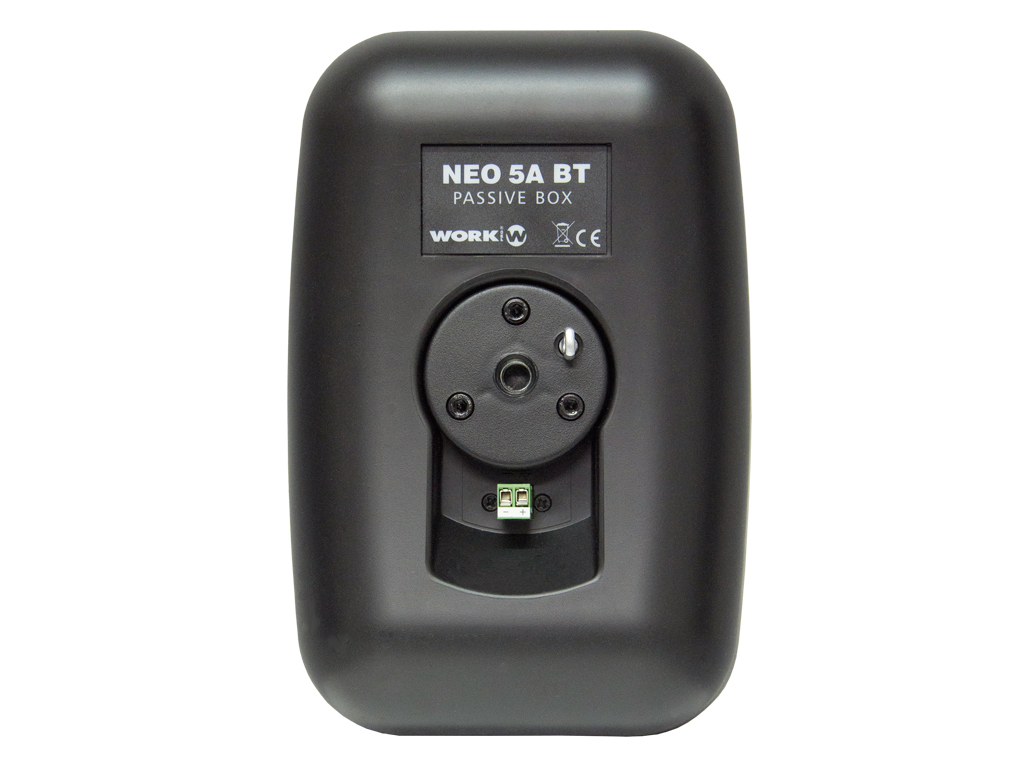

  • Passive loudspeaker powered from active loudspeaker.
  • Bluetooth.

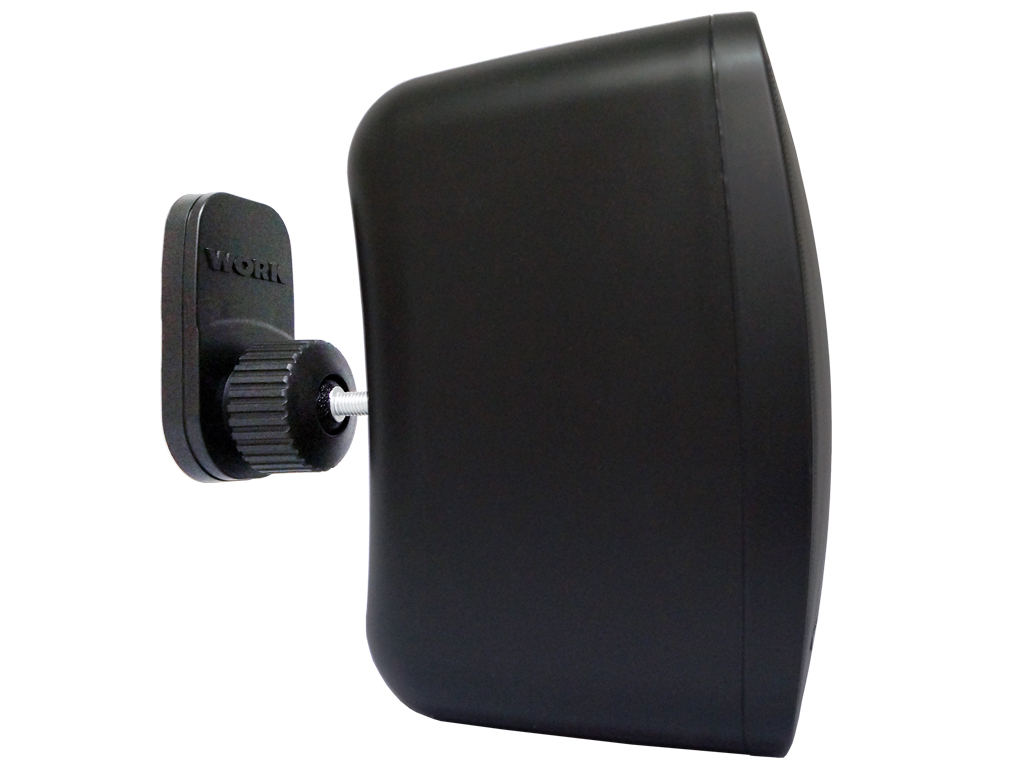

  • Wall brackets included.
  • IP 54 range.
Type2 ways. Active + passive
Power2 x 25 W RMS
LF Transducer5.25" Woofer
HF Transducer0.5" Tweeter
Input Sensitvity1V / 2.21 dBu
Sensitivity (1W @ 1m)91 dB
SPL Max.107 dB
Coverage Angle (H x V)90º x 70º
Frequency Range60 Hz - 20 KHz

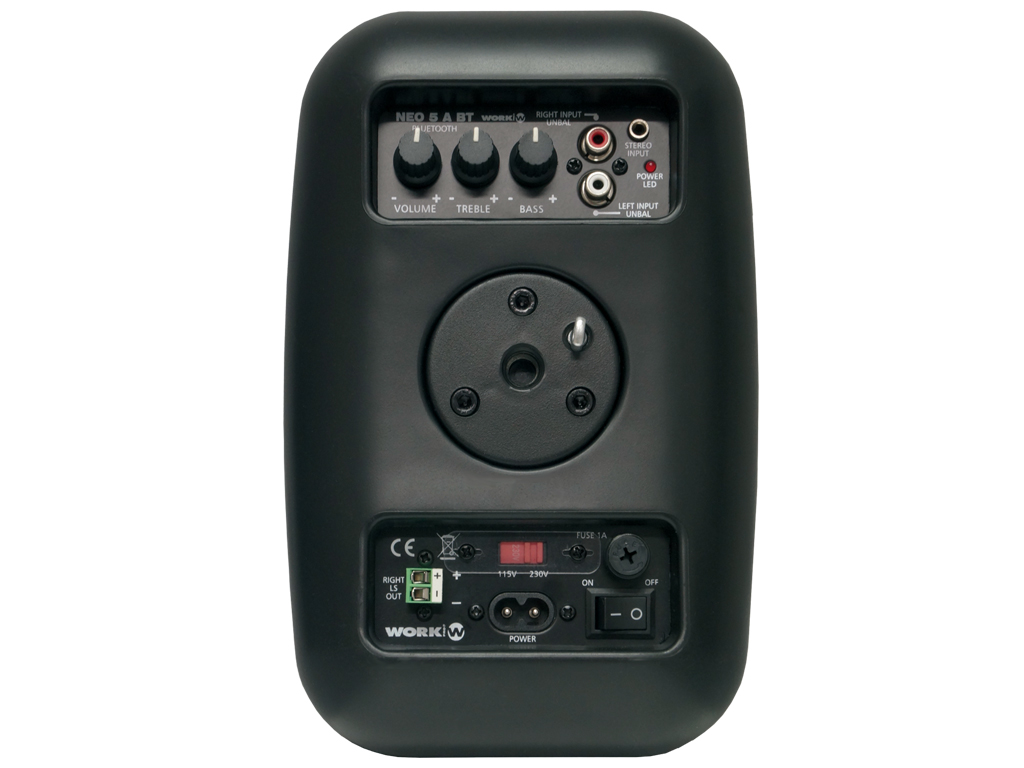

ConnectionsAudio In: 2 x RCA, 1 x Minijack 3.5 mm, Amp Out: Euroblock 2 pin, Passive: 2 x Binding post
ControlsPower switch, Volume, Tone control (high, low), Voltage selector
ConnectivityBluetooth
Enclosure materialPolypropylene
GrillAluminum

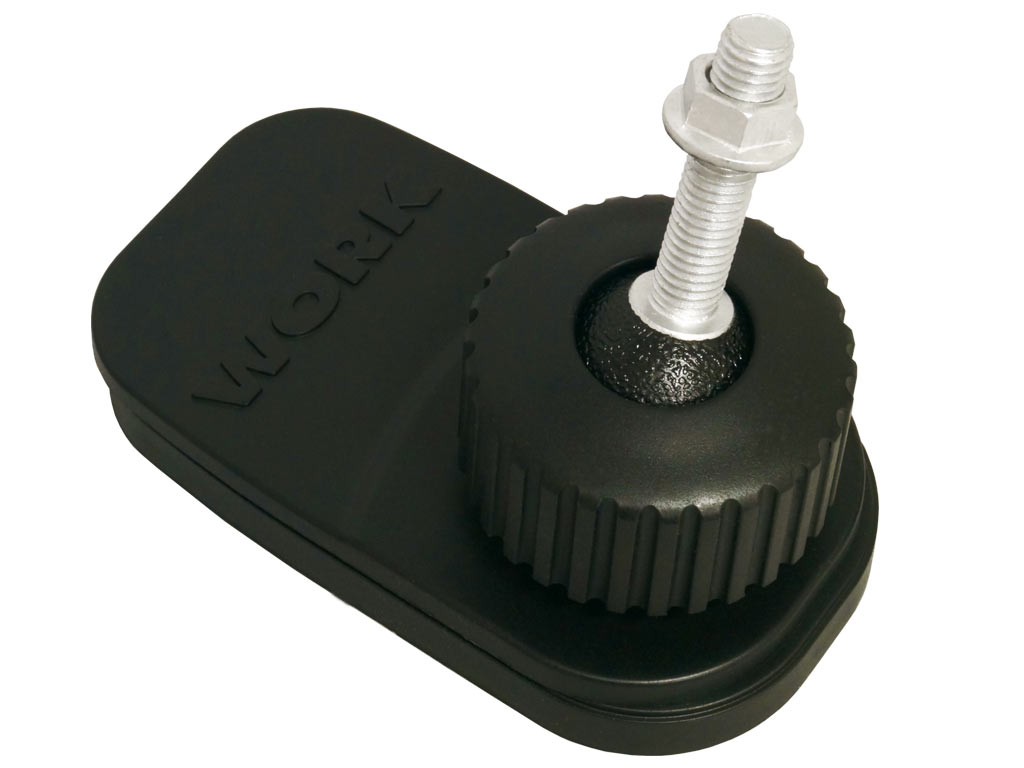

Inserts / RiggingWall brackets (included)

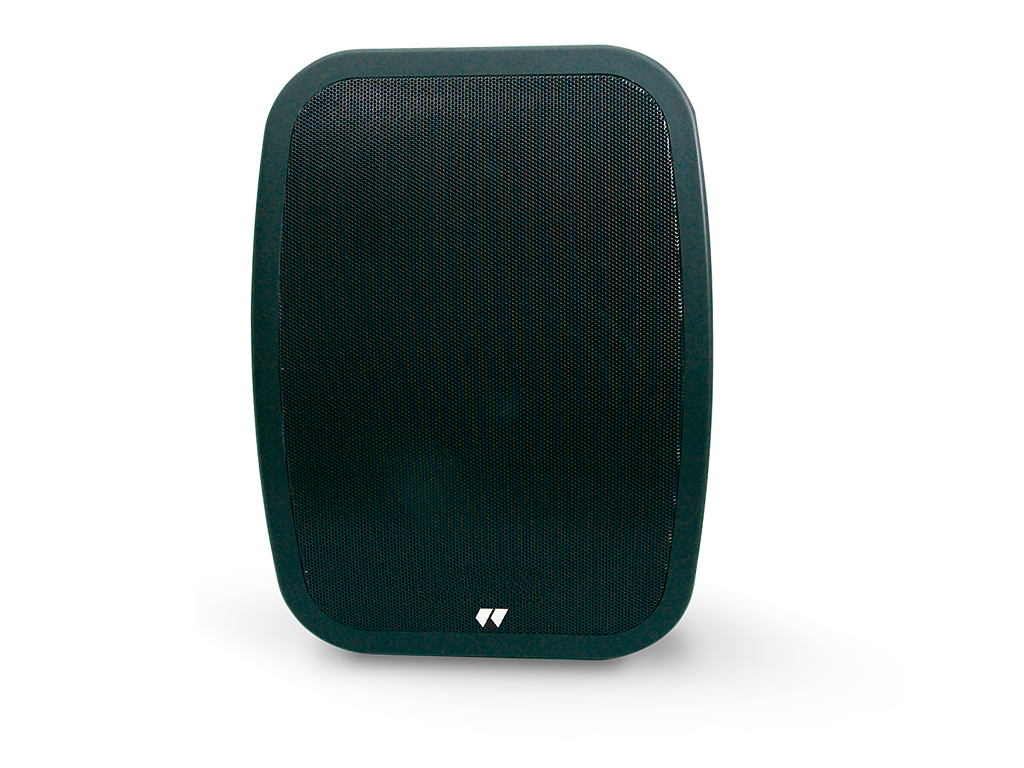

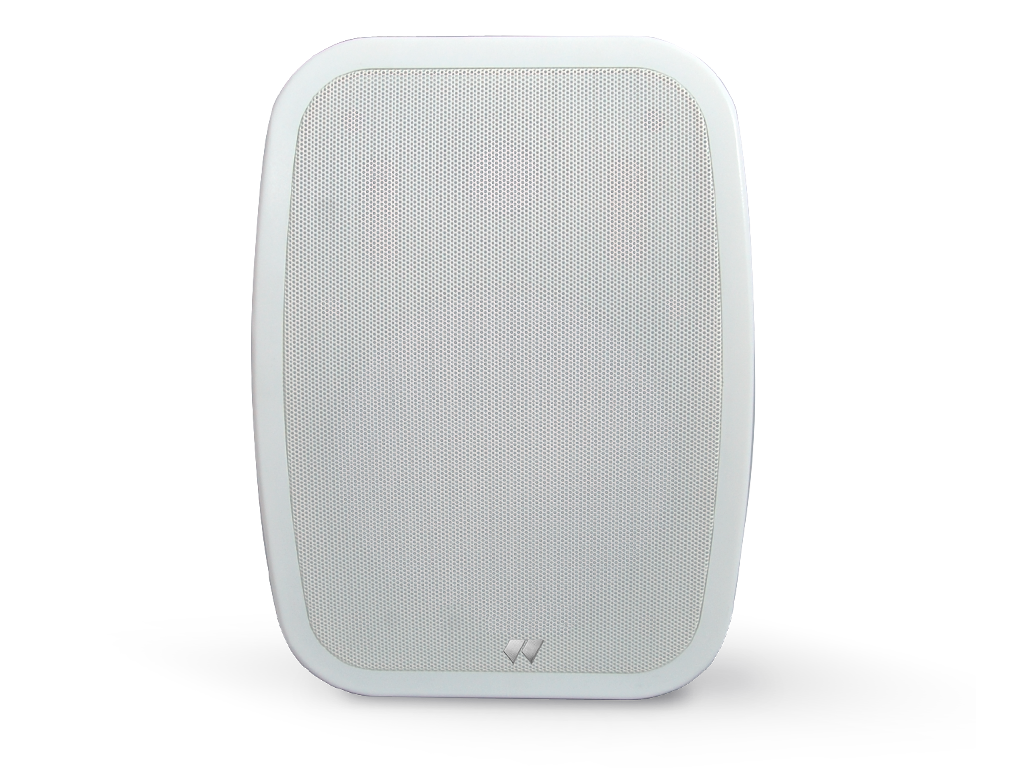

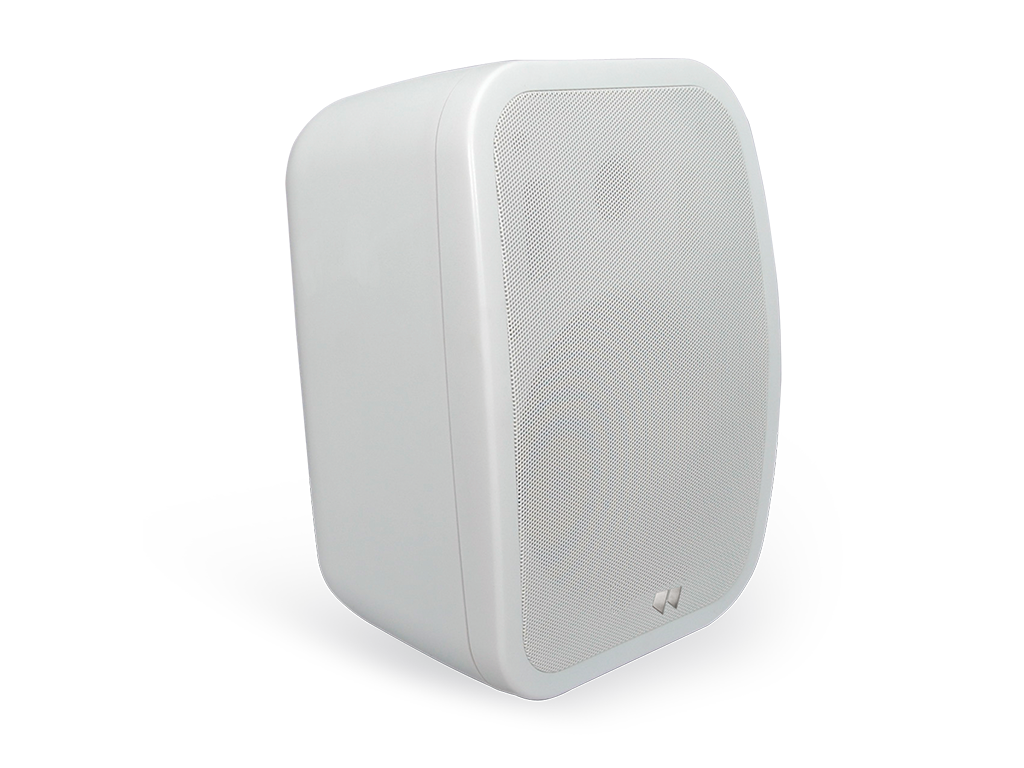

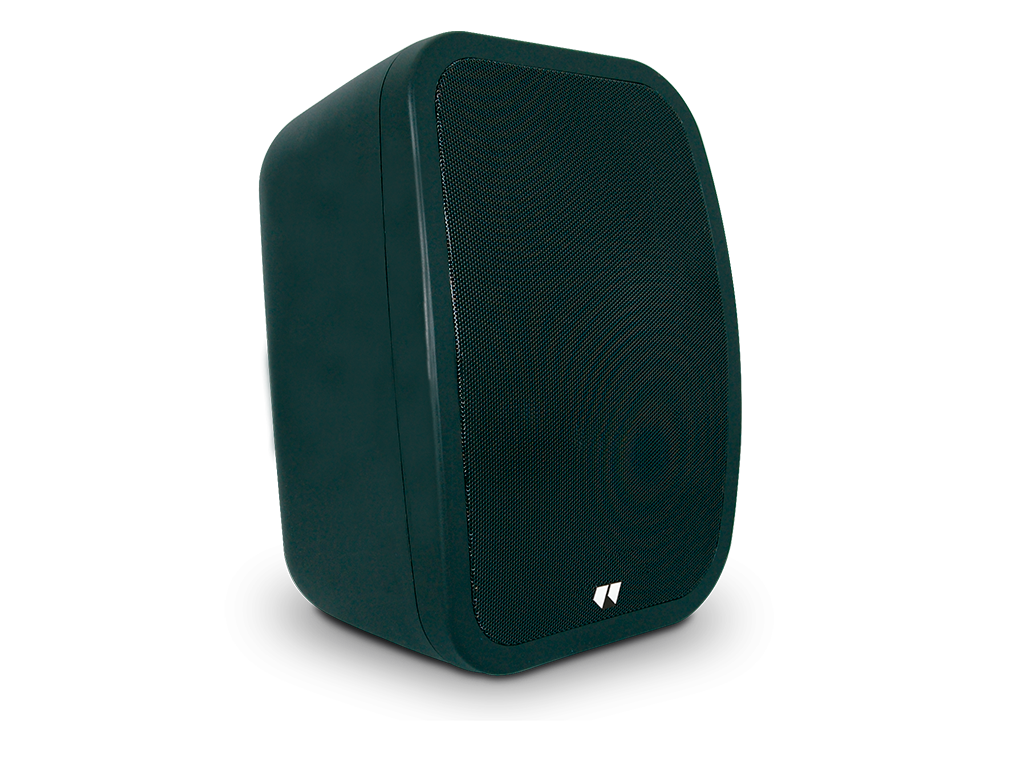

ColourWhite (RAL 9003), Black (RAL 9004)
IP ProtectionIP54
Length(m)Width(m)Height(m)Weight(kg)
Product0.170.170.244.40
Box17.0017.0025.005.40
