To be discontinued

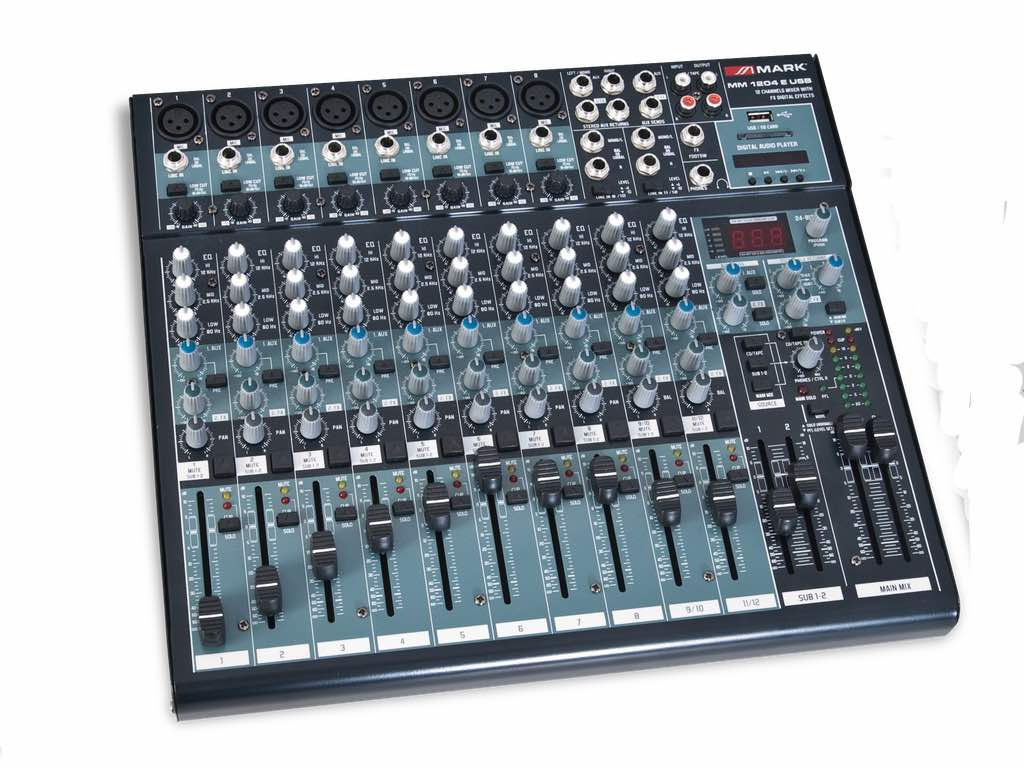

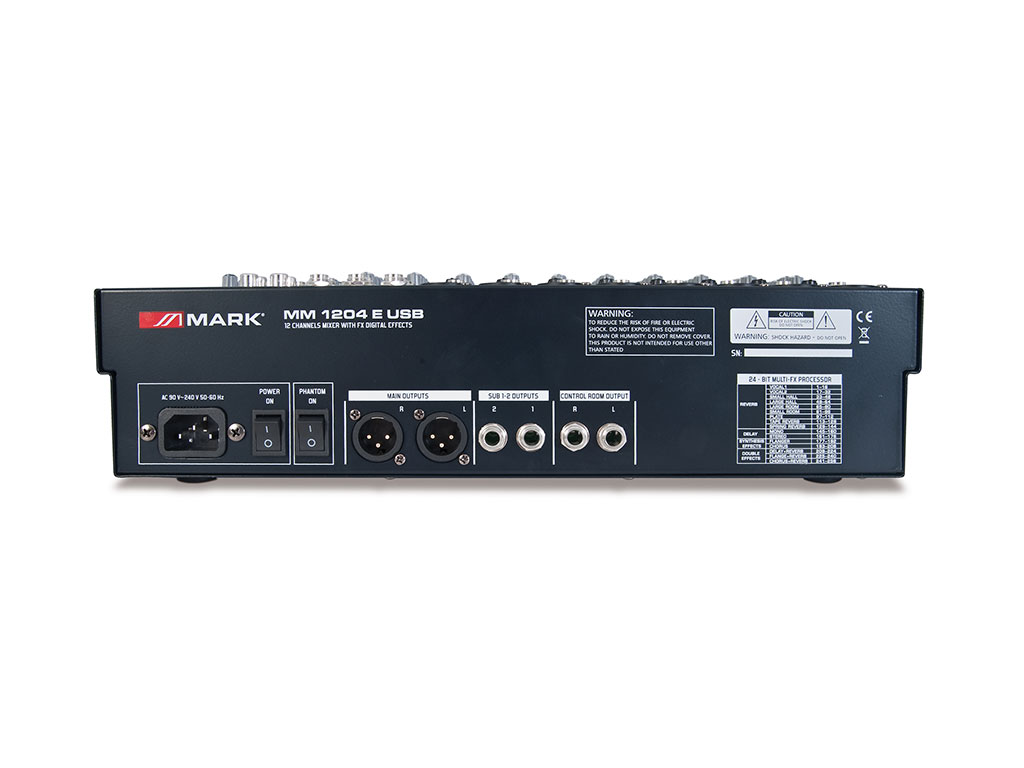

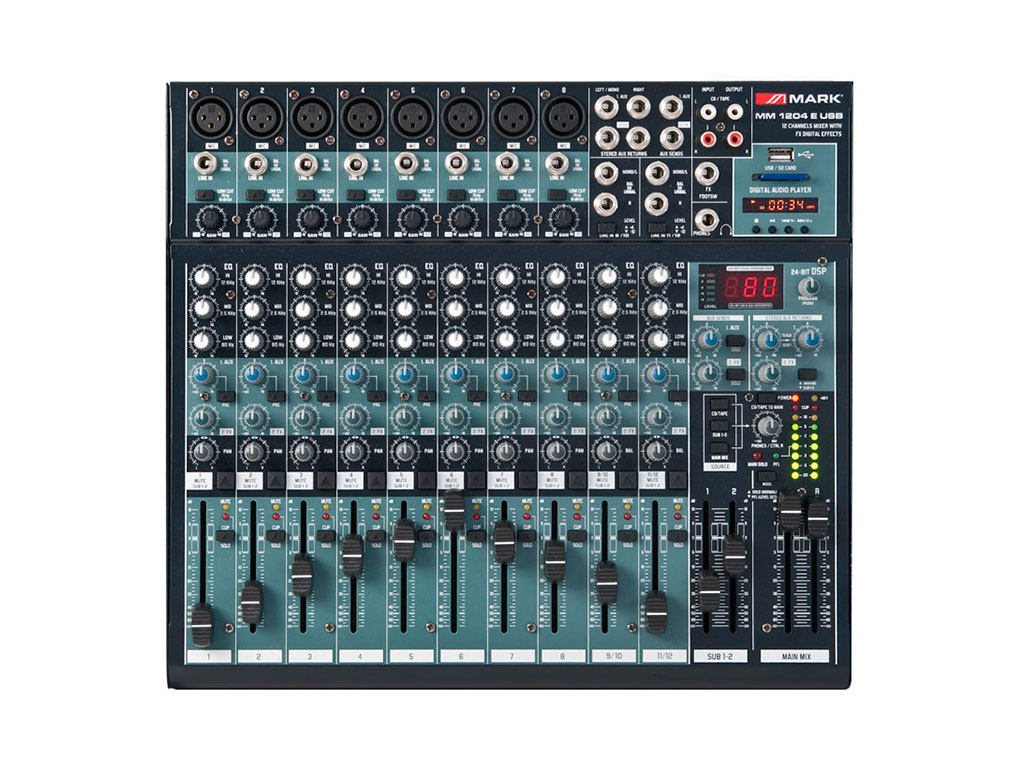

MM 1204 E USB

82MAR004

Audio mixers



Input channels: 8 mono + 2 stereo.
Type: Electronically balanced.
Bandwidth: 10 Hz to 20 kHz + - 3 dB.
Distortion (THD + N): 0.005%.
MIC:
Mic E.I.N. (20 Hz - 20 kHz):
134 dB, 0 ohm.
131 dB, 50 ohm.
129 dB, 150 ohm.
Maximum input level: +12 dBu @ +10 dB.
LINE:
Gain range:
10 dB to + 40 dB.
Impedance: 20 kohm bal./10kohm unbal .
Maximum input level: +30 dBu.
EQ:
Treble: 12 kHz + - 15 dB.
Media: 2.5 kHz + - 15 dB.
Bass: (High Pass Filter): 80 Hz -15 dB +.
Low Cut: -3 dB @ 75 Hz, 18 dB / oct.
MASTER SECTION:
MAIN Output: 240 kohm bal./120kohm unbal / +28 dBu.
CTRL-out: 120 kohm /unbal +22 dBu.
Headphone Output: +19 dBu / 150 kohm.
Power supply: 115-240 V AC 50 Hz.
Dimensions: 355 x 320 x 95 mm
Weight: 4.15 kg.

- Built-in MP3 player with USB and SD inputs.
- 24Bit DSP with up to 256 effects.
- Phantom power for micro channels.
- 2 subgroups.
- SOLO function.
- Independent L and R master control.

  Manual
Download
