Cable and Accessories
MK 86
15KMA086
6 m
Audio

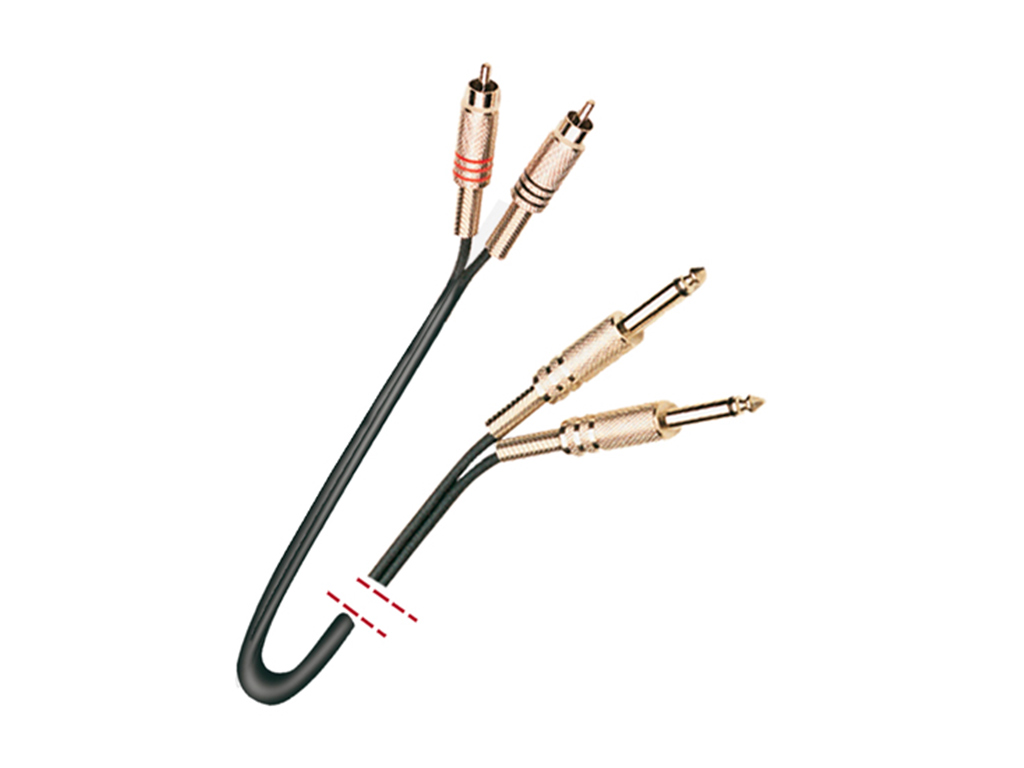

Audio signal cable
Signal cable with connectors 2 x RCA male - 2 x Jack 1/4'' mono male.
2 cables with conductor of 0.14 mm2 + shielding.
Diameter: 4 mm each cable.
Length: 6 m.
Features
- 2 x RCA male - 2 x TS 1/4 inch male Jacks
- Black and red identifiers
- 6 m lenght.
- Black.
| Type | Audio signal |
| Connections | 2 x RCA male - 2 x TS 1/4' male Jacks |
| Length | 6 m |
| AWG | 26 |
| Conductors | 2 x 1 x 0.14 mm² |
| Threads per conductor | 18 x 0.10 mm |
| Shield | Coiled copper wires |
| Shield factor | 90 % |
| Temperature range | -20 ºC to 70 ºC |
| Conductor capacitance | 250 pF/m |
| Conductor resistance | 125 Ohm/Km |
| Insulation resistance | > 1 GOhm/Km |
| Colour | Black |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 6.00 | 0.00 | 0.00 | 0.10 |
| Box | 0.30 | 0.10 | 0.05 | 0.20 |
