Professional Audio

MINO 15 A PRO

50MIN025
DSP
AMP

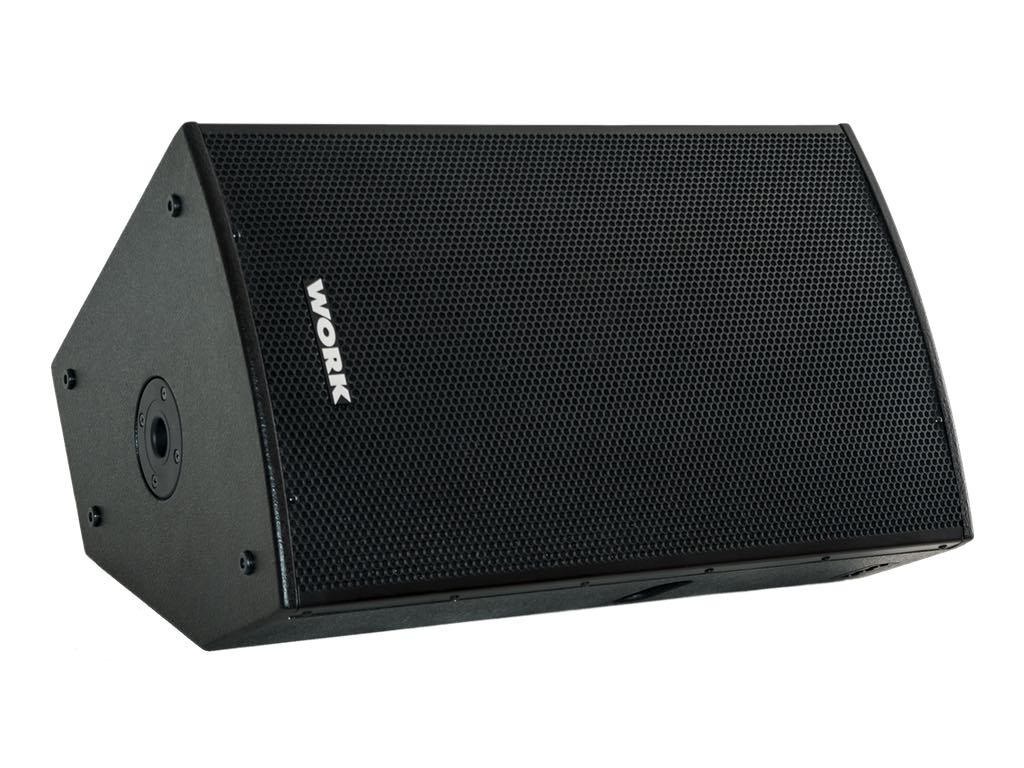

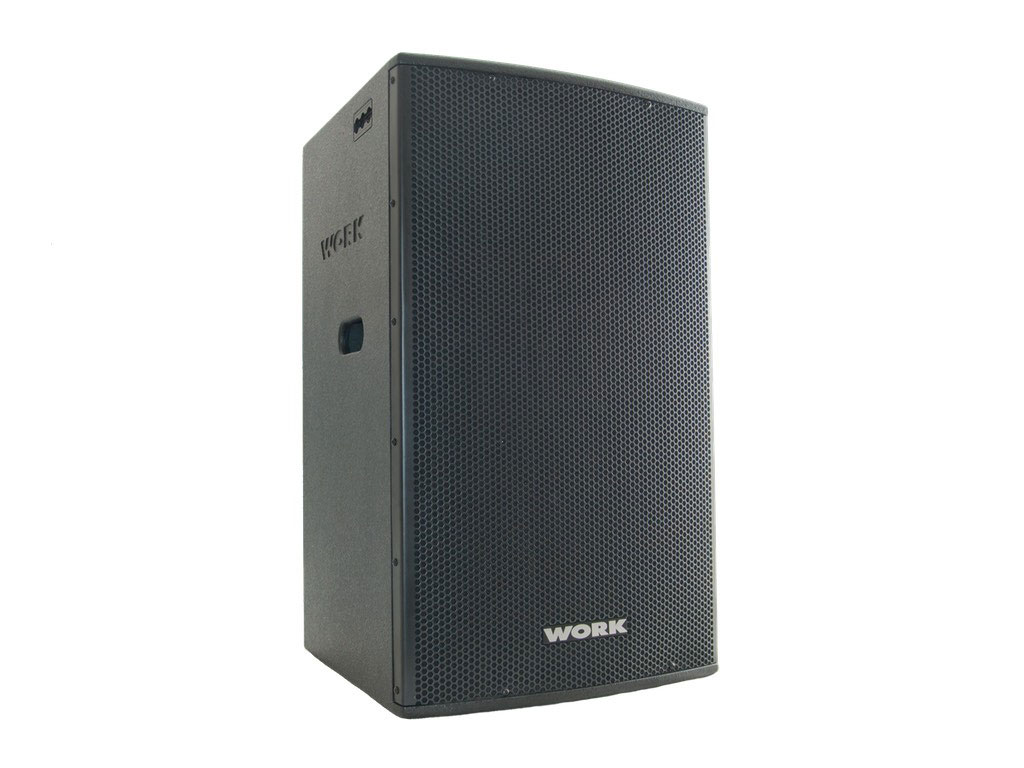

15'' bi-amped loudspeaker. DSP. 800 W.


Type2 ways. Biamplified
PowerLF: 650 W peak Clase-D, HF: 150 W peak Clase-D.
LF Transducer15" Woofer
HF Transducer1.4" Compression driver
Input Impedance20 KOhm
Input Sensitvity+4 dBu
Frequency Range(-10 dB): 45 Hz - 19 KHz. (-6 dB): 56 Hz - 17 KHz.
SPL Max123 dB
Coverage Angle (H x V)80º x 50º
ProtectionsRMS and Peak limiters, Overload
Enclosure materialByrch plywood
FinishedPolyuretan paint
ConnectionsPower Input: 1 x IEC 16A, Mic In: 1 x XLR3, Line In: 1 x XLR3, 1 x pair RCA, Audio Out: 1 x XLR3
Inserts / Rigging3 upper and lower rigging points, 35 mm insertion for stand
ColourBlack
Length(m)Width(m)Height(m)Weight(kg)
Product0.460.540.7540.30
Box59.0059.0087.0041.00

  Manual
Download
  Datasheet
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
