Lighting
MBAR 381 IP
28MAR021
RGB
IP65
DMX
45º <

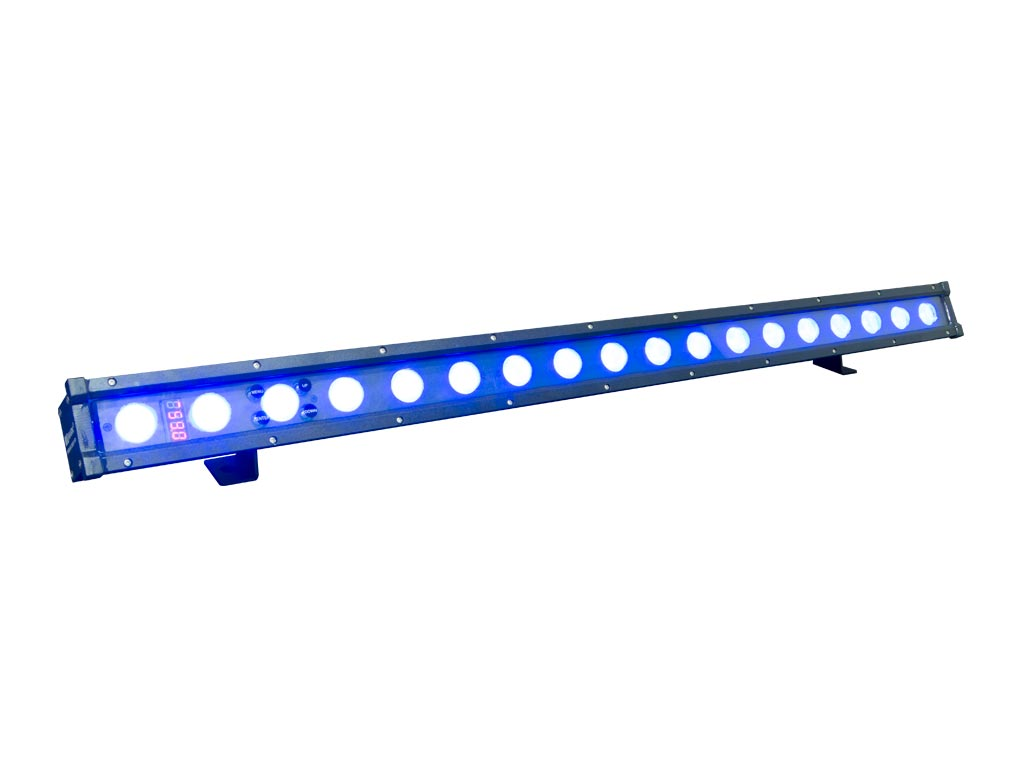

LED Lighting Bar.
MBAR 831 IP is a light bar that incorporates 18 RGB LEDs of 3W. Its aluminium housing and wiring system allow it to be installed outdoors thanks to its IP 65 rating. It has Auto (with several programmes), master/slave and DMX 3, 4, 6 and 9-channel operating modes and two different 3-channel modes, including general dimmer, dimmer for each primary colour, strobe, programme execution and transitions between colours. It also incorporates 4 different dimming curves (linear, quadratic, inverse quadratic and "S" shaped), all of them accessible both by DMX and by configuring the interface with the touch buttons. In addition, all these curves have a version with slow transition.
Features
- 18 x 3 W RGB LEDs 60 W.
- 3 ,4, 6 and 9 DMX channels.
- 45º beam angle.
- IP 65
| Light engine | 18 x 3 W RGB LEDs |
| Power | 60 W |
| Beam angle | 45º |
| DMX channels | 3, 4, 6, 9 channels |
| Operating modes | Auto, Master/Slave, DMX |
| Housing material | Aluminium |
| Colour | Black |
| Rigging | 2 lateral fixing wings |
| IP Protection | IP 65 |
| Power supply | AC 100-240V 47/63 Hz |
| Dimensions | 1001 x 69 x 119 mm |
| Weight | 4.1 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 1.00 | 0.07 | 0.12 | 4.10 |
| Box | 0.15 | 1.04 | 0.11 | 4.66 |
| Master Carton | 0.30 | 1.05 | 0.25 | 19.78 |
MBAR 381 IP uses casting aluminum housing, designed in a fashion form. It adopts high power 3-in-1 LED, which refers to single LED is made of R,G,B 3-in-1 LED, and long life span, low consumption, good color mixing effect and high brightness are the most prominent features. Each kind of LED can be independently dimmed. The built-in programs include dimming stroble, gradual change and fading. It uses power switch, performs low weight and consumption, stable capability and long life. Standard DMX 512 signal is requested. There are available several working modes: DMX (with severals programs), DMX and Master/Slave.
