Lighting

MATRIX LED 180

28MAR040
WW
LED
DMX

Blinder. Matrix with 36 LEDs white warm colour of 3W each one. DMX: 5 and 36 channels.

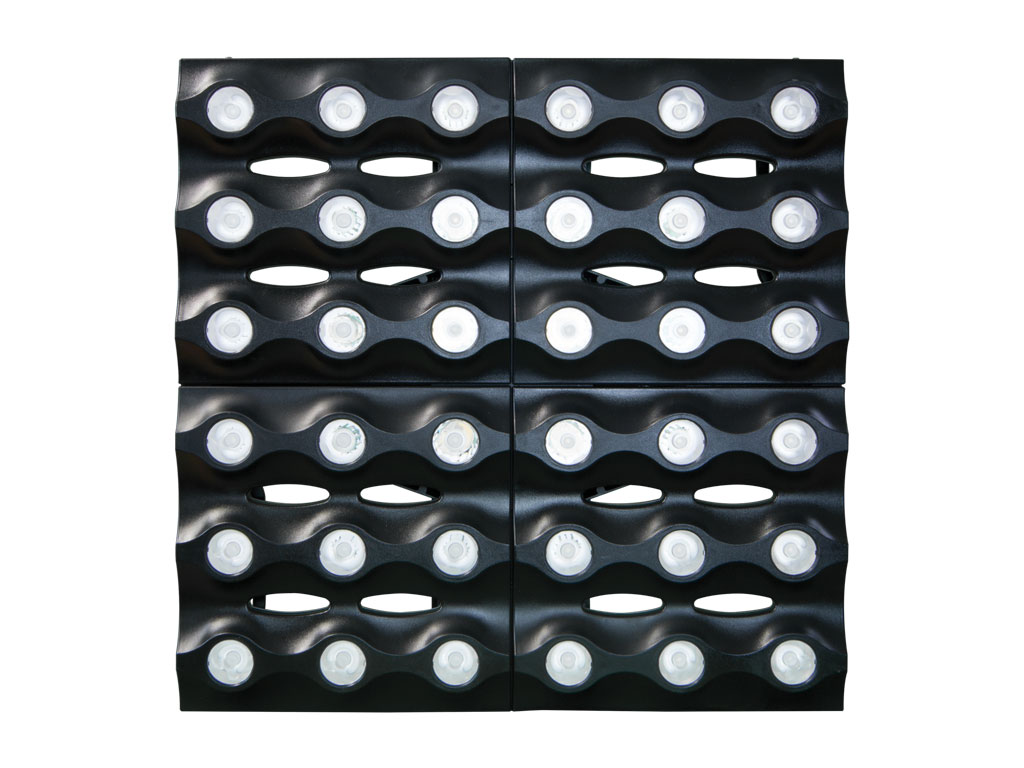

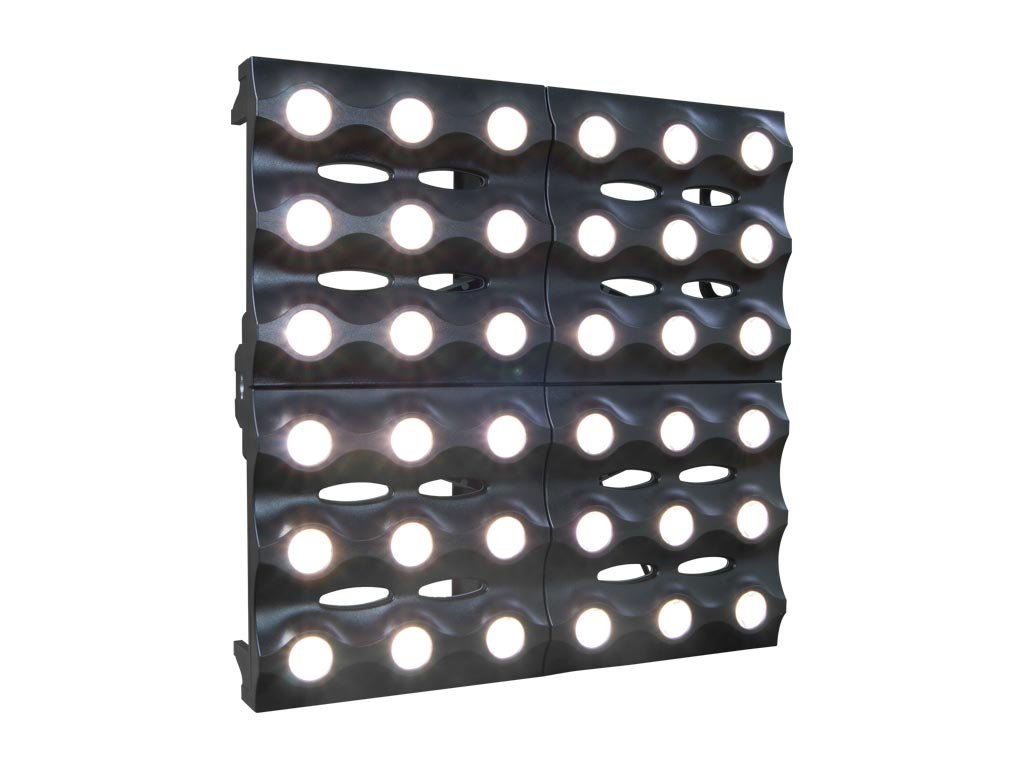

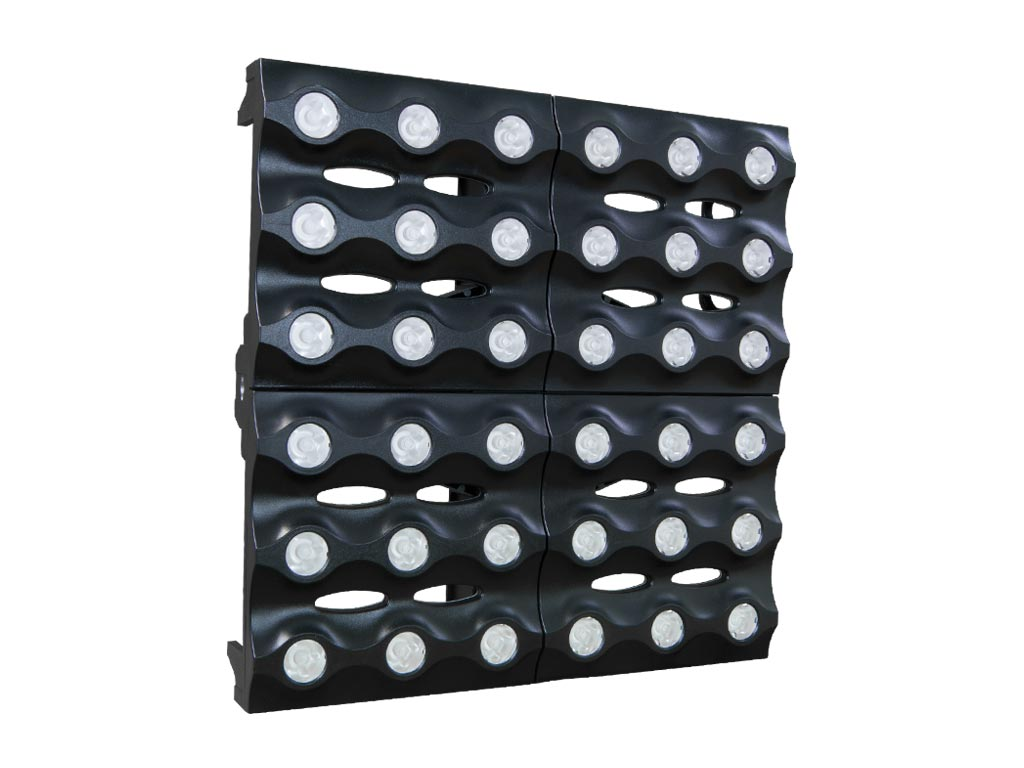

MATRIX LED 180 is a blinder effect that includes a matrix with 36 warm white colour LEDS up to 3W. These brilliant LEDs allow to obtain a high light power, very adequate in live spectacles, touring, etc.

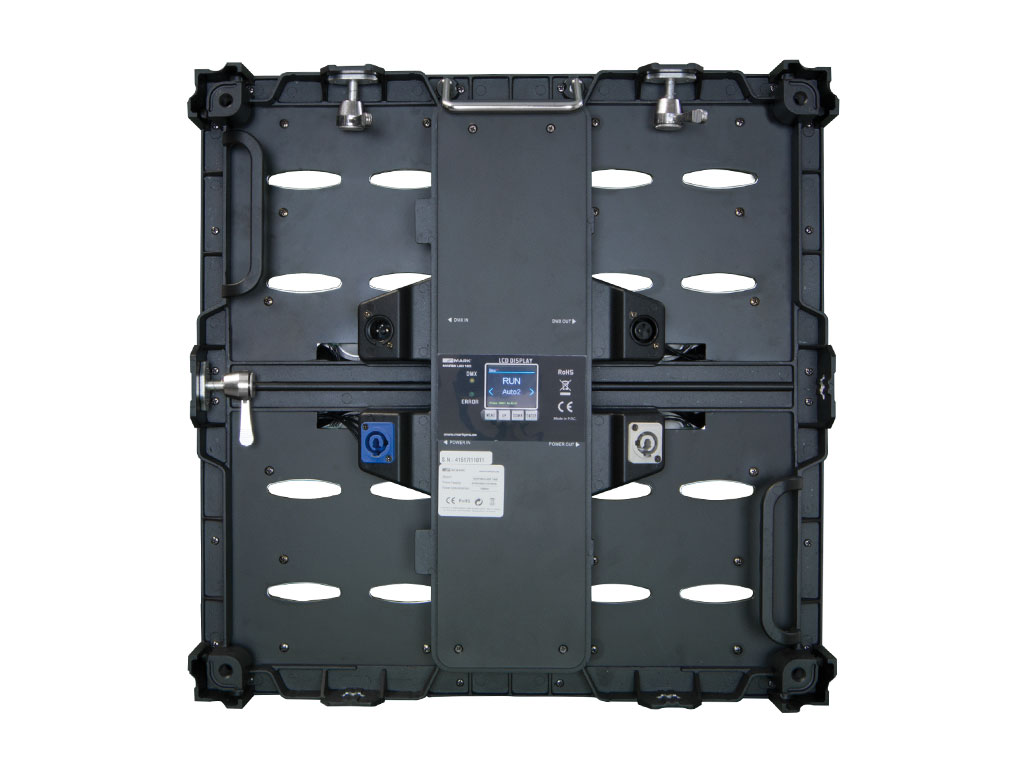

The configuration interface has a LCD display with all information and buttons to navigate through menus, selecting parameters such as:  operating modes, manual mode configuration, display information and time info for several variables.

It includes 2 DMX modes: 5 channels (dimmer, strobe and inner chases) and 36 channels (for individual LED dimerization).

This unit incorporates fixation systems in order to create a bigger matrix with several units. It can be used in stages as blinder purposes or where we want to create lighting dot patterns.

Its metallic frame ensures the firmness of the whole and its brackets allow to incline it.


Power Supply
90-250 V 50/60 Hz
Consumption
130W
Light source
36x3W Warm white colourLEDs
Dimmer
0-100 Linear Adjustment
DMX Channels
5 and 36 channels
Mode
DMX 512 /Audio/Auto/Manual/Master-Slave
Input connections
3 pin XLR
Output connections
3 pin XLR
Dimensions (WxHxD)
500x 500 x 80 mm
Weight
7,2 Kg

Length(m)Width(m)Height(m)Weight(kg)
Product0.080.500.507.20
Box0.570.150.588.12
Master Carton0.580.340.6018.04
  • Blinder effect which includes 36x 3W Warm white colour LEDs.
  • LCD display and interface for setting functions.
  • 5 & 36 DMX channels for control.
  • Up to 25 internal chases with speed control.
  • Shut-off timer.
  • Individual control for each LED.
  • Handle and fixation system to greater a bigger matrix.
  Manual
Download
