Weight: 225 kg (496.04 Lb).
Min load: 30 kg (66.14 Lb).
Max load: 370 kg (815.71 Lb).
Min height: 1.98 m (6.5 ft).
Max height: 6.72 m (22.05 ft).
Unfolded base: 2.09 x 1.93 m (6.86 x 6.33 ft).
Folded base: 0.70 x 0.60 m (2.3 x1.97 ft).
Truss adapters for a convenient lifting of any truss.
"M" adapters to lift cylinder objects.
Composition: 6 x 19+1.
Diameter: 7 mm.
Resistance: 1770 N / mm2.
Drum diameter capacity: 48 mm.
Reduction range: 10.5 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.
Four profiles made of extruded aluminium.
Powerful, oversized auto-locking bolts.
Dual reinforcing bars on the back of the lifter for additional reinforcement.
Internal Pendulum System (IPS).
Castors at the base of the lifter and two additional castors for horizontal transportation.
Available colours: Silver metal and black.

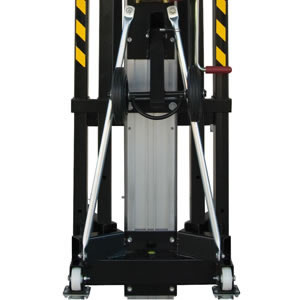

Dual reinforcing bars at the back of the tower help to withstand the weight of the load during operation.

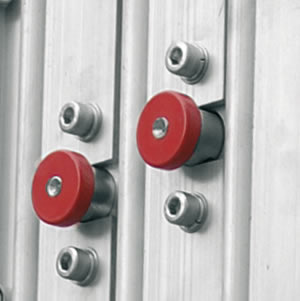

Powerful oversized locking bolts designed to support heavier loads with ease during lifting operations.

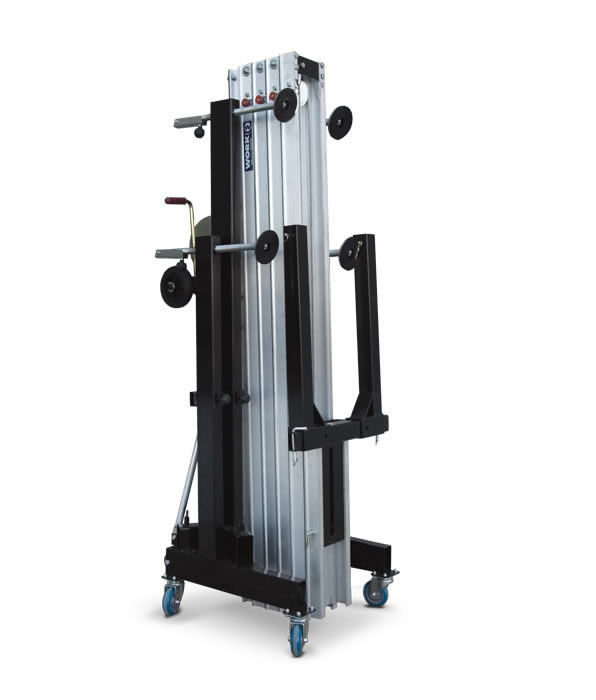

Two additional castors and a tow handle for transporting the lifter in horizontal position.

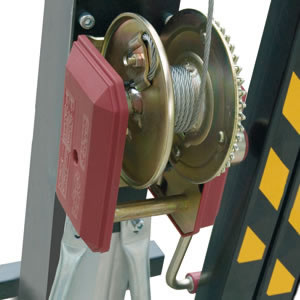

WORK® cares particularly for the quality of automatic brake winches manufactured to standard VGB 8/10.93 as a norm.
Profiles are reinforced on both sides to reduce stress when the profiles are deployed.
All lifters from the 400 series are fitted with castors making movement effortless.
Convenient stowing bracket for stabilizer legs during transportation.
Oversized heavy duty steel cable designed to withstand repeated fold/unfold operations with ease - Cable guard guides and protect cables from damage and injury.
LW 465 R features an integral spirit level for safety ensuring lifter balance. Protects the load against involuntary movement during lifting operation.
All lifters from the 400 series feature high resistance struts and stabilizers with rubber feet.
Triple safety construction secures profile sections: automatic-brake winch, auto-locking bolts and internal pendulum system (IPS).
New Internal pendulum system (IPS) by WORK®. Locks profiles together for maximum security.
