Lifters and Truss

LW 461R

70LWN461

Pro lifting tower

LW 461 R is the third model of the 400 series. While the design follows the same philosophy of the previous models, its features clearly offers superior performance.

Made of aluminium and composed of four profiles, LW 461 R lifts from the ground loads of 250 kg up to heights of 6.35 meters. The lifting operation from the ground is very convenient allowing the user to manage heavy loads with ease.

LW 461 R also includes two new features for an easy and safe transport: a hold-down bar which secures the profiles during transport, two additional transit castors and a tow handle for transporting the tower in a horizontal position.

LW 461 R is available in  black finish


Weight: 146.2 kg (322.32 Lb).
Min load: 30 kg (66.14 Lb).
Max load: 250 kg (551.16 Lb).
Min height: 1.91 m (6.27 ft).
Max height: 6.35 m (20.83 ft).

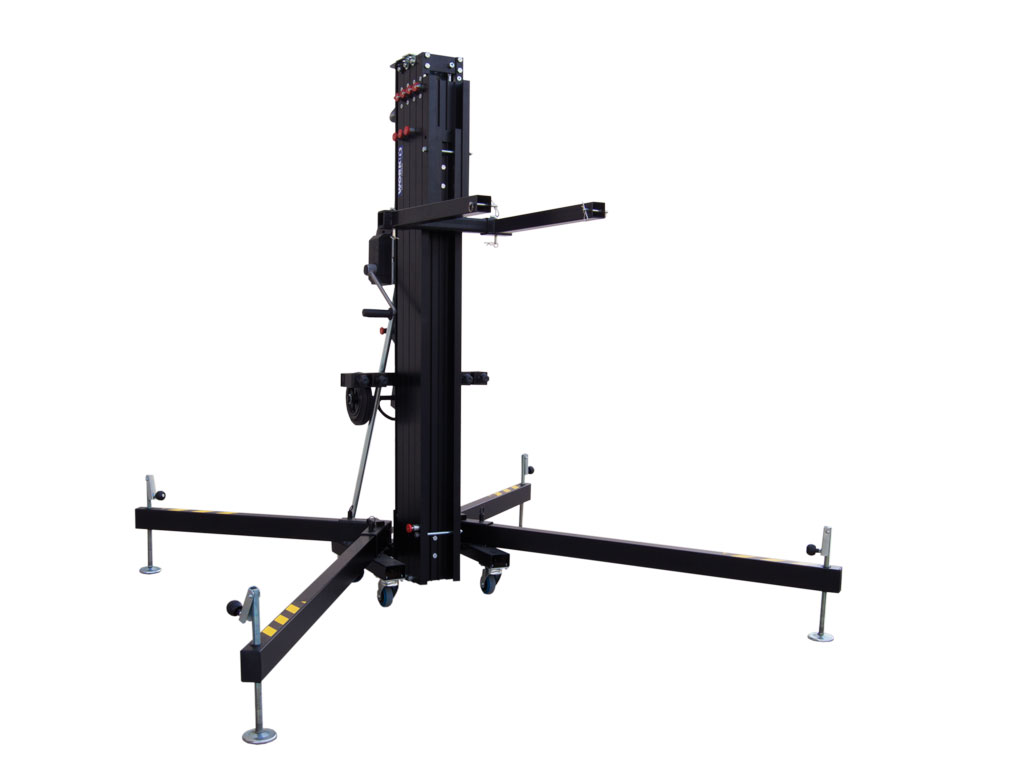

Unfolded base: 1.96 x 1.79 m (6.43 x 5.87 ft).

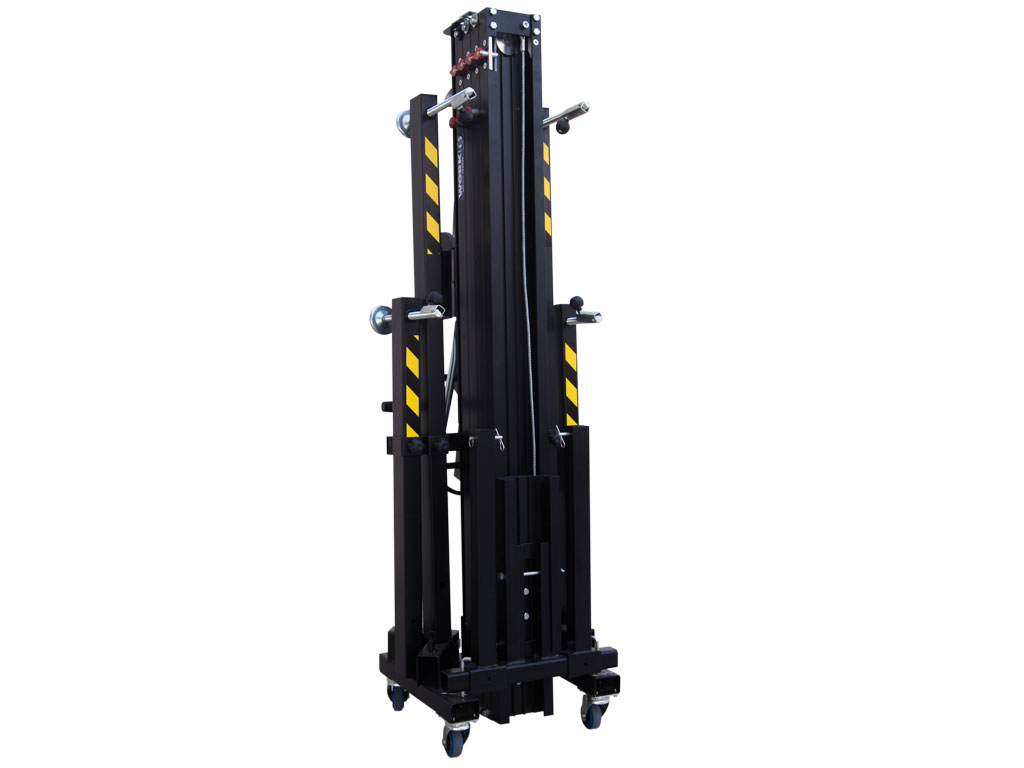

Folded base: 0.51 x 0.48 m (1.67 x 1.57 ft).













Accessories:
Truss adapters for a convenient lifting of any truss.
"M" adapters to lift cylinder objects.
Cable:
Composition: 6 x 19+1.
Diameter: 6 mm.
Resistance: 1770 N / mm2.
Winch:
Drum diameter capacity: 48 mm.
Reduction range: 3.75 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.
























































































































































































Four profiles made of extruded aluminum.
Powerful, oversized auto-locking bolts.
Dual reinforcing bars on the back of the lifter for additional reinforcement.
Castors at the base of the lifter.
Available colour: Black.
Dual reinforcing bars at the back of the tower help to withstand the weight of the load during operation.
Powerful oversized locking bolts designed to support heavier loads with ease during lifting operations.
Two additional castors and a tow handle for transporting the lifter in horizontal position.
WORK® cares particularly for the quality of automatic brake winches manufactured to standard VGB 8/10.93 as a norm.
A hold-down bar to secure the profiles during transportation.
New patented steel profile cap designed for added rigidity to the tower.
A double handle winch (optional) is available, for a fast and effortless fold/unfold operation.
Heavy duty grab on the upper part of the lifter allows greater control of the lifter during transport.
LW 461 R features an integral spirit level for safety ensuring lifter balance. Protects the load against involuntary movement during lifting operation.
All lifters from the 400 series feature high resistance struts and stabilizers with rubber feet.
All lifters from the 400 series are fitted with castors making movement effortless.
Convenient stowing bracket for stabilizer legs during transportation.
Oversized heavy duty steel cable designed to withstand repeated fold/unfold operations with ease - Cable guard guides and protect cables from damage and injury.
