Lifters and Truss

LW 265R

70LWN265

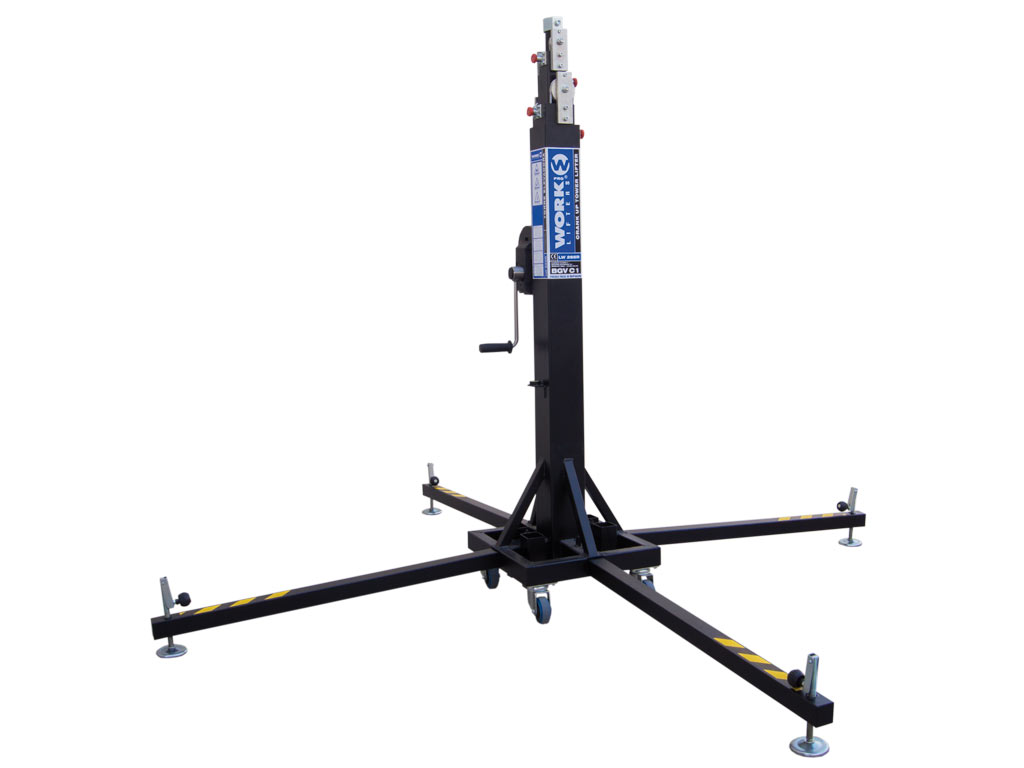

Telescopic lifter

The main difference between this model and the LW 255 R lies in their maximum height: LW 265 R can lift loads of 220 kg at 6.5 meters high (5.3 meters for LW 255 R) thanks to its five extensible steel profi les and its high traction resistant cable (guided by pulley featuring auto-lubricated bearing). In order to bear lifter strain, all the mobile system is fixed with safety fastener locks.

LW 265 R features adjustable stabilizers on its legs for a perfect stability in all kind of surface, including a bubble level to balance it. Four wheels ensure an easy use and transport.

The tower has been dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.

LW 265 R is available in black finish


Weight: 93.4 kg (205.91 Lb).
Min load: 25 kg (55.12 Lb).
Max load: 220 kg (485.02 Lb).
Min height: 1.80 m (5.91 ft).
Max height: 6.50 m (21.33 ft).
Diameter: 40 mm (1.57").
Unfolded base: 1.79 x 1.79 m (5.87 x 5.87 ft) .
Folded base: 0.46 x 0.46 m (1.51 x 1.51 ft).















Accessories: AW 140 / AW 240 / AW 340 / AW 540 / AW 440 / AW 20 / AW 12.
Cable:
Composition: 6 x 19.
Diameter: 6 mm.
Resistance: 1770 N / mm2.
Winch:
Drum diameter capacity: 48 mm.
Reduction range: 3.75 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.


















































































































































































































































Five extensible steel profiles.
Four wheels at the base of the lifter + handle for a convenient transport.
Dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.
40 mm diameter / suitable with many accessories.
Colour available: Black.

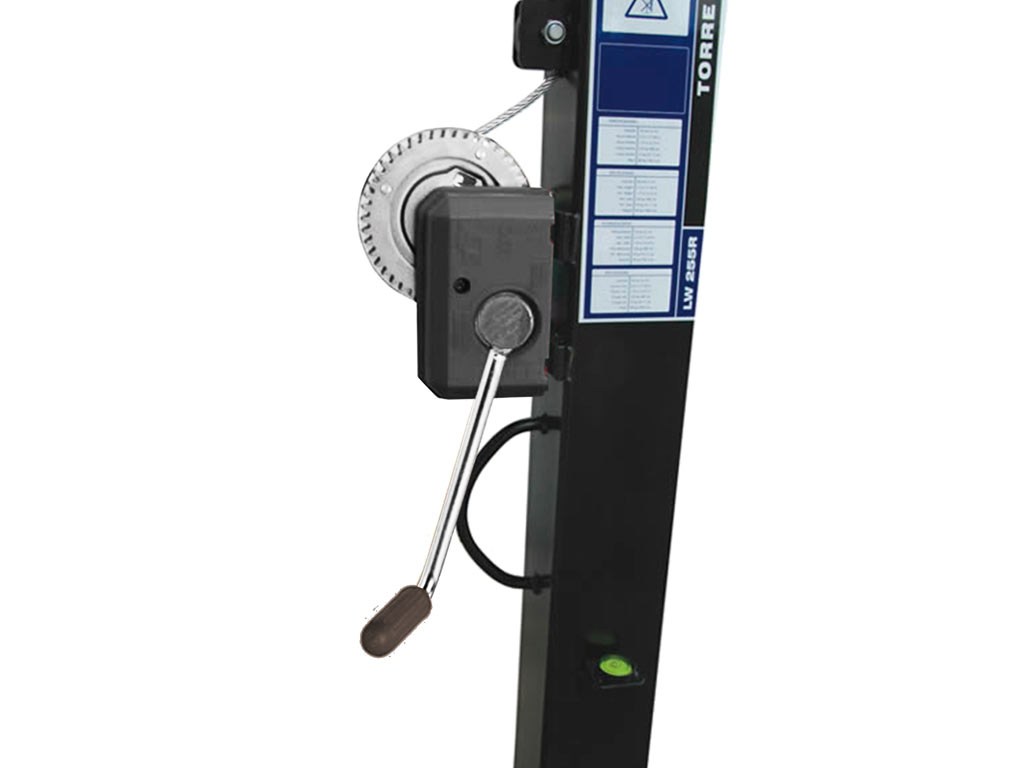

LW 265 R features a strong, high quality automatic brake winch that allows heavy load lifting. It has been designed according to the VGB 8/10.93 norm.

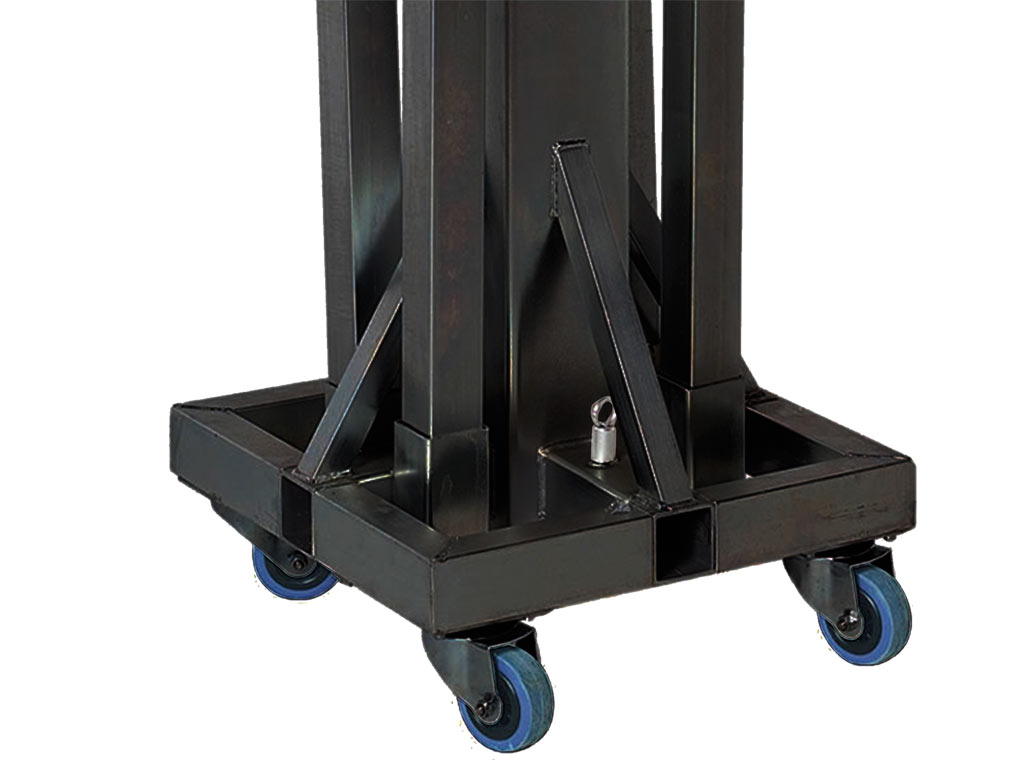

Four wheels have been added at the base of the lifter to move it easily.
Pulley system and safety pin on each section. Vertex with reinforcement.
High resistance stabilizer legs with rubber made base.
LW 265 R features a bubble level vial, useful to balance the lifter and ensures vertical lifting, protecting load from unexpected movements.
For more convenience during transport, stabilizer legs are put in the space provided.
