Weight: 73.2 kg (161.38 Lb).
Min load: 25 kg (55.12 Lb).
Max load: 210 kg (462.97 Lb).
Min height: 1.72 m (5.64 ft).
Max height: 5.3 m (17.39 Lb).
Diameter: 35 mm (1.4").
Unfolded base: 1.49 x 1.49 m (4.89 x 4.89 ft).
Folded base: 0.46 x 0.46 m (1.51 x 1.51 ft).
Accessories: AW 135 / AW 235 / AW 335 / AW 535 / AW 10 / AW 435.
Composition: 6 x 19 +1.
Diameter: 6 mm.
Resistance: 1770 N / mm2.
Drum diameter capacity: 48 mm.
Reduction range: 3.75 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.
Four extensible steel profiles.

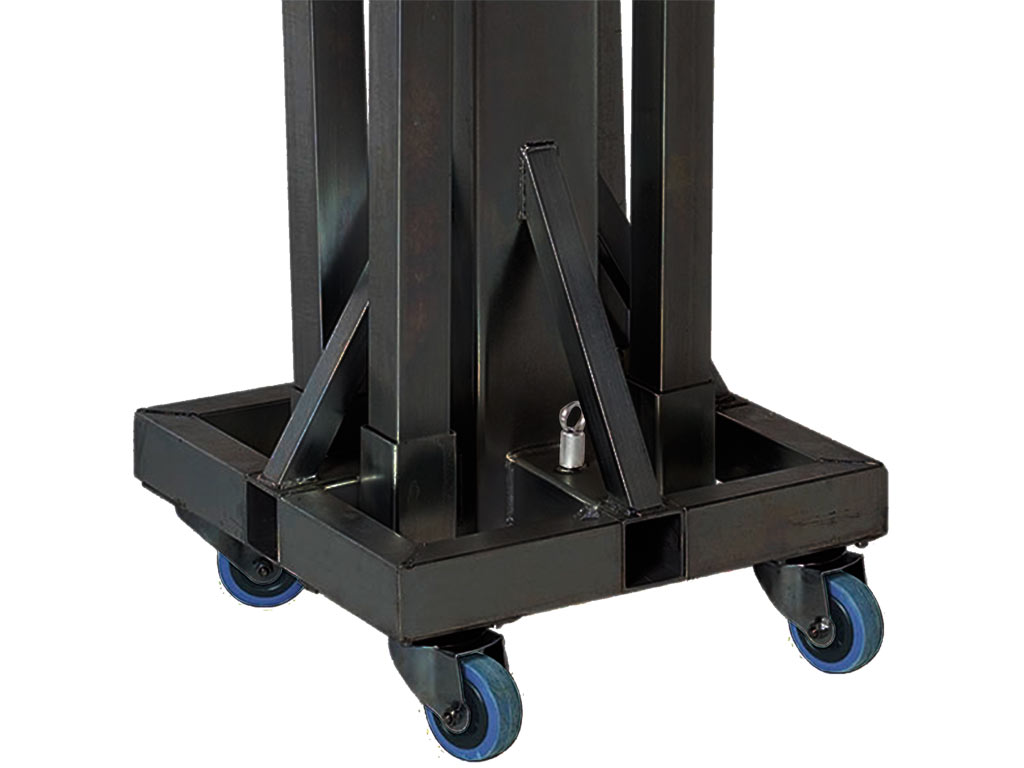

Four wheels at the base of the lifter + handle for a convenient transport.
Dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.
Diameter: 35 mm diameter / suitable with many accessories.
Colour available: Silver metal and black.
The high quality automatic brake winch has been designed according to the VGB 8/10.93 norm and TÜV 9591009 certification. Handle located on the body to transport the lifter.

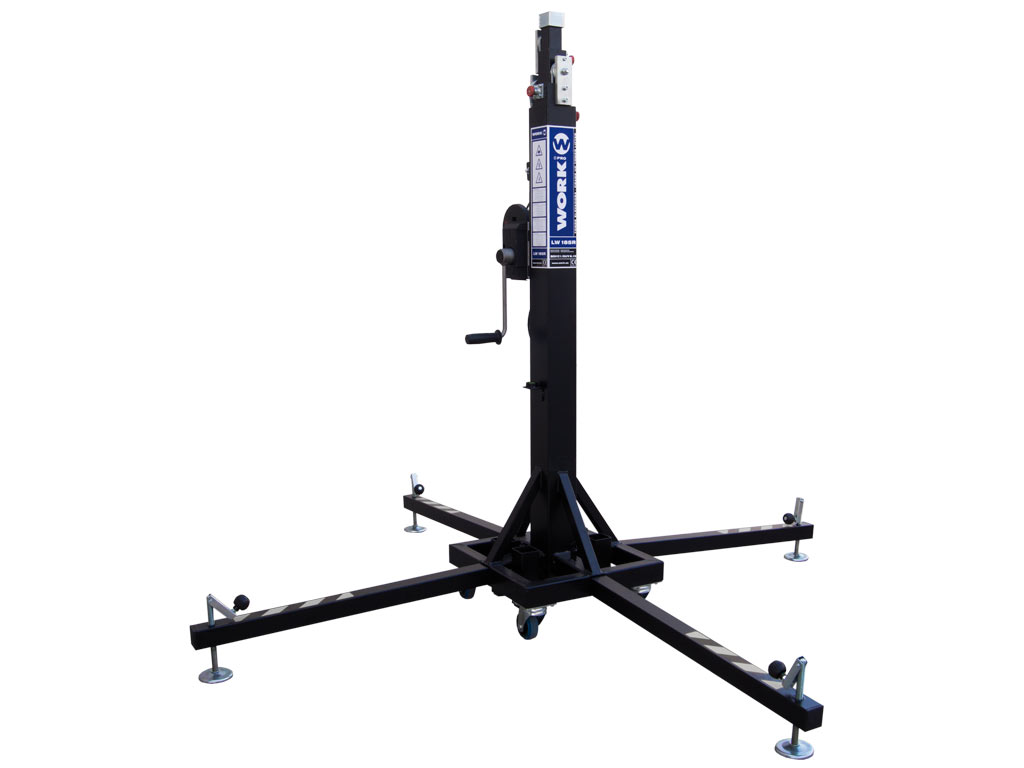

LW 185 R is a 4 wheel base lifter. For more convenience during transport, stabilizer legs are put in the space provided.

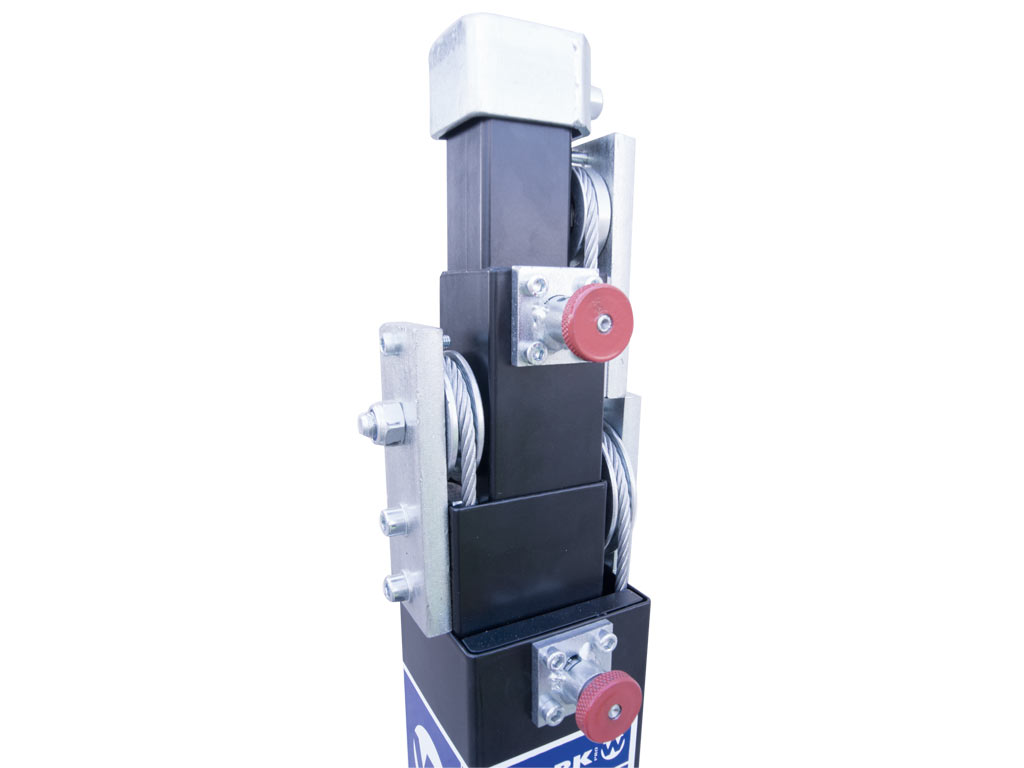

ulley system and safety pin on each section. Vertex with reinforcement.
High resistance stabilizer legs with rubber made base.
LW 185 R features a bubble level vial, useful to balance the lifter and ensures vertical lifting, protecting load from inadvertent movements.
