To be discontinued

LW 142R

70LWT143

Load: 100 Kg. Ø 35 mm. Height 4,05 mt. Weight 28 Kg.

It is easy to handle and lifts loads up to 4 meters high.

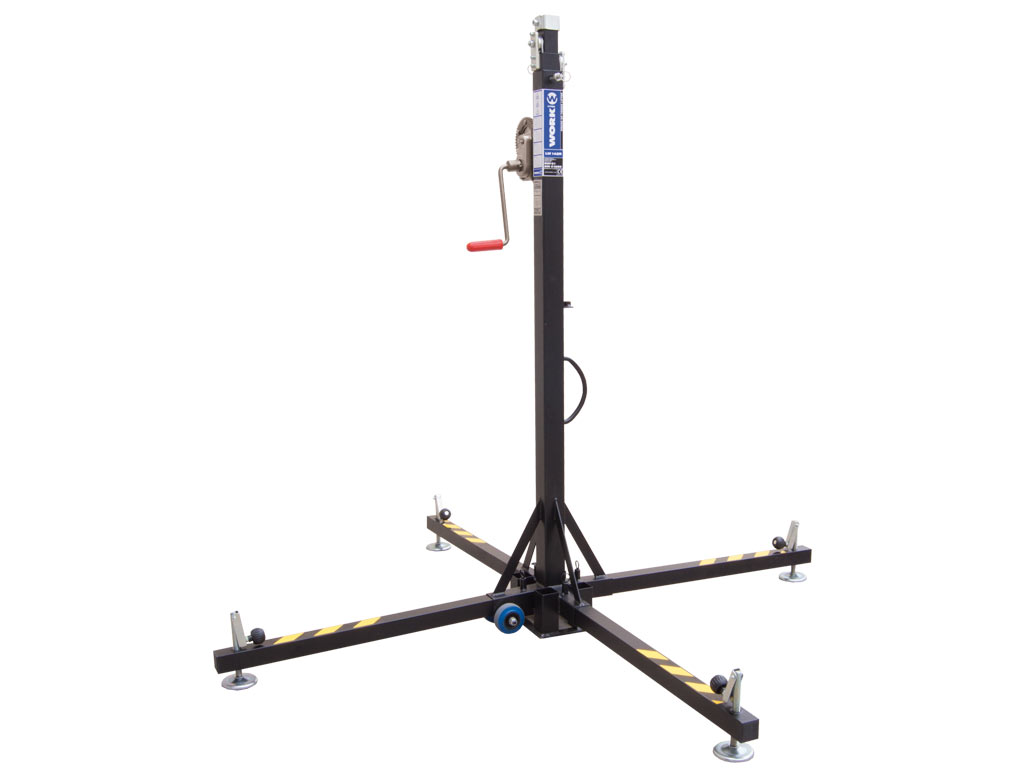

Three extensible steel profi les by means of a high traction resistant cable compose this telescopic tower. A pulley with auto-lubricated bearing system guides the cable for better safety use.

LW 142 R features adjustable stabilizers on its legs for a perfect stability in any surfaces. The bubble level ensures vertical lifting, protecting load from inadvertent movements. In order to bear tower strain, all the mobile system is fi xed with safety fastener locks. Two wheels below the winch ensure an easy use and transport.

The tower has been dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.

Available in black finish



Weight: 28.8 kg (63.49 Lb).
in load: 25 kg (55.12 Lb).
Max load: 100 kg (220.46 Lb).
Min height: 1.59 m (5.22 ft).
Max height: 4.05 m (13.29 ft).
Diameter: 35 mm (1.4").
Unfolded base: 1.29 x 1.29 m (4.23 x 4.23 ft).
Folded base: 0.36 x 0.36 m (1.18 x 1.18 ft).

































































































































































































































































Accessories: AW 135 / AW 235 / AW 335 / AW 535 / AW 10 / AW 435.
Cable:
Composition: 6 x 19 +1
Diameter: 4 mm.
Resistance: 1770 N / mm2.
Winch:
Drum diameter capacity: 40 mm.
Reduction range: 2.5 : 1.
Norms and certifications:
Lifter: CE; BGV C1.
Winch: 2006/43 EG; EN 1357; EN 12100.

Three extensible steel profiles.
Two wheels at the base of the lifter + handle for a convenient transport.
Dunked into a melting bath of zinc for a durable protection against corrosion and oxidation.
35 mm diameter / suitable with many accessories.
Colour: Black

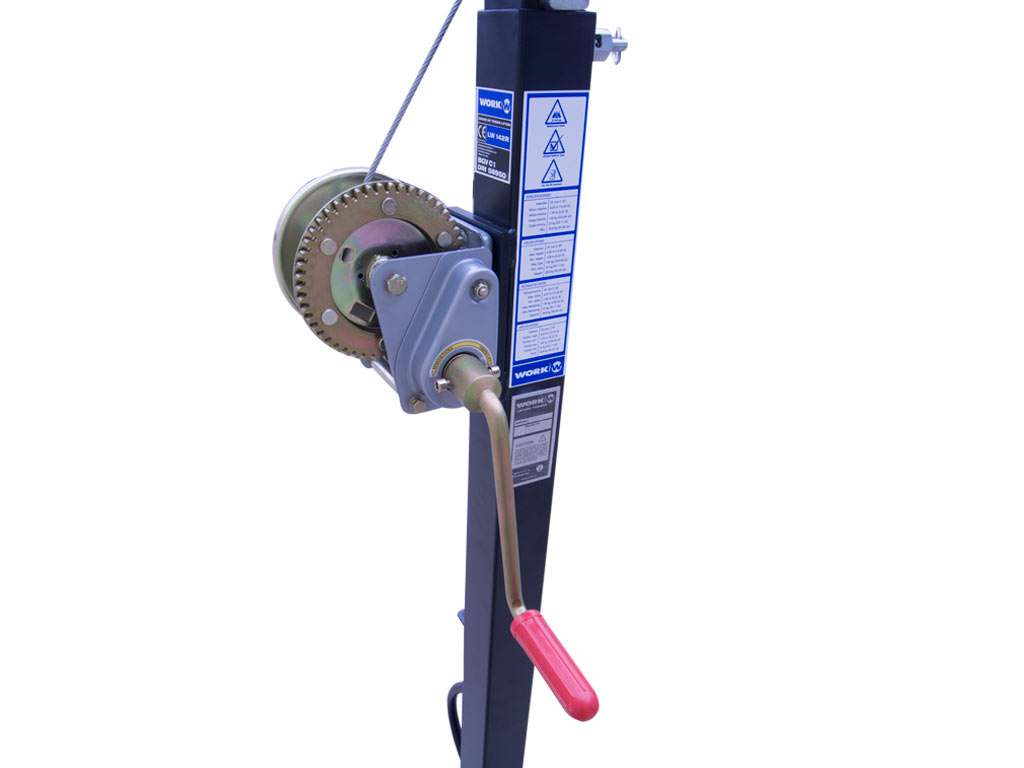

The high quality automatic brake winch has been designed according to the VGB 8/10.93 norm and TÜV 9591009 certifi cate.
For more convenience during transport, stabilizer legs are put in the space provided.
Pulley system and safety pin on each section. Vertex with reinforcement.
High resistance stabilizer legs with rubber made base.

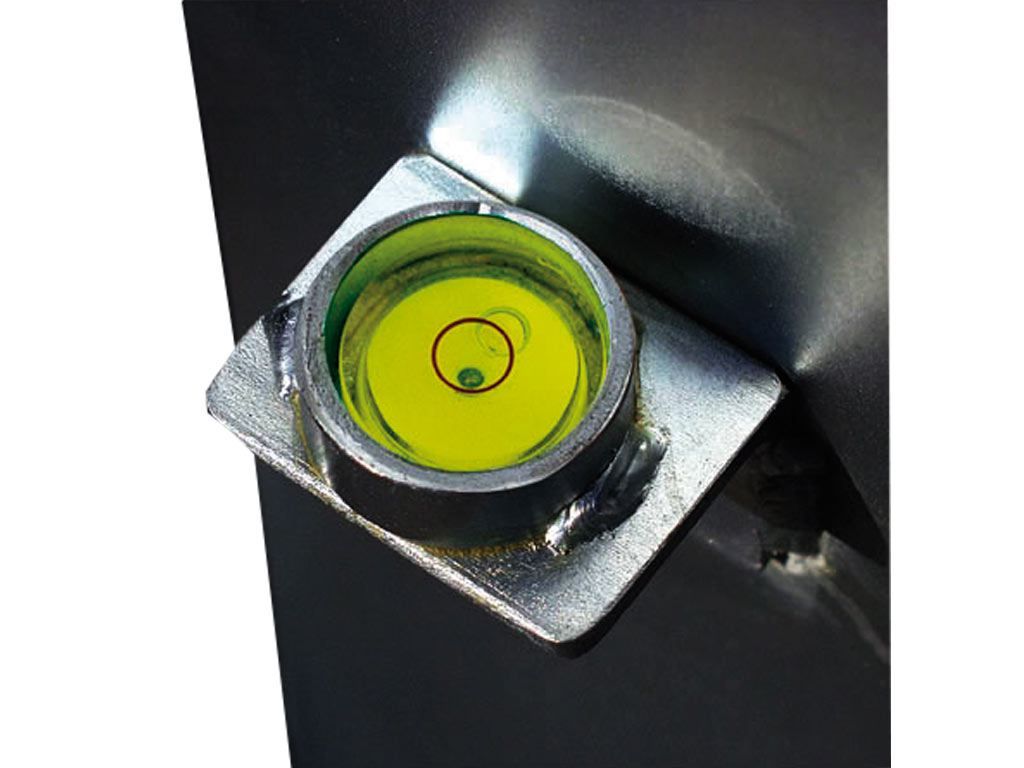

LW 142 R features a bubble level vial, useful to balance the lifter and ensures vertical lifting, protecting load from inadvertent movements.

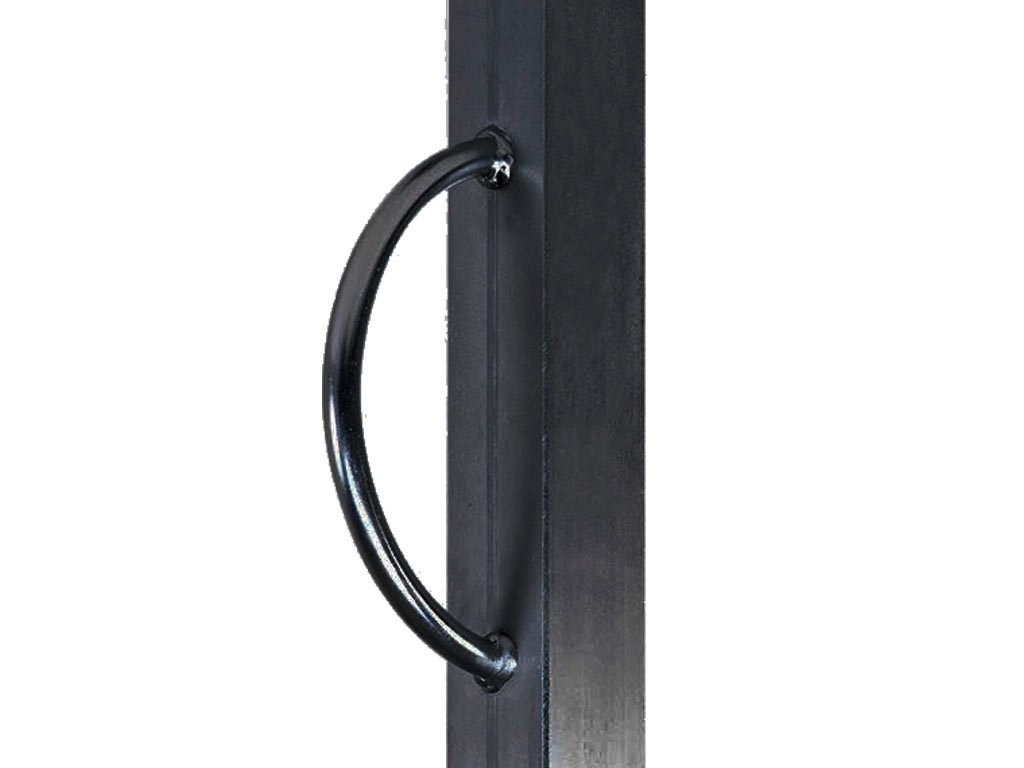

Handle located on the body of this lightweight lifter for transport.

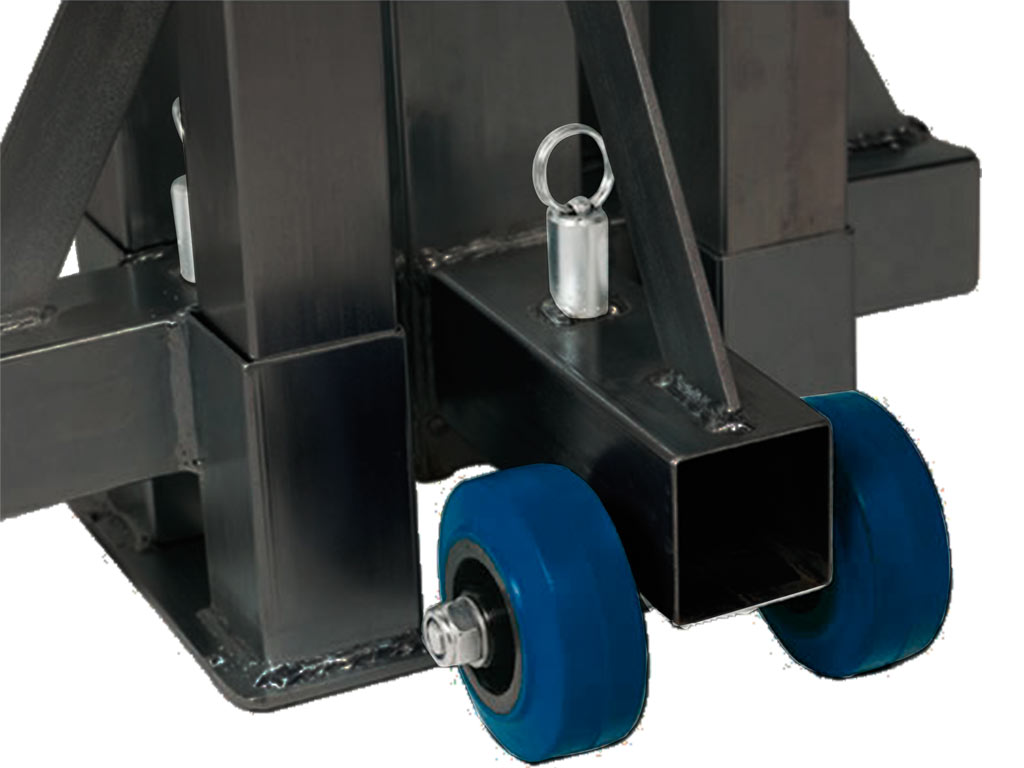

Two wheels at the base of the lifter allow an easy transport.
