To be discontinued

LW 135R

70LWT135

Telescopic filters

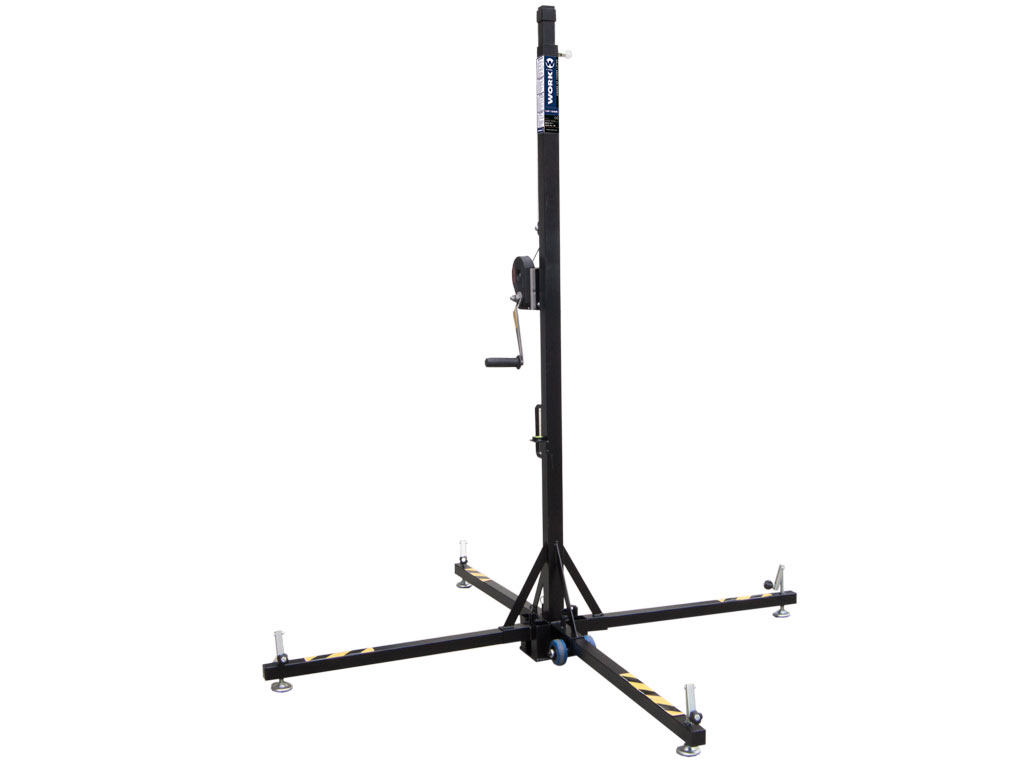

This telescopic tower for lifting is composed of two extensible steel profiles and a high traction resistant cable. The latter is guided by pulley with autolubricated bearing system. All the mobile system is fixed with safety fastener locks necessary to bear tower strain.

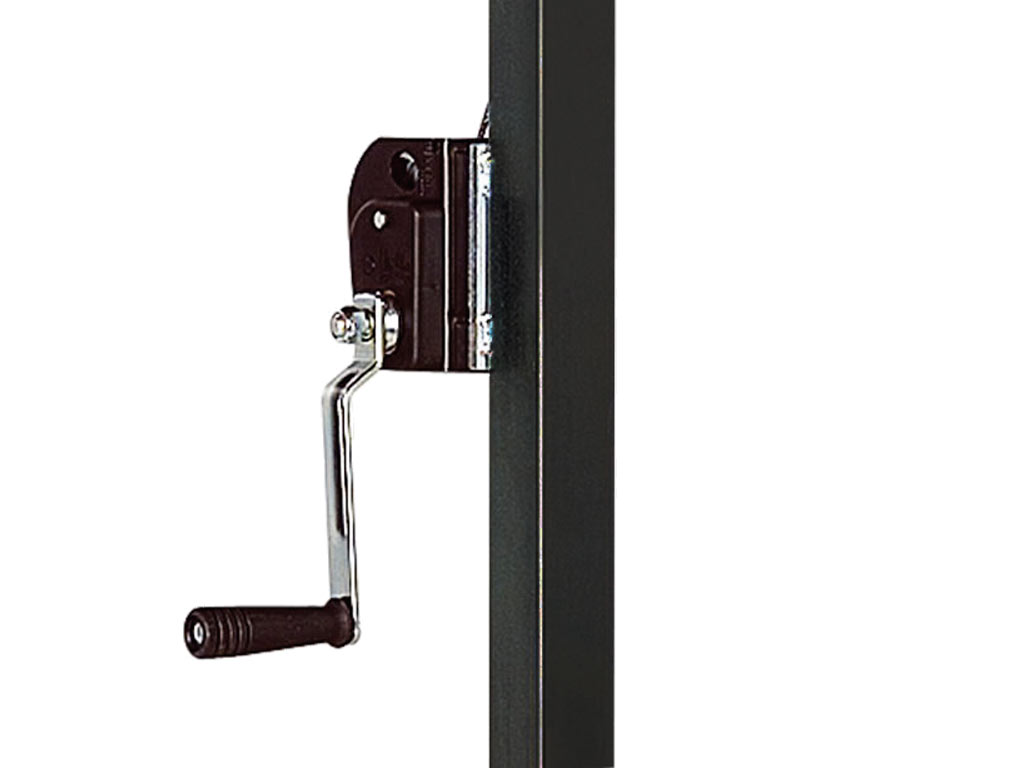

LW 135 R has two wheels below the winch to ensure an easy use and transport.

Available in black colour


- Weight: 24.4 kg (53.79 Lb).
- Min load: 25 kg (55.12 Lb).
- Max load: 100 kg (220.46 Lb).


Min height: 1.93 m (6.33 ft).
Max height: 3.5 m (11.4 ft).
Diameter: 35 mm (1.4").
Unfolded base: 1.26 x 1.26 m (4.13 x 4.13 ft).
Folded base: 0.36 x 0.36 m (1.18 x 1.18 ft).


Two extensible profiles made of steel.
Two wheels at the base of the lifter + handle for a convenient transport.
35 mm diameter / suitable with many accessories.
Colour available: Black
Space provided for stabilizer legs during transport.
Pulley system and safety pin on each section. Vertex with reinforcement.
High resistance stabilizer legs with rubber made base.
LW 135 R features a bubble level vial, useful to balance the lifter and ensures vertical lifting, protecting load from inadvertent movements.

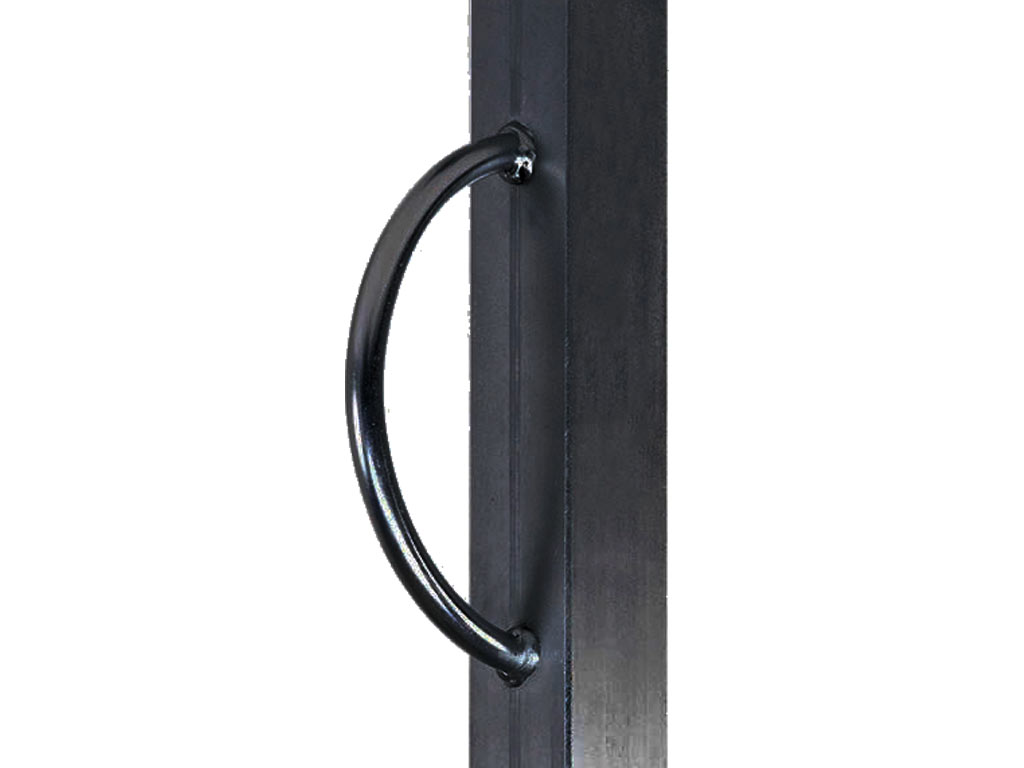

Handle located on the body of this lightweight lifter for an easy handling.
Two wheels at the base of the lifter allow an easy transport.

  Manual
Download
  Manual
Download
