Audio Installation

IC 80 T

82MEG139
8Ohm
L100V

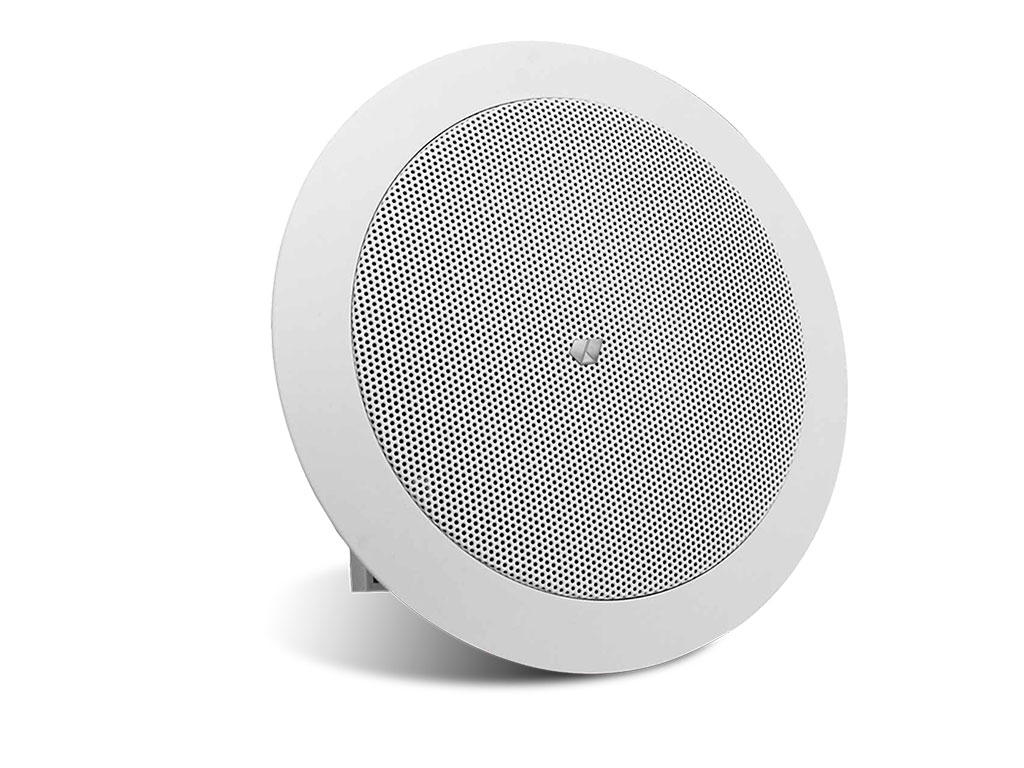

Ceiling speaker

IC 80 T is a ceiling loudspeaker composed of an 8" woofer, which can work in low impedance installations supporting a power of 6 W @ 8 Ohm, and in 100 volt line installations, having a power selector. (6/3 W).

Features

  • Low impedance and 70/100 V line.
  • ABS plastic enclosure.
Type2 ways. Passive
Low Impedance Power6 W @ 8 Ohm
L100V Power6 W (1k6 ohm) / 3 W ( 3k3 ohm)
L70V Power3 W (1k6 ohm) / 1.5 W ( 3k2 ohm)
TransducerWoofer 8"
Frequency Range50 Hz - 18 KHz
Coverage195º @ 1 KHz; 45º @ 4 KHz
Sensitivity92 dB
Max SPL99 dB
Mounting diameter240 mm
FixationRotating anchors
MaterialABS plastic
ColourWhite (RAL 9016)
DimensionsØ270 x 85 mm
Weight1.2 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.270.270.091.20
Box0.280.090.281.46
Master Carton0.580.370.3012.50
  Manual
Download
  Manual
Download
  Datasheet
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related Products

  • AT 106
    Volume control. 6W. 10 power taps
  • MKS 1400
    Speaker cable. Black. 100m roll
  • PA 90/2 USB
    Amplifier. 30 W @ 4 Ohm, Line 25/70/100 V. 2 MIC, 1 AUX. USB / SD. MP3 / WMA player. USB SD.

Alternative Products

  • IC 800 T
    Ceiling speaker. 6 W @ 8 Ohm. 6/3 W @ L100V. 8'' woofer.
  • IC 811 T
    Ceiling speaker. 40 W @ 8 Ohm. 40/20/10/5 W @ L100V. 8'' Woofer + 0.5'' Tweeter.
  • IC 8S
    Ceiling speaker. 30 W @ 8 Ohm. 30/15/8/5 W @ L100V. 6.5'' Woofer + 1'' Tweeter (rotatable).
