Audio Installation

IC 6 PRO A

82MEG115
AMP
DMX

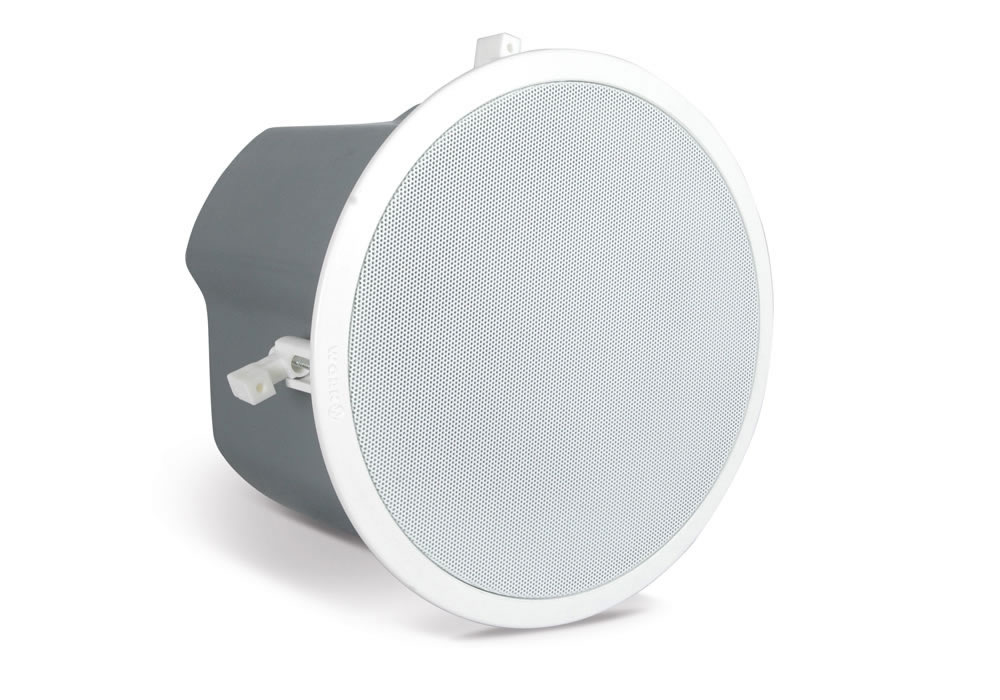

Self-powered ceiling loudspeaker

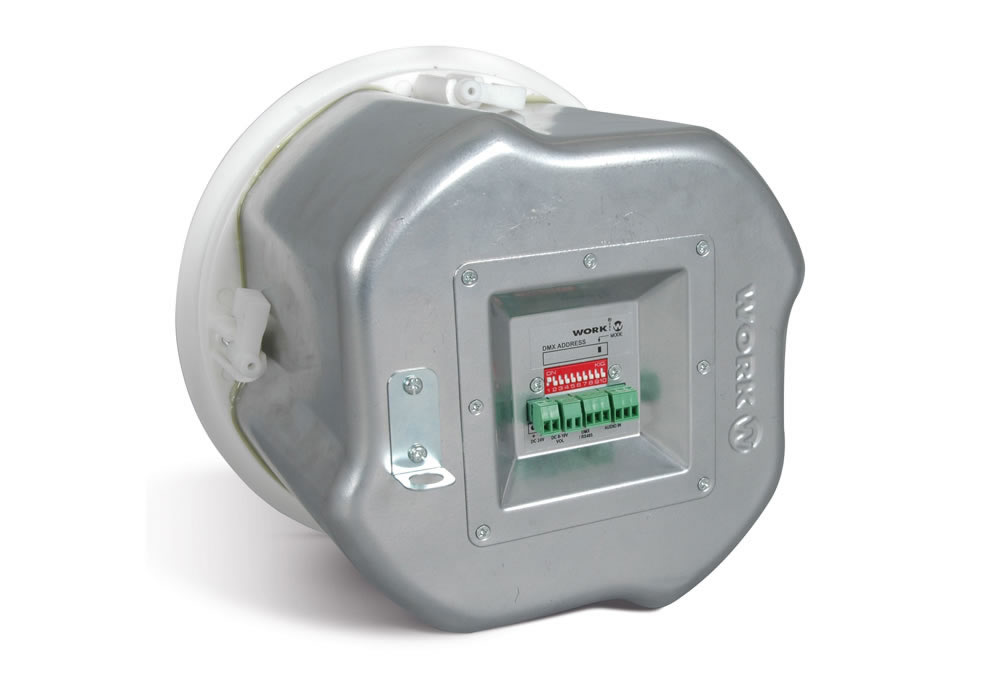

IC 6 PRO A is a ceiling loudspeaker with a 25 W DMX controlled amplifier. It uses a DMX channel to control the volume, as well as to turn the amplifier on and off (Standby mode for energy saving). It has DIP switches on the back to select the start DMX channel. The included class D amplifier features an output power of up to 25W @ 8 ohms. The balanced input allows working with long distance cables.

Features

  • Class D amplifier.
  • RS485 / DMX or DC 0-10V analog signal (for volume control).
  • On / Off (Standby Mode) by DMX.
  • Balanced input signal.
TypeSelf-powered. 2 vías
Amp Power25 W @ 8 Ohm
Input Impedance10 KOhm
LF TransducerWoofer 6.5"
HF TransducerTweeter 3/4"
Frequency Range60 Hz - 20 KHz
Sensitivity88 dB
Max SPL102 dB
Mounting diameter220 mm
Mounting depth230 mm
MaterialEnclosure: ABS plastic; Grille: metal
ColourWhite (RAL 9003)
Power supply24 V DC (adapter not included)
DimensionsØ241 x 171 mm
Weight2.8 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.240.240.172.20
Box0.280.280.232.46
Master Carton0.560.290.4710.66
  Manual
Download
  Manual
Download
