Audio Installation
IC 5S
82MEG107
8Ohm
L100V
Ceiling speakers

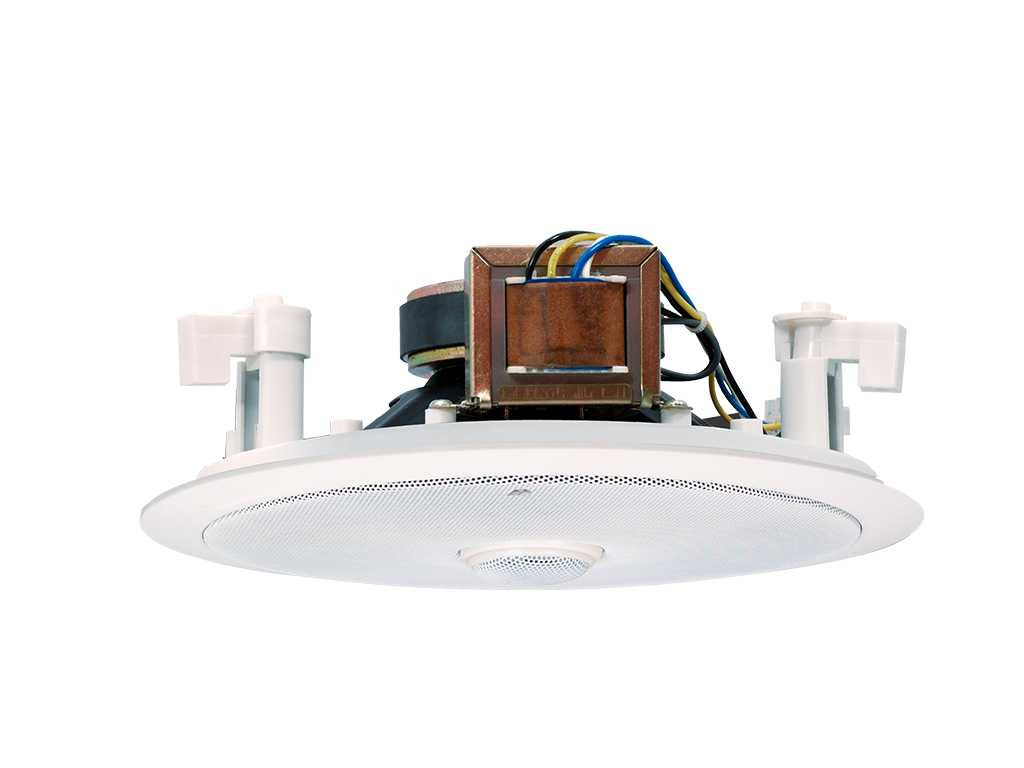

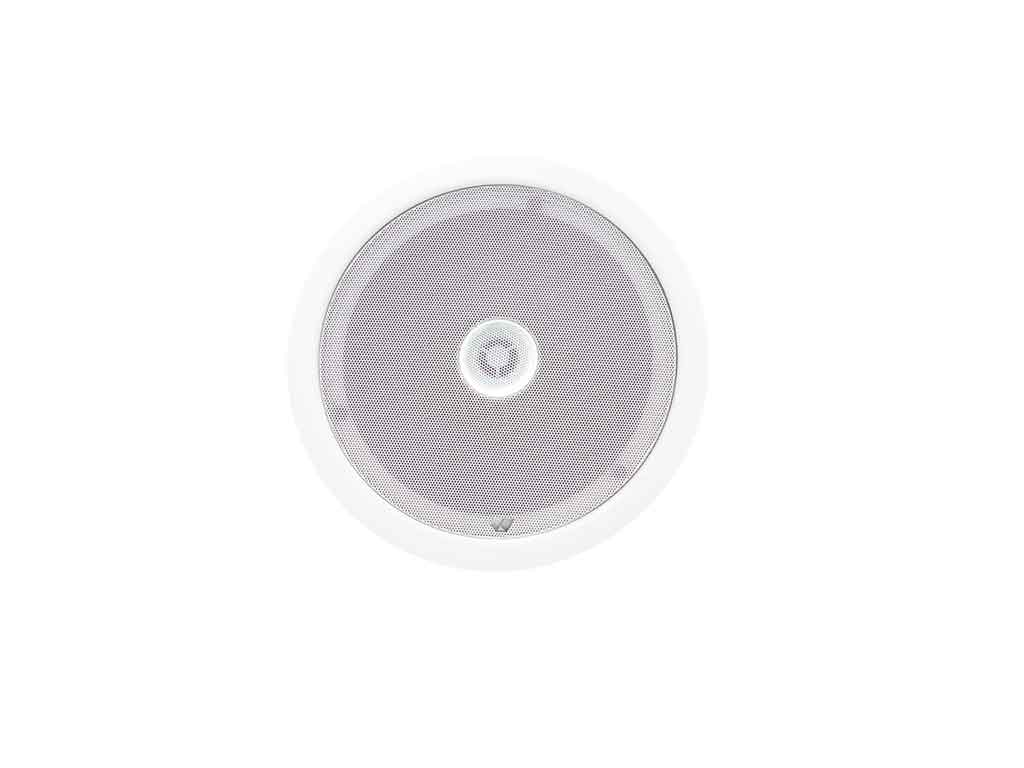

IC 5S is a ceiling loudspeaker composed of a 5.25 "woofer and a rotatable 1" tweeter, which can work in low impedance installations supporting a power of 10 W @ 8 Ohm, and in 70/100 volt line installations. , having for this a power selector (10/5 / 2.5 / 1.25 W).
Features
- Low impedance and 70/100 V line.

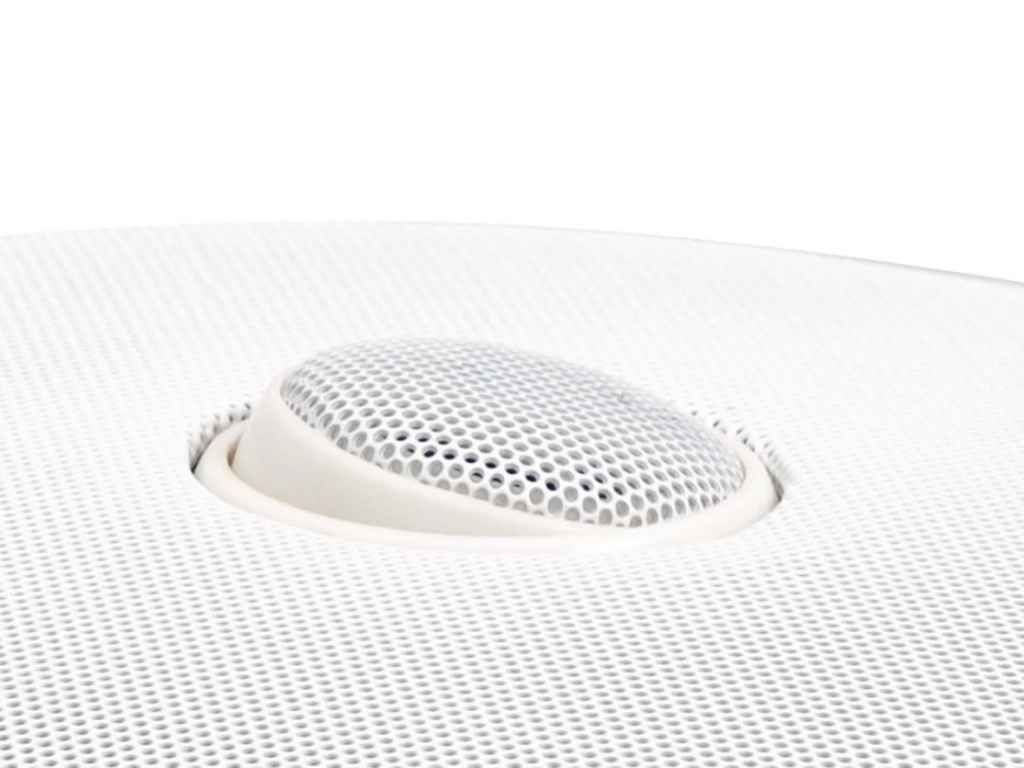

- Rotatable tweeter.
| Type | 2 way. Passive |
| Low Impedance Power | 10 W @ 8 Ohm |
| L100V Power | 10 W (1 KOhm) / 5 W (2 KOhm) / 2,5 W (4 KOhm) / 1,25 W (8 KOhm) |
| L70V Power | 5 W (980 ohm) / 2,5 W (1k96 ohm) / 1,25 W (4k1 ohm) / 0,6 W (7k5 kohm) |
| LF Transducer | Woofer 5.25" |
| HF Transducer | Tweeter 1". Rotable. |
| Frequency Range | 50 Hz - 20 KHz |
| Sensitivity | 88 dB |
| Max SPL | 98 dB |
| Mounting diameter | 172 mm |
| Material | ABS plastic |
| Colour | White (RAL 9003) |
| Dimensions | Ø197 x 80 mm |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.20 | 0.20 | 0.08 | 0.85 |
| Box | 0.23 | 0.10 | 0.23 | 1.20 |
| Master Carton | 0.48 | 0.44 | 0.26 | 10.26 |
Manual | IC 5S - Manual |  | Download |
