DUODIM
56UNI003
2 channels dimmer

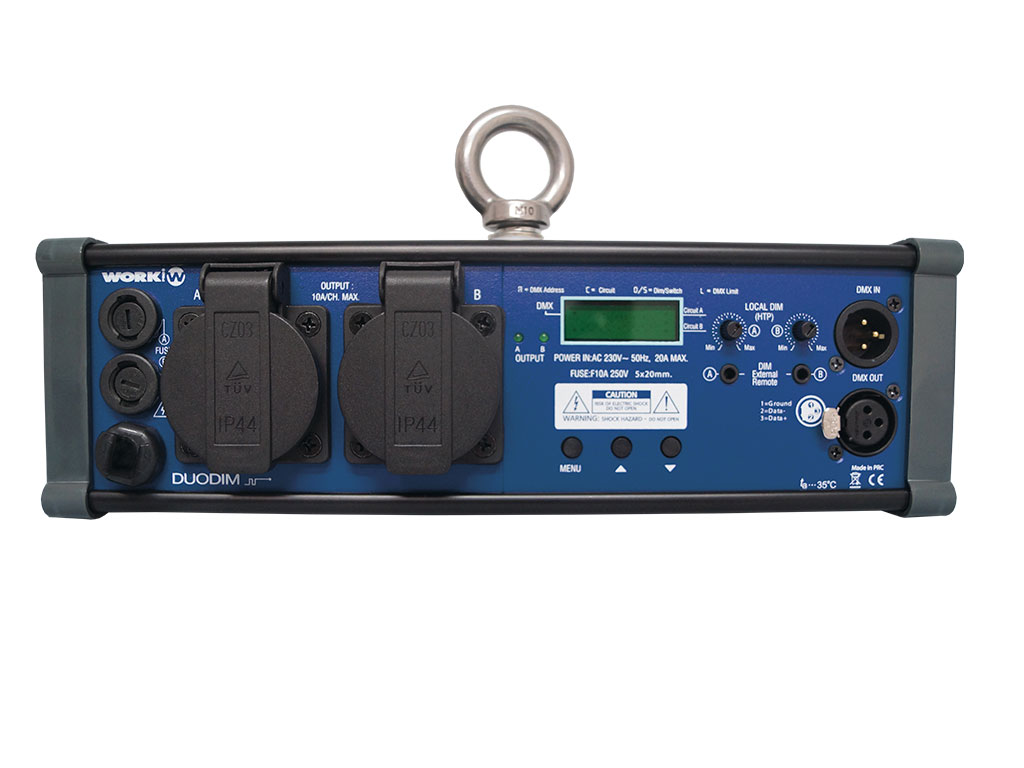

DUODIM is a ultra compact DMX dimmer featuring two channels (max. load: 10 A per channel). It can be used as a chaser to remotely switch lighting effects like scanner or moving head that do not have any assigned DMX channel. Thanks to its compact size, it can be easily placed on DIN rails or trusses.
The software provides an intuitive menu for parameters edition like maximum dimmer levels or DMX address channel. User can change from dimmer operating mode to chaser one (called Switch mode). The latter allows intensity manual adjustments for each channel. For maximum convenience, all the functions are shown on the display.
This dimmer is also compatible with switch devices like foot pedals, but also with connection panels when it is used as a driver. It includes one schuko connector with protection lid for power output.
Max. total current: 10 A per channel.
Number of channels: 2.
Output connection: 2 schuko connectors with protection lid.
DMX output: XLR3 pin.
DMX input: XLR3 pin.
Dimensions (WxHxD): 300 x 82 x 67 mm.
Weight: 2.72 kg.
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.07 | 0.30 | 0.08 | 2.72 |
| Box | 0.16 | 0.10 | 0.36 | 3.00 |
10 A channel load/channel.
Two operating modes: Dimmer or Switch.
DMX addressing, DIM Preset and DIM Limit.
Manual dimmer (HTP) to indicate threshold start.
Remotely controllable (optional).
Memory against power supply failure.
Link connection to other units.
Internal rail for clamp fastening.
