DMX PLAYER 5

56WOR002
REC
DMX

DMX recorder

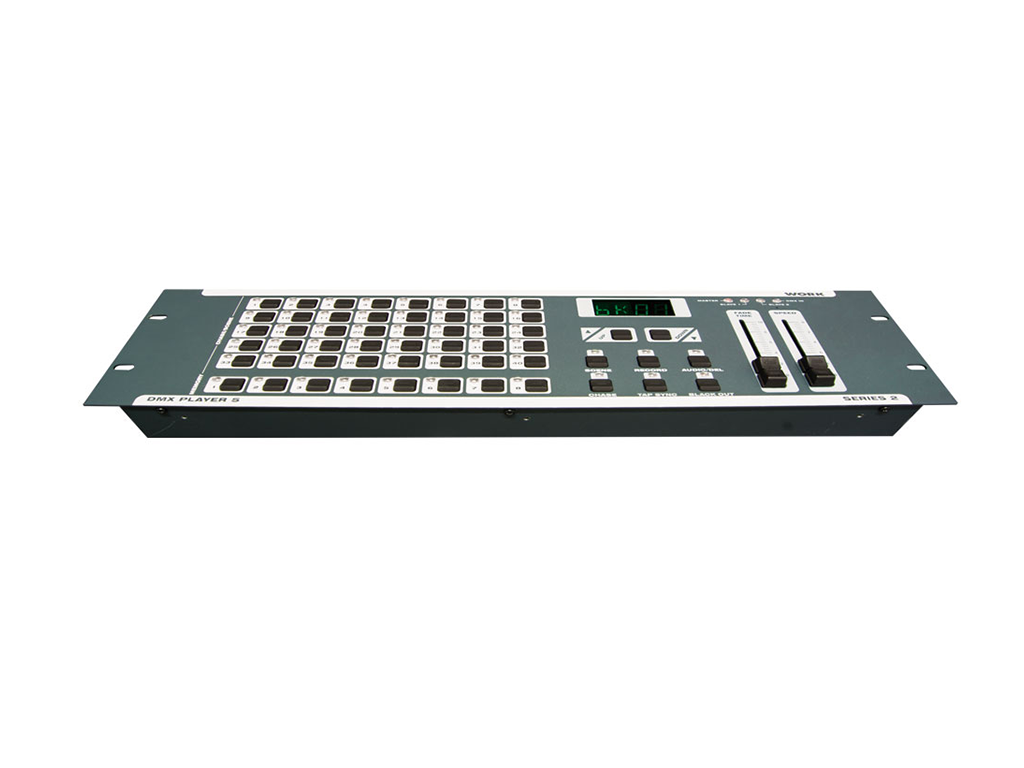

DMX PLAYER 5 is an advanced DMX player/recorder featuring 256 channels.Its control panel has direct access on internal memory to find and trigger chases, scenes or shows.

With its internal memory (24 banks of 40 scenes /total 960, 40 chases with up to 99 steps each and 8 shows with up to 99 scenes), it is very convenient when users only have to trigger shows or/and when they do not have any knowledge regarding programming. Thus, a lighting programmer can prepare a large number of scenes and final user will just have to click to trigger them.



Length(m)Width(m)Height(m)Weight(kg)
Product0.130.480.072.20
Box53.009.0018.003.80
  • 256 DMX channels + 40 additional switch channels (On/Off).
  • 24 banks of 40 programmable scenes.
  • Each scene consists in 256 DMX channes with activated fade time.
  • 40 chases, each one with 99 steps.
  • 8 shows, each one with 99 scenes (speed and fade time for independent scene).
  • Data exchange capacity between two units.
  • Master blackout function.
  • Internal microphone for audio synchronization.
  • Units can be linked in Mater/slave mode.
  • DMX polarity selector.
  • Memory against power supply failure.
  • Main supply: DC 9 V, 500 mA min (included power supply unit).
  • Dimensions (WxHxD): 483 x 132 x 73 mm.
  • Weight : 2.2 kg.
  Manual
Download
  Manual
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question
