Inputs: 8 double MIC inputs (with phantom) + LINE balanced and one additional MIC input. All of them have Euroblock connector.
Outputs: 8 outputs with Euroblock connector.
Control interface: TCP/IP, RS232 and GPI.
Control connections: RJ45 (Ethernet TCP/IP) , DB9 (RS232) and Euroblock (GPI).
Control software: WorkCAD Designer (included).

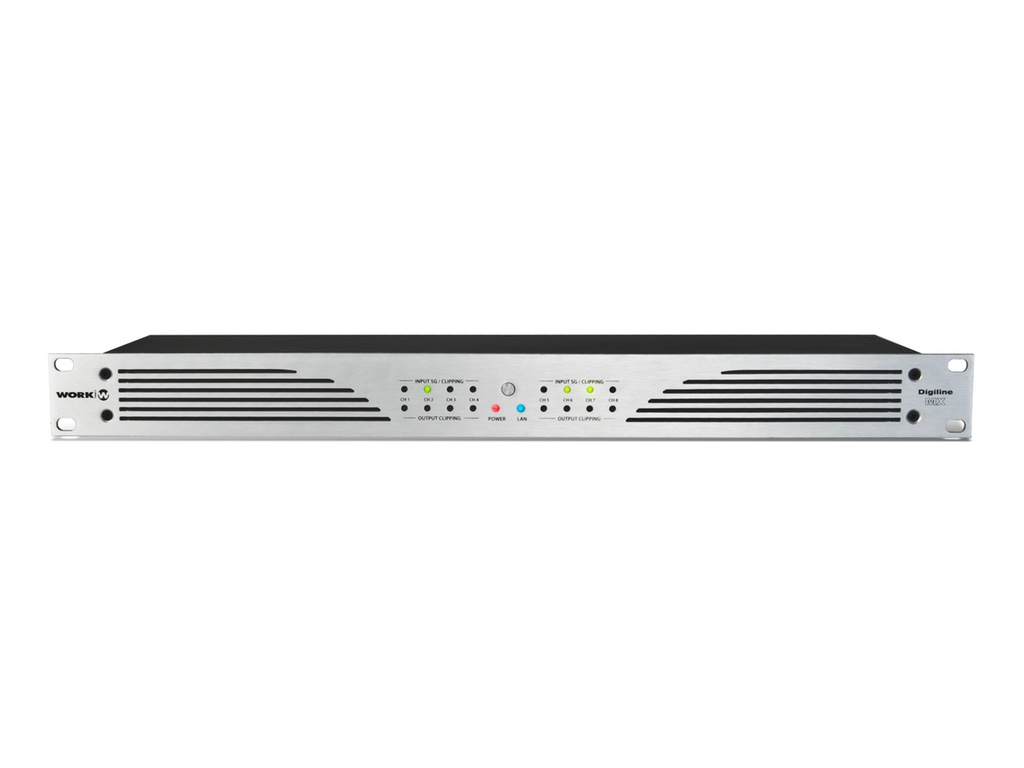

Control indicators: Frontal LEDs for signal presence, input & output clip.
GPIO terminals: 12 GPIO (TTL inputs/outputs selectables by software).
Input sensitivity: 0 dBu (20 dB PAD).
Phantom supply: 15 V MIC inputs (selectable).
THD+N: < 0.1 %.
Power requirement: 50 W.
Main supply: AC 90-264 V (automatic).
Dimensions (WxHxD): 483 x 44 x 229 mm.
Weight: 2.9 kg
Digital matrix mixer of 8 x 8 (each input is composed of 2 inputs: 1 Mic and 1 Line).
Independent processing of signal for each output.
Controllable through TCP/IP protocol, in order to control from a unique computer all the units connected to an Ethernet network.
Third party controllers can be connected to control Digiline by TCP/IP and RS232 thanks to the command reader incorporated by its firmware.
All MIC inputs are phantom powered.
Powerful software WorkCAD Designer for Digiline connexion through TCP/IP.
GPIO triggering mode to launch actions, presets, etc from a simple controller.
Matrix mixer: 8 mixers of 8 channels with reverse signal and mute for any channel.
Crossover: Butterworth type filters, Linkwitz-Riley and Bessel up to 4° order with up to 7 filters per output.
Equalizer: Equalizations with peak type curves, low pass, high pass, notch, low shelving, high shelving and band pass with up to 7 filter per output maximum.
Dynamic control: Common Limiter compressor for first 7 channels and an independent one for the last one.
Output channel volume control: Selectable by software and frontal potentiometer (36 dB to -109 dB range). 48 bit processing architecture with 76 bits of precision for most audio processing features.
Presets memory: 10 program memories available.
DSP Architecture: 32 bit processing with 40 bits of precision.
Oversampling: 8 x Oversampling with fifth order noise shaping @ 32-48 kHz; 4 x Oversampling @ 88.2 and 96 kHz; 2 x Oversampling @ 176.2 kHz and 192 kHz.
Digital De-emphasis: For 32,44.1 and 48 kHz.
