Audio Installation
CS 602
82MEG051
IP55
ABS
L100V
Bidirectional sound projectors.

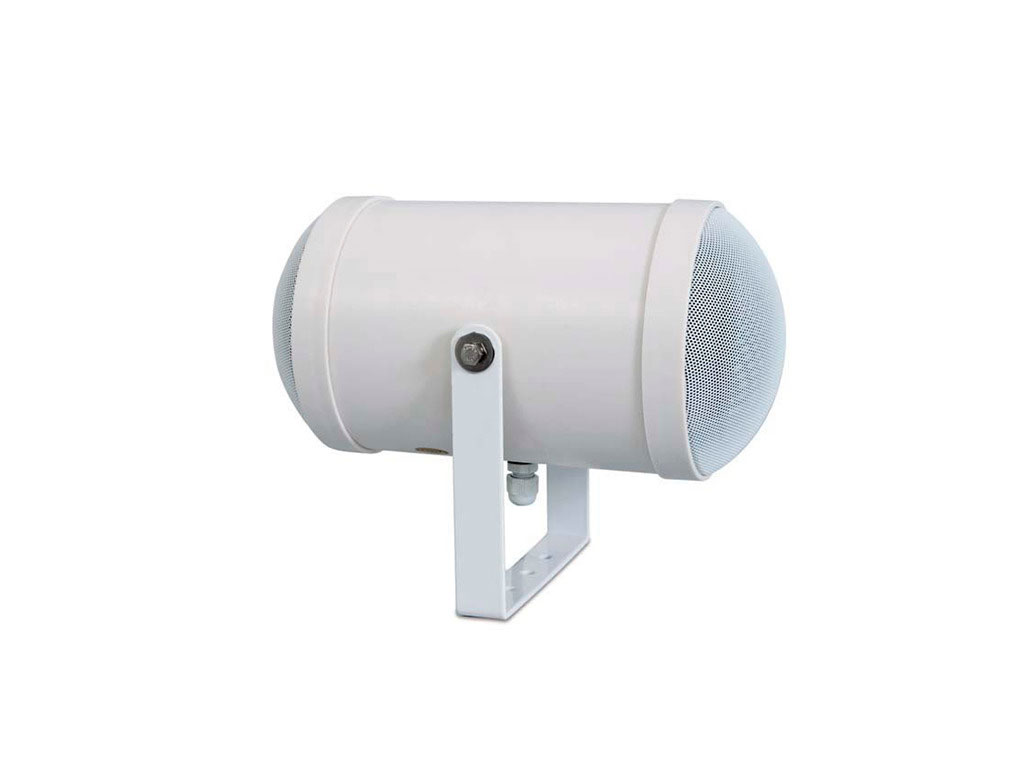

CS 602 is a sound projector built in ABS plastic housing, which incorporates a 5'' 2-speaker loudspeaker. Thanks to its high impedance transformer, it is suitable for 100 Volt line installations, admitting a maximum power of 12 W.
Features
- Circular shaped projector.
- For 70/100 V Line installations.
- ABS high resistance plastic.
- U bracket included.
| Type | Bi-directional passive sound projector |
| L100V Power | 12 W / 6 W / 3 W |
| L70V Power | 6 W / 3 W / 1.5 W |
| Transducers | 2 x Woofer 5" |
| Sensitivity (1W @ 1m) | 91 dB |
| SPL Max | 100 dB |
| Frequency Range | 130 Hz -15 KHz |
| Enclosure material | ABS |
| Grill | Aluminium |
| Inserts / Rigging | U bracket included |
| Colour | White (RAL 9016) |
| IP Protection | IP55 |
| Dimensions | 138 x 138 x 250 mm |
| Weight | 1.6 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.25 | 0.14 | 0.14 | 1.60 |
| Box | 0.19 | 0.16 | 0.16 | 1.96 |
| Master Carton | 0.60 | 0.49 | 0.19 | 12.66 |
Manual | CS 602 - Manual | Download |
