To be discontinued

CLUB MASTER 5

52CLU005

8-channel mixer. Input selector. Xfader

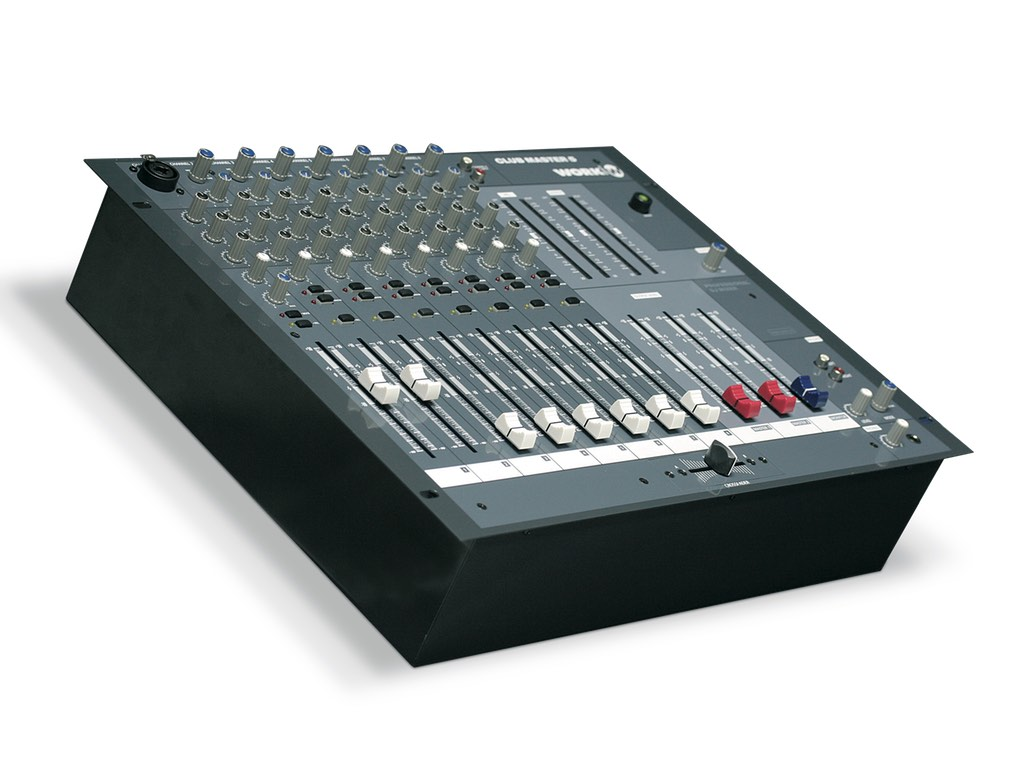

Designed in a 19" rack enclosure, this professional mixer stands up for its 8 input channels and many sources available (Mic/Phono/Line/Aux). Thanks to the direct input on front panel, users can connect an external audio player without having to modify rear connections. This solution provides maximum versatility for fixed installations like hotel ballrooms that organize different kind of events.

For a precise control of audio mix, each channel features 3 band equalizer, 100 mm faders and individual gain. Additionaly, any performance can be recorded with or without Priority Mic channel.

The powerful mixer CLUBMASTER 5 is suitable for any kind of events thanks to its technical elements and functionalities. Its channels with selection up to 4 different signal sources,exclusive input for DJ micro with TALKOVER function and crossfader easy assignation function, defines a product with huge outputs.


Number of input channels: 1 mono + 7 stereo.
Type of input channels: 1 Mic (with talkover), 7 Mic/Phono/Aux/Line.
MIC inputs impedance/sensitivity: 10 kohm, 20 mV / -30 dBu.
LINE/AUX inputs impedance/sensitivity: 10 kohm, 190 mV / -12 dBu.
PHONO inputs impedance/sensitivity: 10 kohm, 40 mV / -24 dBu.
Tone Control:
Bass Bandwidth/Gain: 80 Hz, -15 dB to +15 dB.
Middle Bandwidth/Gain: 2 kHz, -15 dB to +15 dB.
Treble Bandwidth/Gain: 12 kHz, -15 dB to +15 dB.
Frequency Response: 20 Hz - 20 kHz.
THD+N: 75 dB.
Type of output: 2 x Dual Master, 1x Monitor, Record, Phones.
Master 1-2 Max. level: 20 dB.
Rec output Max. level: 20 dB.
Phones output min. load: 20 dB @ 32 ohm.
Monitor output max. level: 20 dB.

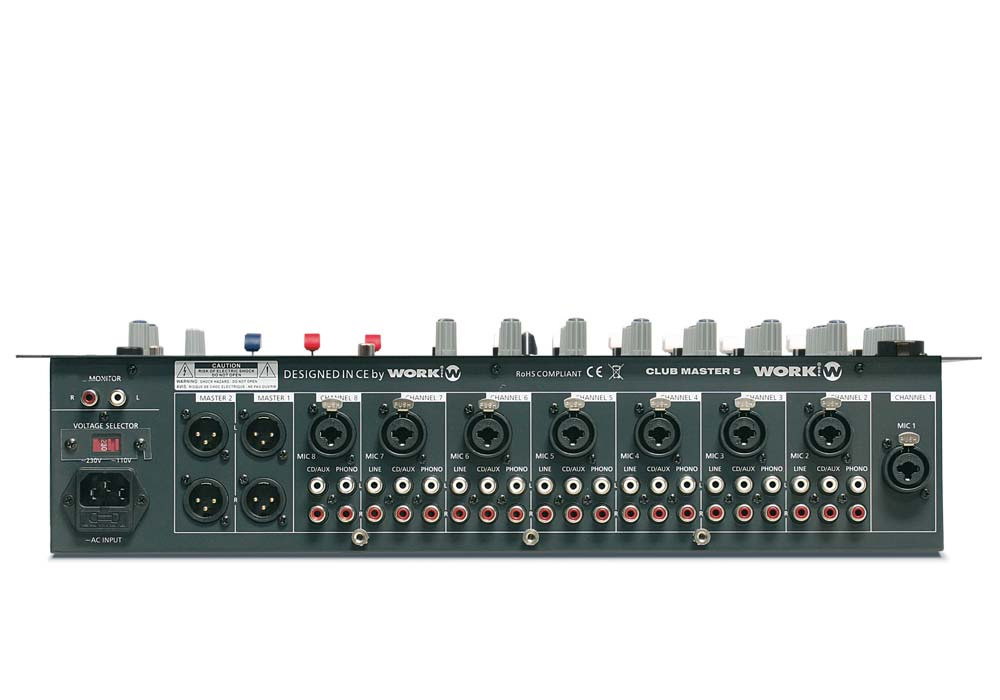

Rear panel connectors/controls: 20 x Dual RCA (inputs), 8 x Combo XLR3 - ¼" Jack (Inputs), 4 x XLR3 (Master outputs), 1 x Dual RCA (Monitor Output), (Record), 1 x IEC (Main supply).

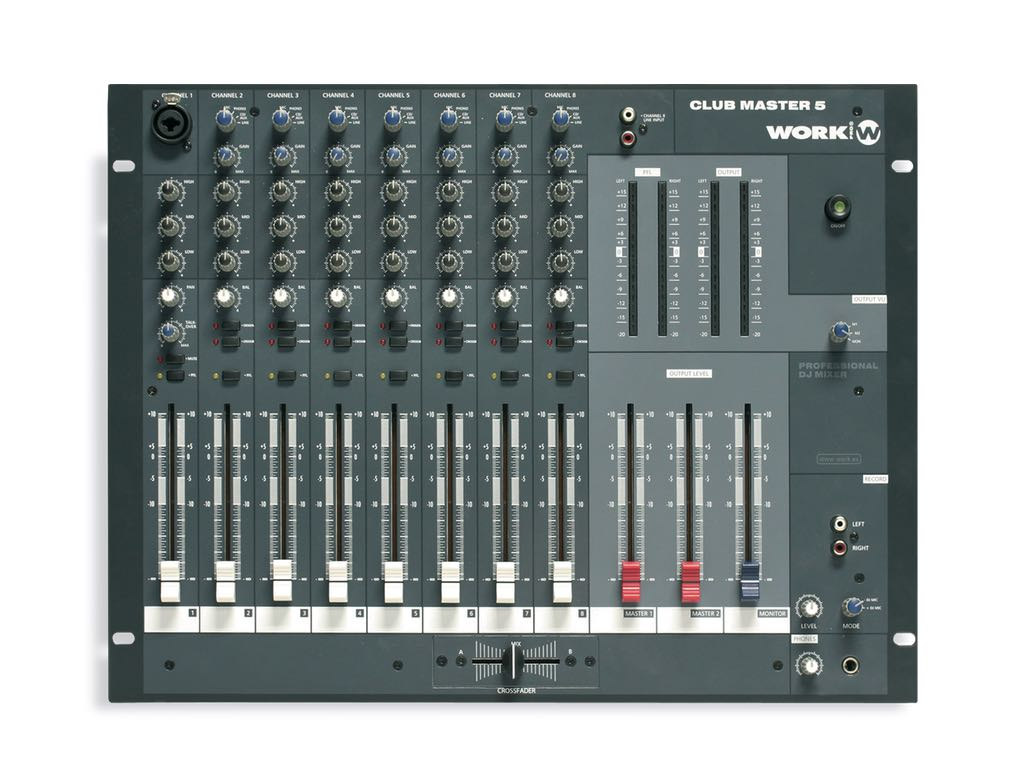

Front panel connectors: 1 x COMBO XLR3-¼" Jack (Input), 1 x Dual RCA (Input), 1 x Dual RCA (Record output), ¼" Jack (Phones output).
Main supply: AC 115/230 V 50/60 Hz.
Power consumption: 20 W.
Dimensions (WxHxD): 483 x 370 x 125 mm.
Weight: 7 kg.


Mixer 8 input channels:
1 dedicated MIC input with talk over function
7 stereo channels with 4 selectable input sources (Mic/Phono/Line/Aux).

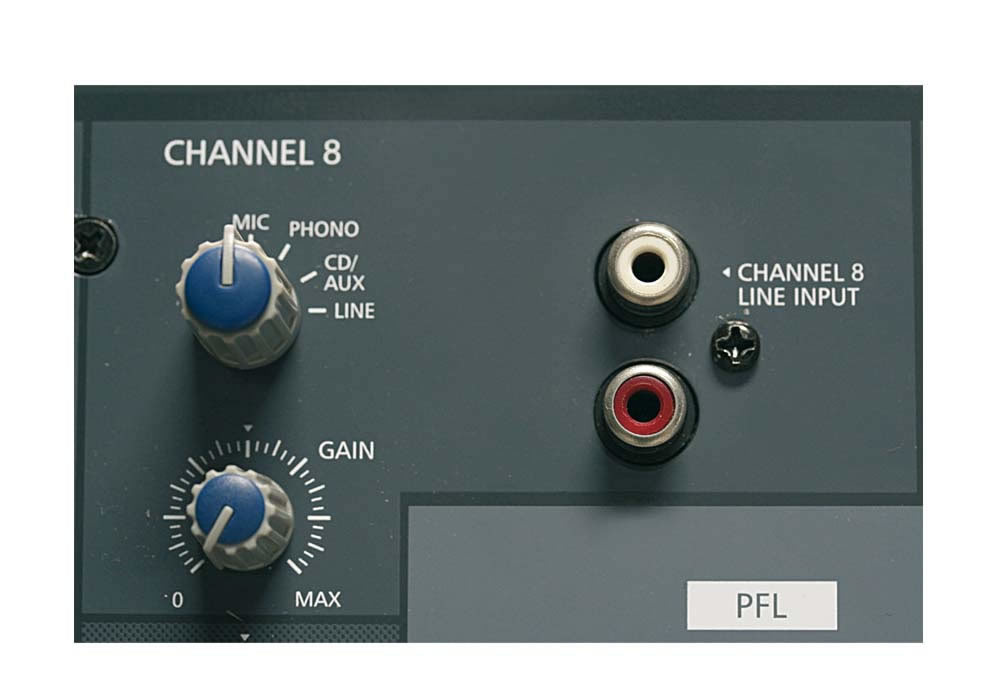

Channel 8 front input to use an MP3 player.
Format 8 HU rack 19 ".

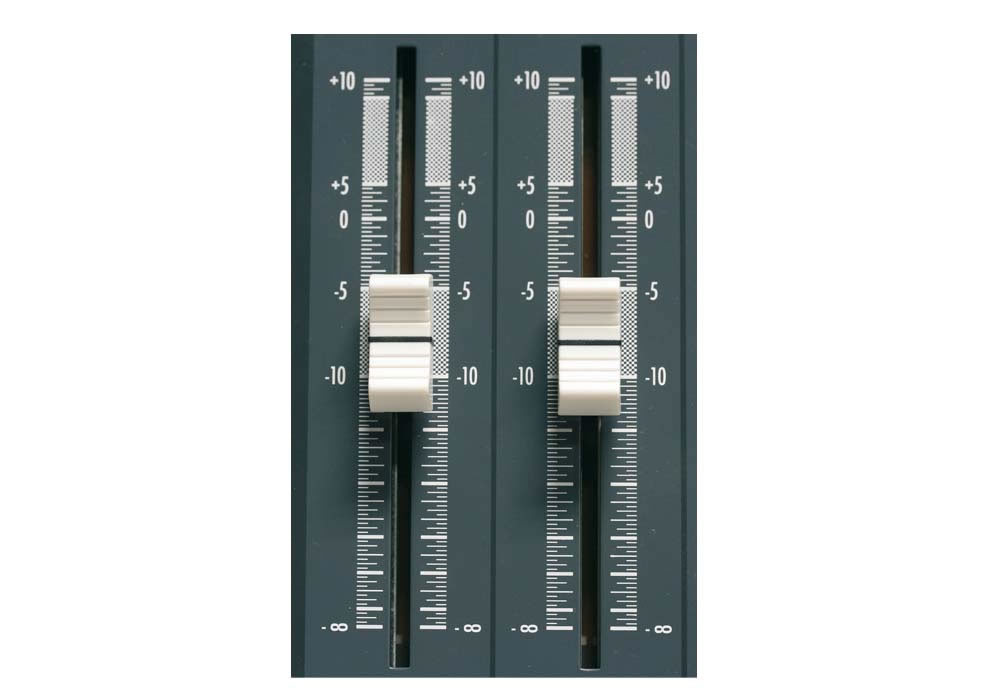

Slide Potentiometers 100 mm.
2 independent stereo Master outputs..
PFL indicator.
Crossfader function over all channels with selectable LED between MASTER and MONITOR.
Rec output for performance recording (with or without priority Mic).
Headphone output with level control.
REC and MONITOR output.

  Manual
Download
