Audio Installation

C PRO 6

82CPR006
8Ohm
L100V

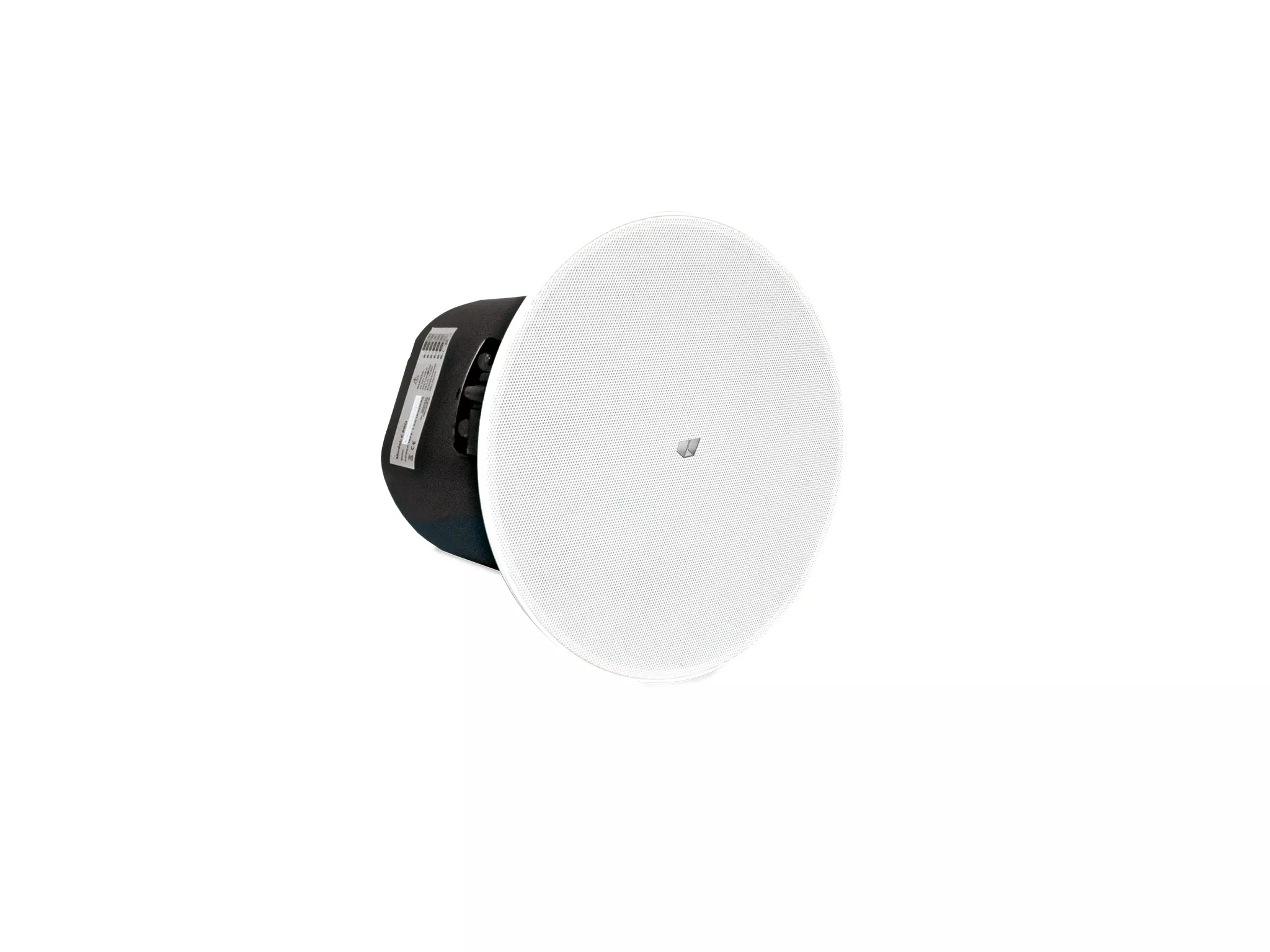

Ceiling speaker

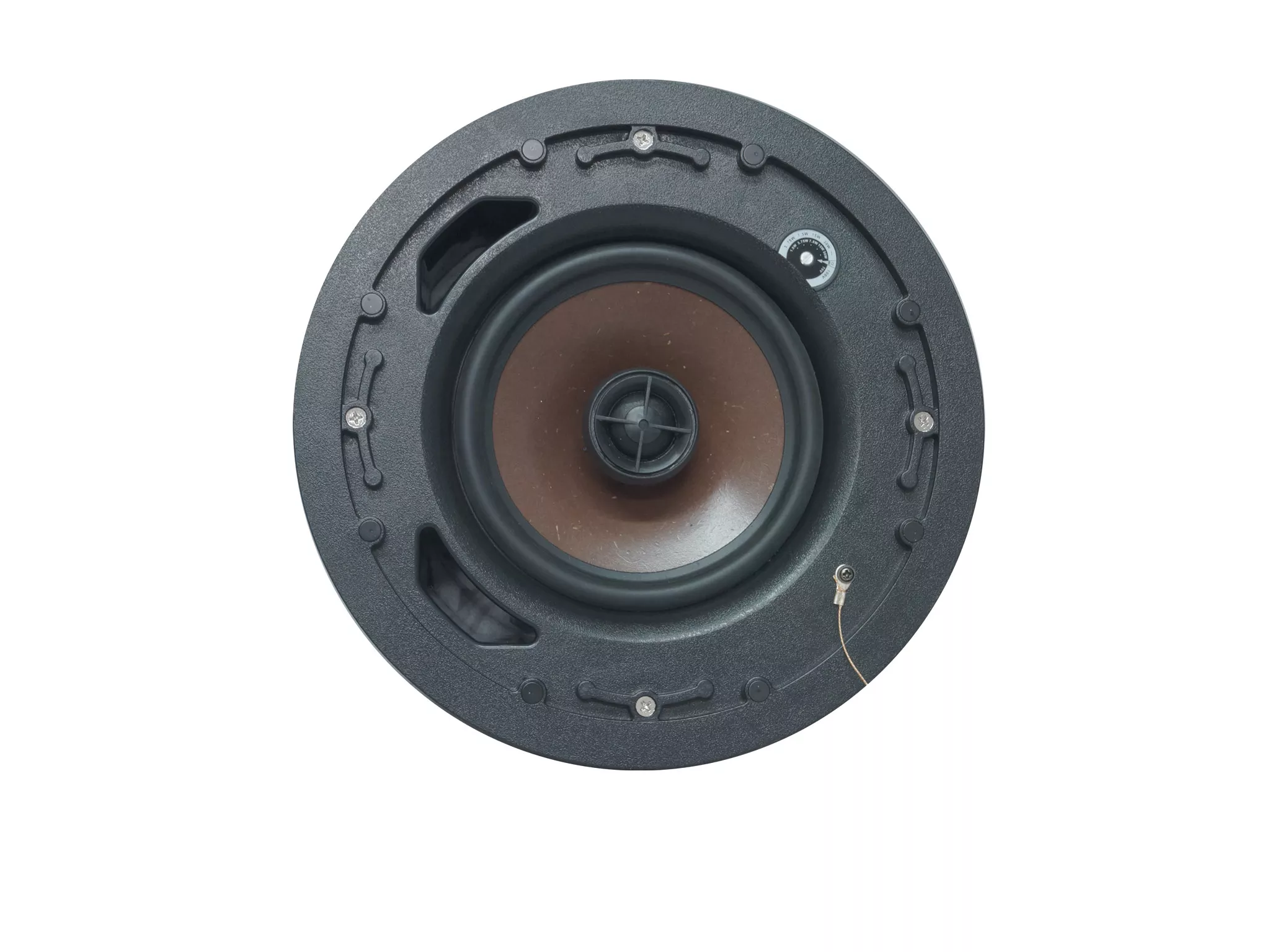

C PRO 6 is a two-way ceiling loudspeaker suitable for 70/100 V line or low impedance installations. It is composed of a 6.5 "loudspeaker and a 1" tweeter. It has a grid with magnets, facilitating its assembly. In addition, the cover of this can be painted, thus facilitating integration into any space. Once installed, the tweeter can be rotated to control directionality to enhance the audio experience.

Features

  • Rotatable tweeter.
  • Grille with magnets.
  • Low impedance and 70/100 V line.
  • Paintable grid cover.
TypePassive. 2 ways.
Low Impedance Power30 W @ 8 Ohm
L100V Power30 W (333 Ohm) / 15 W (666 Ohm) / 7.5 W (1k3 Ohm) / 3.75 W (2k6 Ohm)
L70V Power15 W (666 Ohm) / 7.5 W (1k3 Ohm) / 3.75 W (2k6 Ohm) / 1.5 W (5k2 Ohm)
LF TransducerWoofer 6.5"
HF TransducerTweeter 1"
Frequency Range60 Hz - 20 KHz
Coverage90º x 50º
Sensitivity88 dB
Max SPL102 dB
Mounting diameter267 mm
Mounting depth162 mm

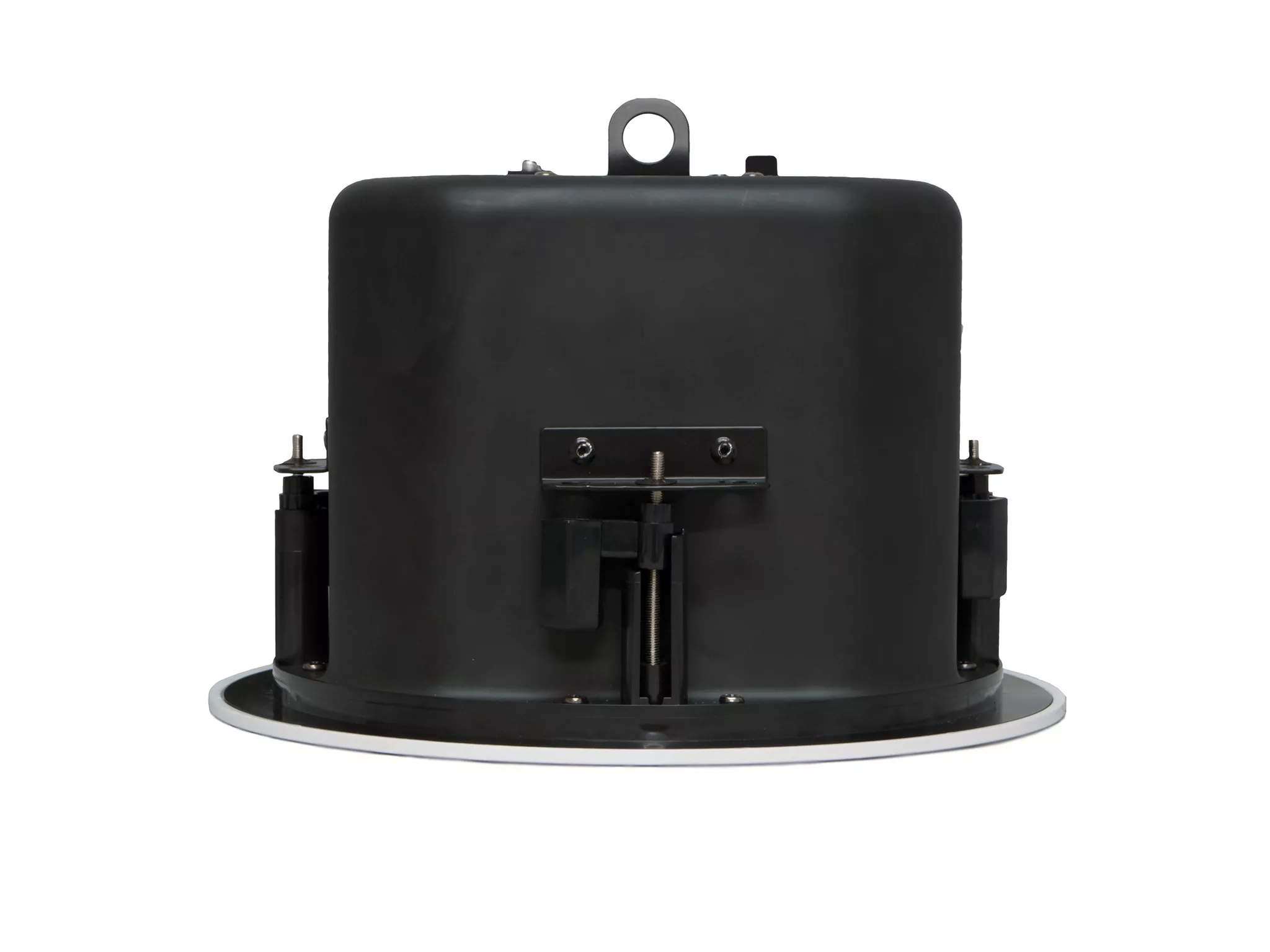

Fixation3 rotating pivots
MaterialEnclosure: ABS plastic; Grille: metal
ColourWhite (RAL9016)
DimensionsØ267 x 162 mm
Weight2.7 Kg
Length(m)Width(m)Height(m)Weight(kg)
Product0.270.270.162.70
Box0.320.320.254.44
Master Carton0.650.330.5319.08

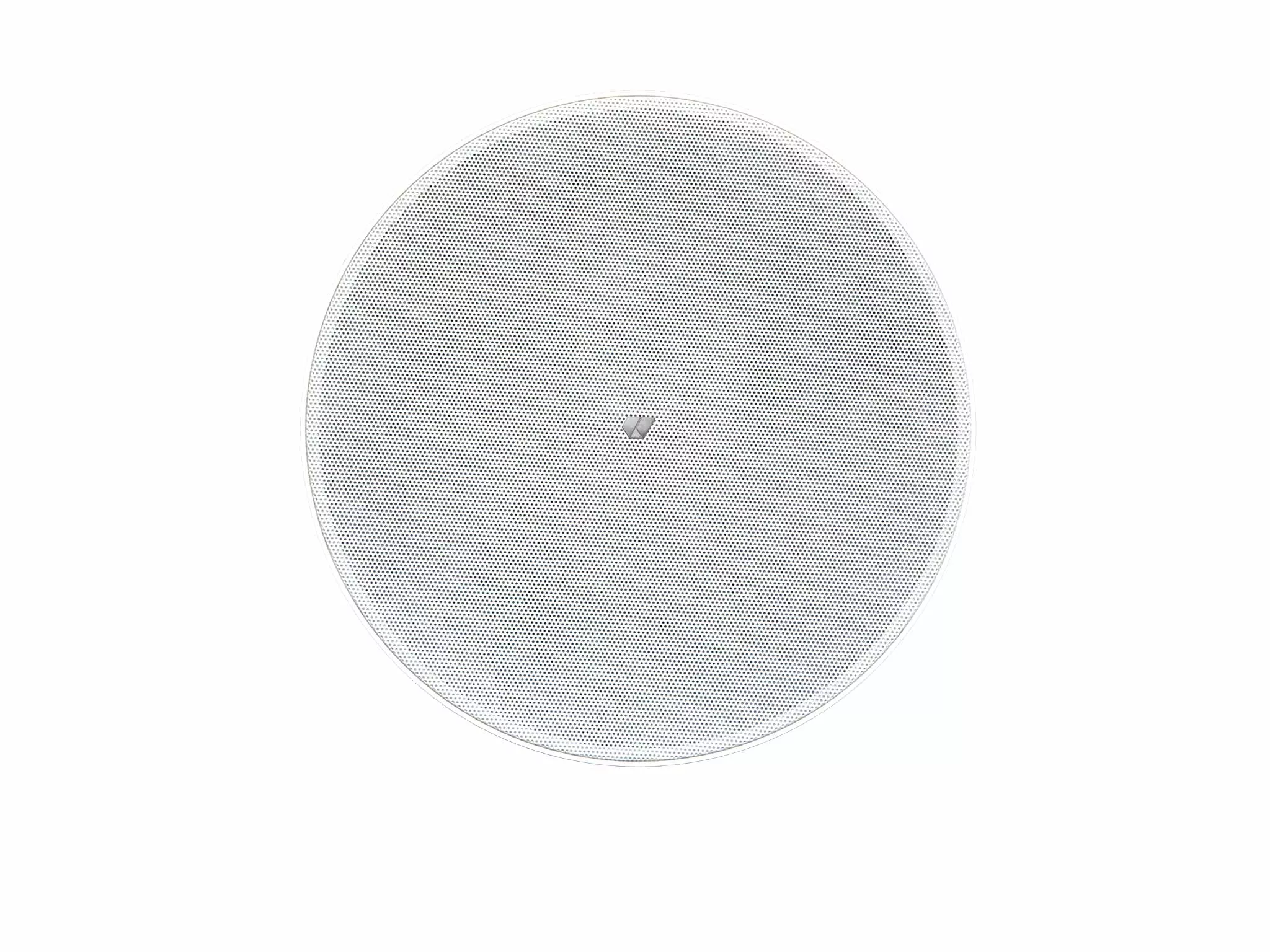

Magnetic and paintable grille.
Once installed, it is possible to swivel the tweeter to control the directionality in order to enhance the audio experience.
