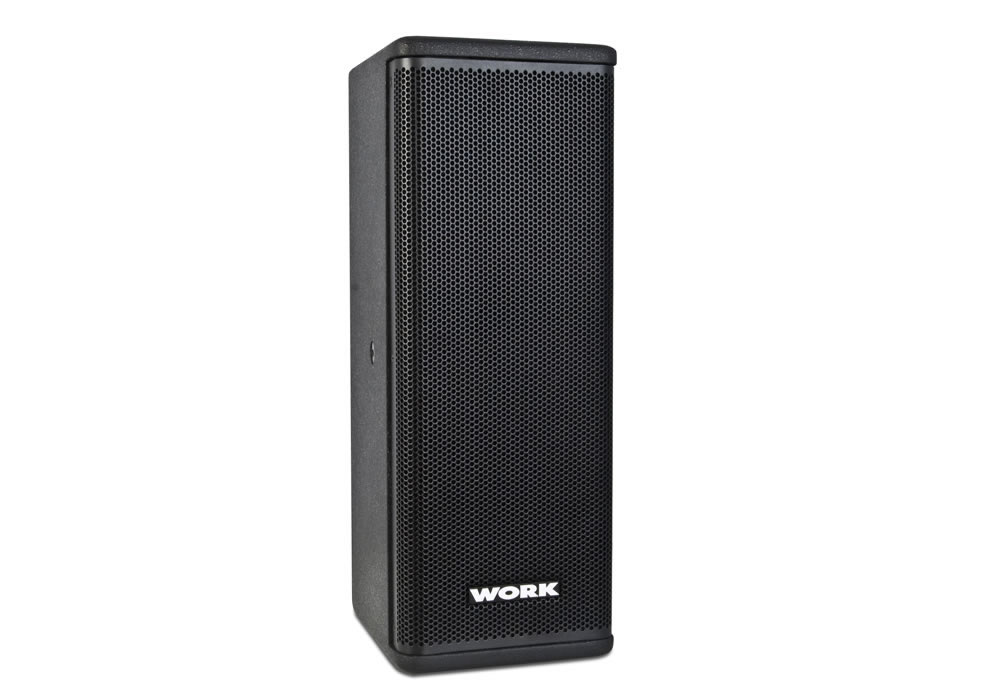

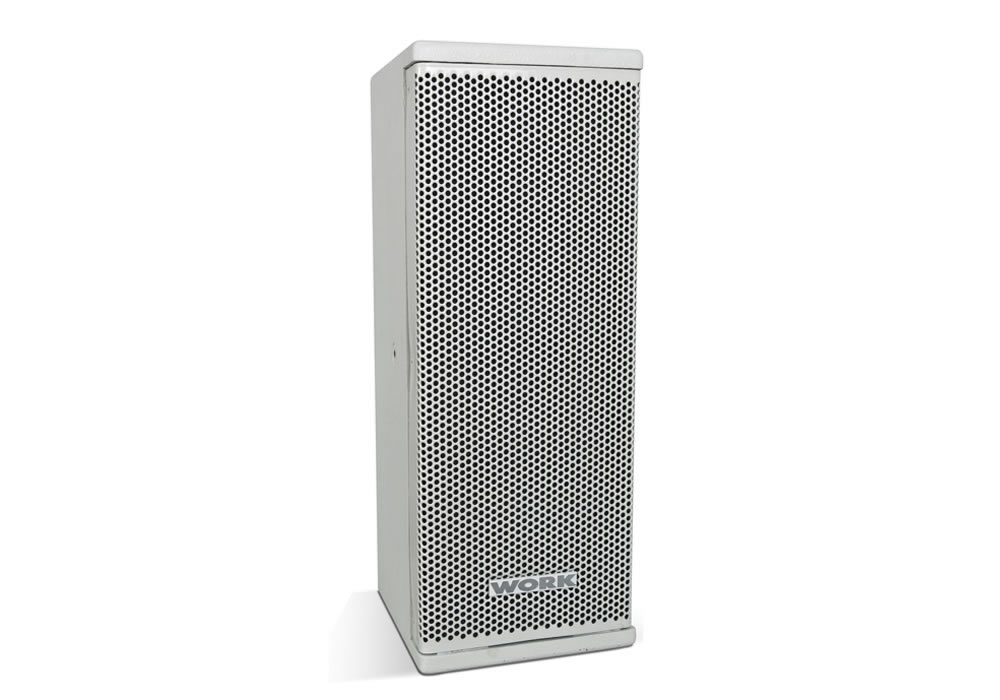

Audio Installation

ARQ 25

50ARQ02650ARQ025
16Ohm
L100V

20/40W Line 100V-240W 16 Ohm - 2x5'' + 1'' Driver. Wood


Features

  • Suitable for low impedance or 70/100 volts line installations
Type: Two way passive loudspeaker.
Elements: 2 x 5 ¼" woofer + 1" TWT.
Power taps (100 V Line): 40 W (250 ohm) / 20 W (500 ohm).
Power taps (70 V Line): 20 W (245 ohm) / 10 W (490 ohm).
Power program (low impedance): 240W (16 Ohm).
Input connectors: Terminals (screw).
Sensitivity: 87 dB (1 W @ 1 m).
Max SPL:. 108 dB.
Frequency response: 95 Hz - 20 kHz.
Dispersion (HxV): 60° x 60°.
Material (housing): Plywood.
Material (grille): Metal.
Dimensions (WxHxD): 450 x 177.5 x 202 mm.
Weight: 7.2 kg.
Length(m)Width(m)Height(m)Weight(kg)
Product0.200.180.457.20
Box0.280.250.539.82
  Manual
Download
  Others
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related Products

  • MKS 1400
    Speaker cable. Black. 100m roll
  • PA 120 USB/R
    Amplifier with mixer / player. 120 W @ 8 Ohm, L100V. 2 Mic, 1 Mic / Line, 1 Aux, 1 CD, 1 Tel.
  • STA 5H
    Horizontal handle ARQ 25
  • STA 5V
    Vertical handle ARQ 25

Alternative Products

  • ARQ 18
    Passive loudspeaker. 240 W prog @ 8 Ohm, 20/40W L100V. 8'' Woofer + 1'' Driver.
  • NEO 8
    Passive loudspeaker 70 W @ 8 Ohm, 32 W @ L100V. 8'' Woofer + 1'' Tweeter. Sold in pairs.
  • WND 6
    Passive loudspeaker. 400 W prog @ 8 Ohm. 2 x 6.5'' Woofer + 1.35'' Driver.

Accesories

  • STA 5H
    Horizontal handle ARQ 25
  • STA 5V
    Vertical handle ARQ 25

Spareparts

  • Membrane ARQ 25
