Professional Audio

ARION 5

50ARI005
DSP
AMP

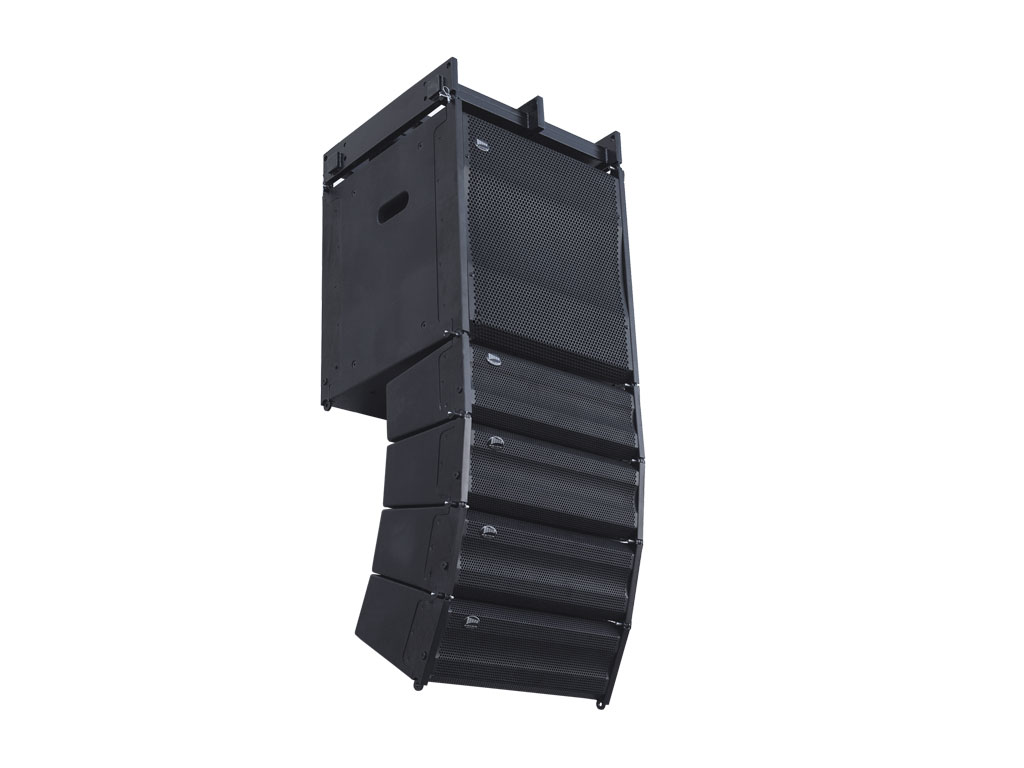

Self-powered subwoofer + 4 satellites + rigging frame. Amplifier 1000+650+150W

ARION 5 is a self-powered three-way line array. Each top unit, SL 25, features two 5.25'' transducers in a bass reflex enclosure. The high frenquencies are reproduced by a 2.2'' diameter ring radiator driver featuring a polymer membrane. The bass enclosure uses one 15'' transducer, 3.5'' voicecoil, to reproduce the very low end.

The compression driver radiates over the new VI-5 waveguide wich provides a perfect vertical coupling between the high frequencies of the different SL 25 units.

The digital signal processing has been carefully designed to provide excellent uniformity of the horizontal coverage, keeping the frequency balance unchanged at the listening angles.

ARION 5, comprised of four units SL 25 and one SL 115 SA, features powerful digital signal processing, which provides the filtering and the necessary corrections of magnitude and phase to the transducers in order to obtain a faithful sound. From the backside of the subwoofer SL 115 SA you can choose between three presets: Normal, Voice and Loudness, and also adjust the balance between the tops and the subwoofer via two knobs labeled Bass and Treble.

The power is provided by one Class D amplifier with 1000W peak for the Low frequencies, 650W peak for the Mid frequencies and 150W peak for the Highs, which incorporate thermal and overload protections. Independent RMS and peak limiters are used on each way.


Videos


Interview  J La Roda. ISE Amsterdam 2020


LF Transducers
1x15'', 3.5'' voicecoil
MF Transducers
2x5'', 1.46'' voicecoil
HF Transducers
1x1.75'' voicecoil, 2.2'' ring radiator
LF Amplifier
Class-D, 1000Wpeak
MF Amplifier
Class-D, 650Wpeak
HF Amplifier
Class-D, 150Wpeak
Input Impedance
10kOhm
Input Sensitivity
+4dBu
Frequency Range (Full Space)
(-10dB): 100Hz-18kHz
(-6dB): 107Hz-17kHz
Max Peak SPL at 1m
122dB
Horizontal coverage (-6dB)
140°
EQ Modes
Normal, Voice & Loudness
Balance
Treble & Bass
Limiters
RMS & Peak
Amplifier Protections
Thermal & Overload
Enclosure
Birch plywood
Finish
Polyurethane Paint
Colour
Black
Connectors
Audio In: Female XLR & Stereo RCA
Audio Out: Male XLR
Power Input: IEC
Satellite Output: Speakon NL4
AC Power Requirements
115Vac/230Vac, 50Hz/60Hz
Current Draw (1/3 Power@230v)
2A
Shut Down Voltage
200 to 240 Volts, 110 to 130 Volts
Shut Down Temperature
85°C
Dimensions SL 25 (HxWxD)
165x490x251 mm, 6.5x19.3x9.9 in
Dimensions SL 115 SA (HxWxD)
521x490x492 mm, 20.5x19.3x19.4 in
Net Weight SL 25
9.2kg, 20.3 lb
Net Weight SL 115 SA
33.5kg, 73.9 lb
Included Accessories
Rigging frame, speaker link cables

  • Self-powered three-way line array.
  • Corporate events & mid-size installations.
  • 140° horizontal coverage.
  • 1000Wpeak LF Class D amplifier.
  • 650Wpeak MF Class D amplifier.
  • 150Wpeak HF Class D amplifier.
  • Three presets available.
  Manual
Download
  Datasheet
Download
  Software
Download
