To be discontinued

ARC SUB 12

50ARC012

Self-powered subwoofer. 12'' woofer 12''. 200W. Input: full range and LFE

ARC SUB 12 is a self-powered subwoofer which integrates a 200W power amplifier and a 12'' high performance woofer.

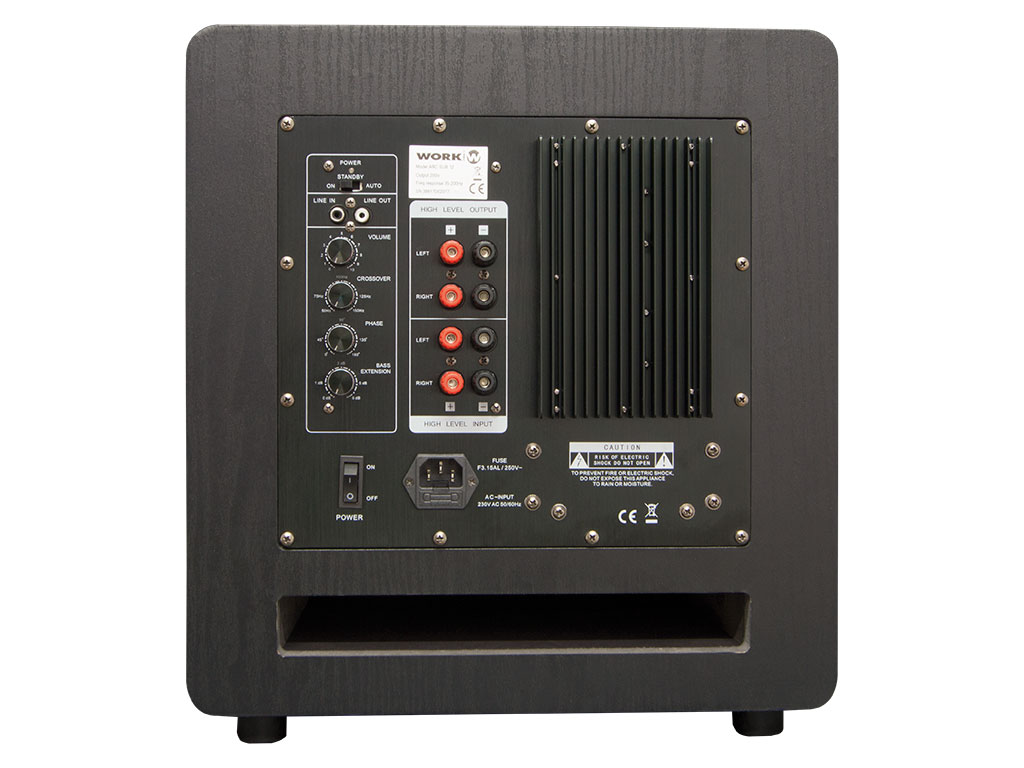

The amplifier features several controls, allowing to configure parameters such as output gain, bass enhancer, crossover frequency or phase inverting. The built-in Standby function offers the possibility to shutdown the amplifier in absence of audio input.

ARC SUB 12 incorporates 2 input types: full-range LINE mono input and stereo High Level input for direct connection between external amplifiers and satellites system.

Its robust design, elegant finish (made of high density wood) and shape are very suitable in reinforcement appliances like conference rooms, schools or home cinema installations.


Transducer
 12'' woofer
Amplifier (Power output)
 200 W
Sensitivity
 Line: 500 mV
High Level: 8V
Frequency response
 35 Hz - 200 Hz
Crossover range
 Between 50 Hz - 150 Hz (selectable)
Bass enhancer
 Up to +6 dB gain (50 Hz)
Phase inverting
 From 0° to 180° (selectable)
Connections
 RCA: full-range or mono subwoofer LINE input & output
Binding-post: Stereo High Level inputs and outputs
Main Supply
 230V Ac - 50/60 Hz
Consumption
 240 W
Dimensions (WxHxD)
 380x400x434 (mm)
Weight
 24.2 Kg
- 200W self-powered subwoofer.
- Suitable for bass reinforcement appliances.
- Standby function (Auto power on when receiving audio signal).
- Full range and High Level inputs for different installation requirements.
- Made of high density wood.
- Several configuration parameters.
