Audio Installation
ARC SUB 10 MKII
50ARC011
AMP
Amplified subwoofer. 150 W.

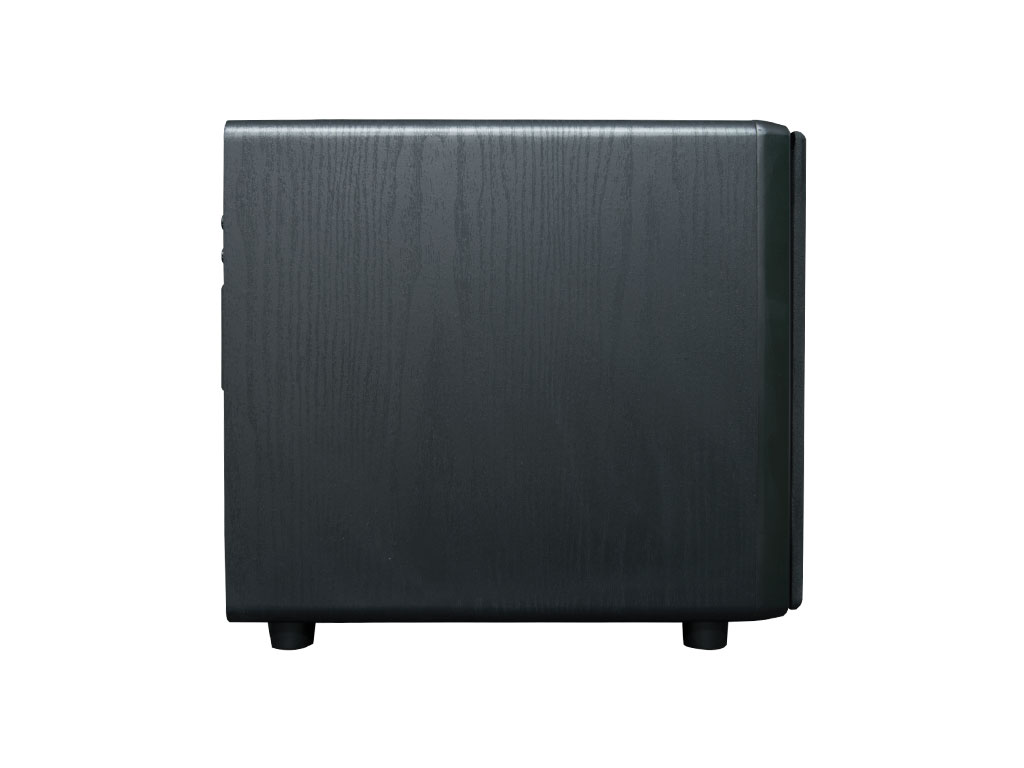

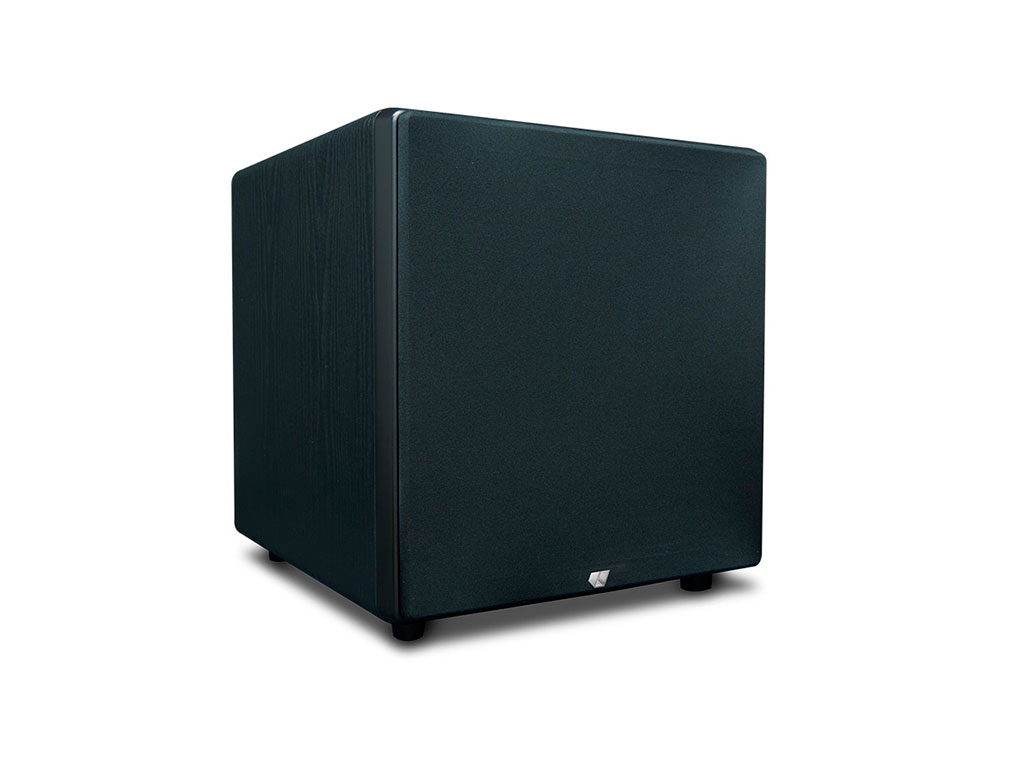

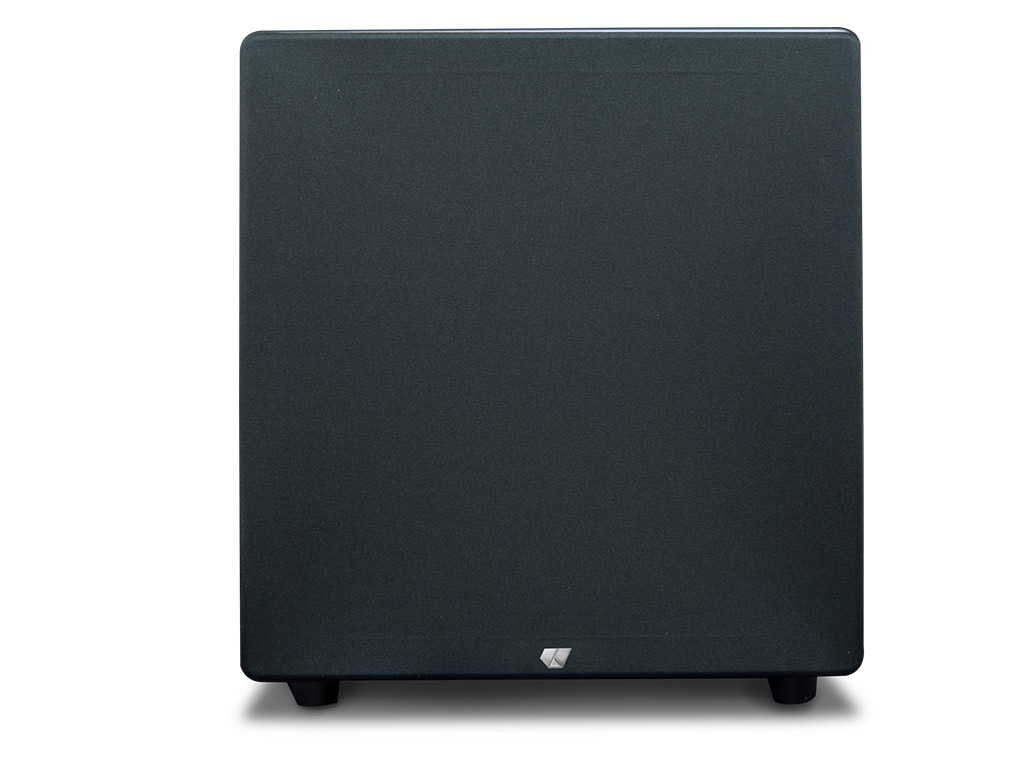

ARC SUB 10 MKII is a self-powered subwoofer integrating a 150 W power amplifier and a high-performance 10" woofer. The amplifier is equipped with several controls, allowing you to configure parameters such as output gain, crossover frequency or phase inversion. ARC SUB 10 MKII features 2 input types: LINE full-range input (RCA L-R and stereo mini-jack) and High Level stereo input for direct connection between external amplifiers and the satellite system. Their robust design, elegant finish (in high-density wood) and their shape, they are very suitable in reinforcement systems such as conference rooms, schools or home cinema installations.
Features
- Made of MDF wood.
- Full-range and high-level inputs.
| Type | Amplified |
| Transducer | Woofer 10" |
| Power | 150 W @ 4 Ohm |
| Sensitivity | Line: 500 mV, High Level: 8V |
| Frequency Response | 50 Hz - 200 Hz |
| Crossover | 50 Hz - 150 Hz (selectable) |

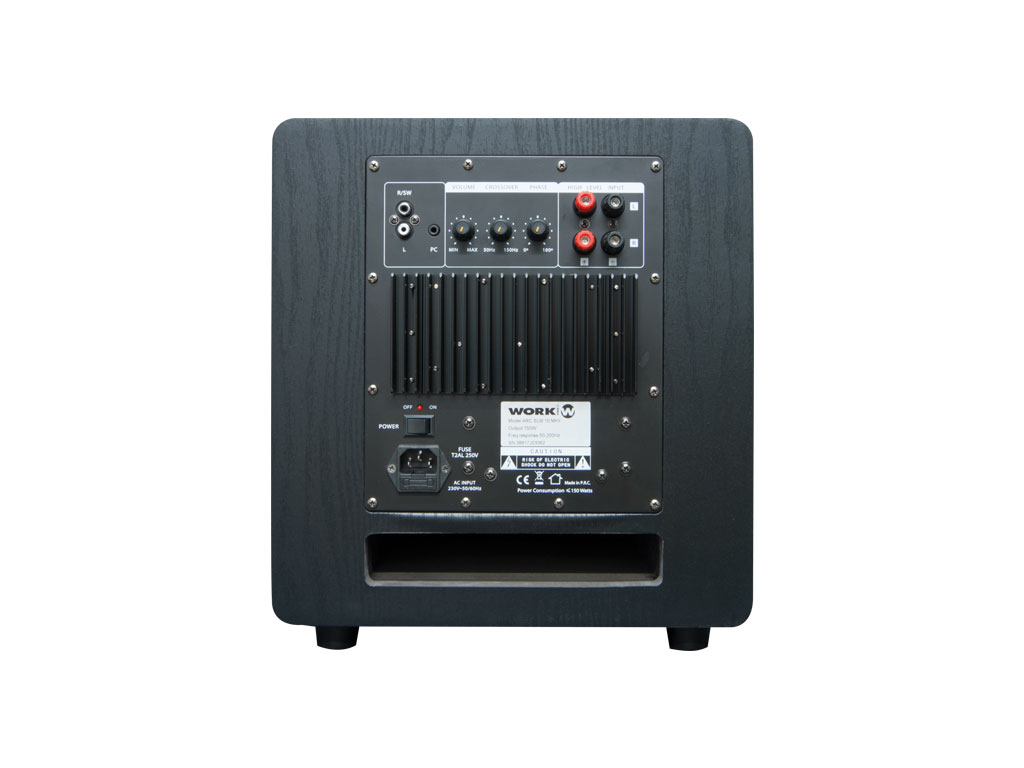

| Connections | RCA: full-range or mono (L,R) + Minijack: stereo LINE level; Banana: stereo High Level Inputs |
| Power supply | 230V AC - 50/60 Hz |
| Dimensions | 345 x 325 x 394 mm |
| Weight | 16.5 Kg |
| Length(m) | Width(m) | Height(m) | Weight(kg) | |
|---|---|---|---|---|
| Product | 0.39 | 0.35 | 0.33 | 16.50 |
| Box | 0.45 | 0.45 | 0.51 | 16.50 |
- 150W self-powered subwoofer.
- Suitable for bass reinforcement appliances.
- Full range and High Level inputs for different installation requirements.
- Made of high density wood.
- Several configuration parameters.
Manual | ARC SUB 10 MKII - USER MANUAL v1.0 |  | Download |
