A 104

60WPA104

4 channels dimmer

A 104 is a 4 channels programmer with 1,5 A each channel.

Include 17 factory preset programs that can be played in 3 modes: Manual, Audio and Auto.In Auto mode A 104 creates 4 scenes with 4 factory preset programs each one and with configurable speed.

In Audio mode, the unit include a microphone to synchronize sound peaks and steps.

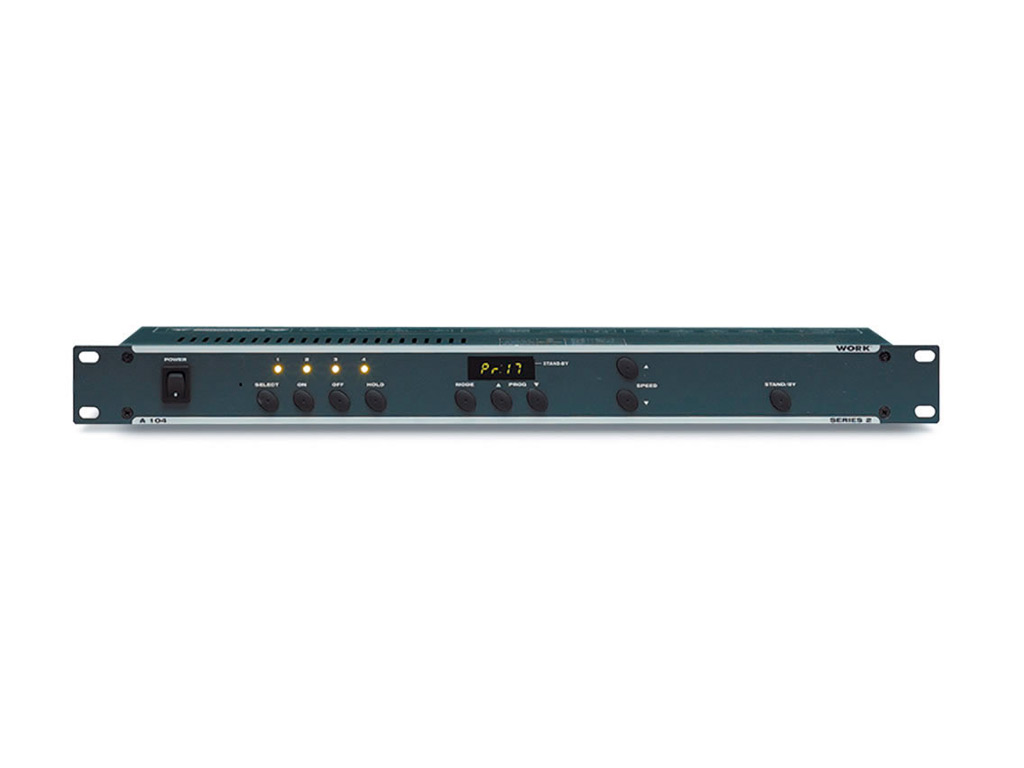

To improve the visualization , the front display and LED indicators show programs and sequence activity.

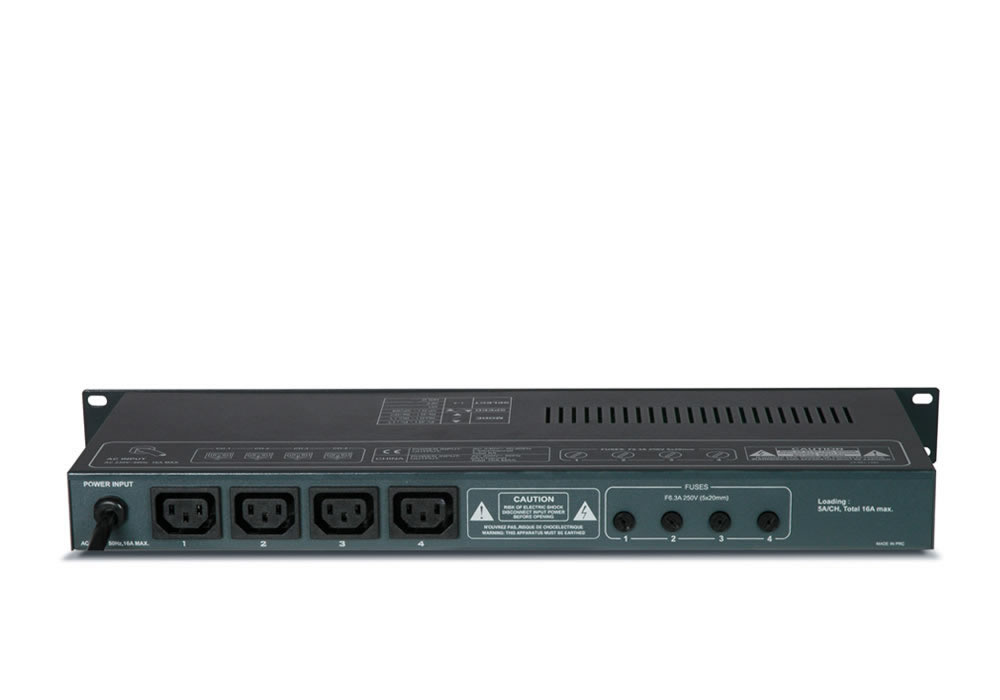

Connections4 x IEC
Length(m)Width(m)Height(m)Weight(kg)
Product0.160.480.052.20
Box56.0023.008.002.78
4 channels programmer with 1,5 A each channel.
17 factory preset programs.
Mode: manual/Audio/Auto.
Functions: Hold/Off each channel.
Main power supply : 230 V AC 50 Hz.
Max. Total Load: 16 A.
Dimensions (W x H x D): 483 x 44 x 162 mm.
Weight: 2,2 Kg.
  Manual
Download

So far, there are no questions related to this product.


Register to be able to ask a question about this product.

I accept terms and conditions regarding the treatment of my data.Make the question

Related Products

  • A 54
    4 channel chaser
  • LPX 12 DMX
    DMX drivers/ lighting controller with DIMMER
  • MINI 4
    4 channels chaser
  • PROLIGHT 844P
    4 channels chaser + 4x driver (5A per channel)
